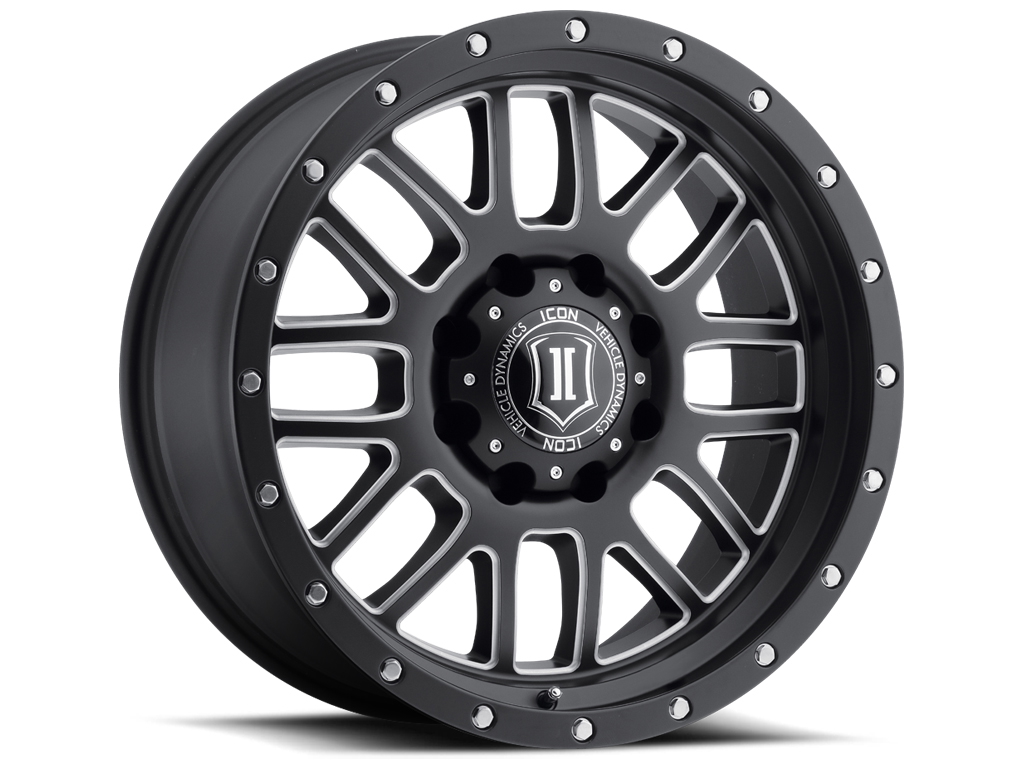

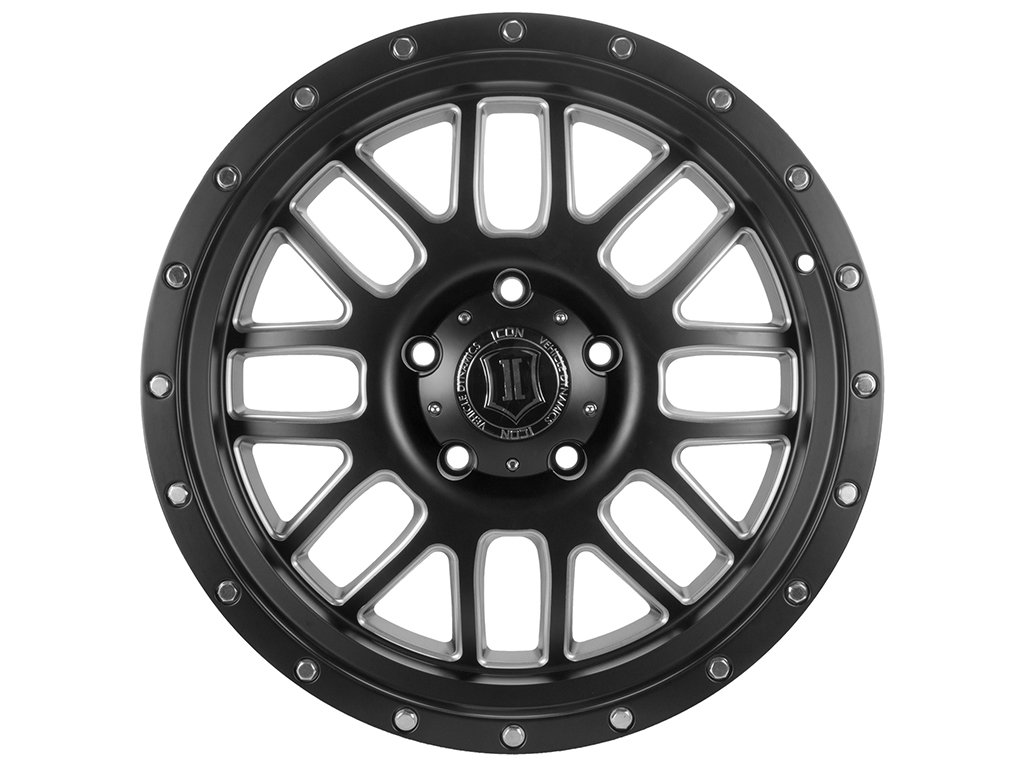

ICON Alloys Alpha, Satin Black, Milled Windows, 20x9 / 6x135, 16mm OS, 5.625" BS

Product Details

A potent blend of on-road looks and off-road capability, the ALPHA is aimed to increase both the form and function of your Jeep, truck, or SUV. Staying true to the ICON Alloys approach, the ALPHA has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

Application-specific dimensions optimize vehicle dynamics and tire clearance
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Aluminum alloy construction provides strength properties that are well suited for off-road use

Technical Notes

TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
UPC	00840103412986
Material	Aluminum
Finish	Machined
Color	Satin Black w/ Milled Windows
Construction	Cast
Backspacing	5.25
Bolt Pattern	6 X 135
Center Cap Included	Yes
Diameter	20
Inside Diameter	87.1
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	2500
Offset	16
Positive Offset	16
TPMS Compatible	yes
Width	9
Width	22.00 in
Length	22.00 in
Depth	11.00 in
Weight	38.0000 lb
