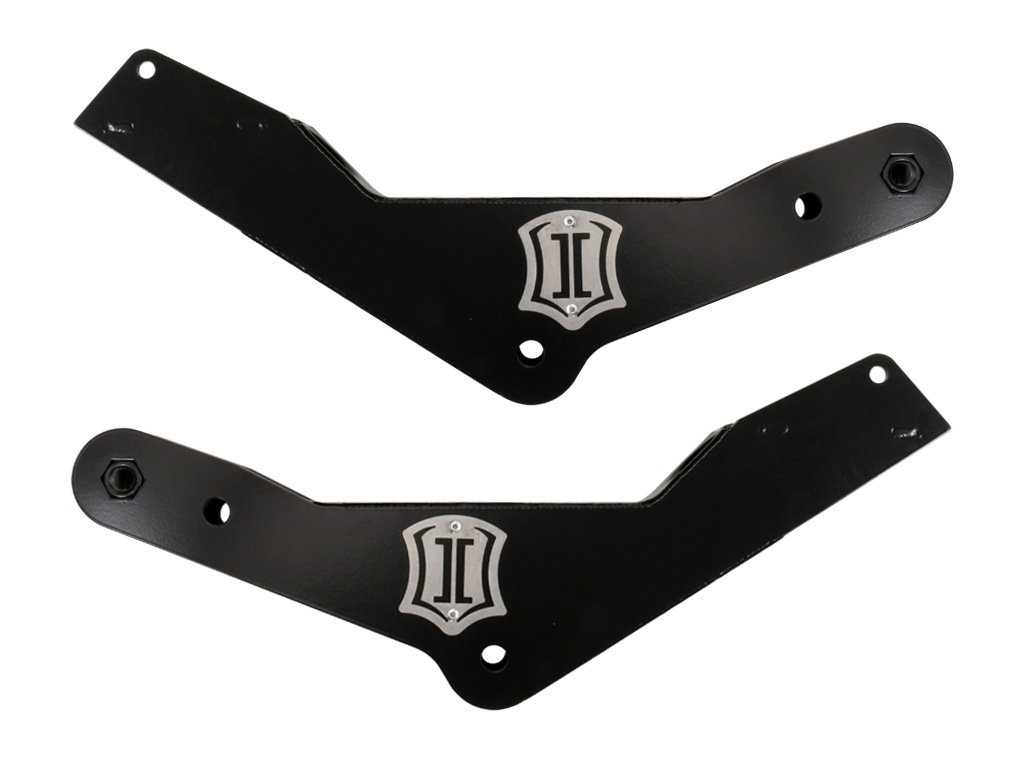

ICON 2011-2016 Ford F-250/F-350 Super Duty 4WD, 4 Link Frame Bracket Kit
- ICON Vehicle Dynamics
- SKU:164503
$519.88$545.87
4% off
Low stock: 2 left
Recommended add-ons
ICON 2011-2016 Ford F-250/F-350 Super Duty 4WD, 4 Link Frame Bracket Kit
$519.88$545.87
4% off
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
The 4-link bracket kit is an essential component of the ICON 2011-2016 Ford Super Duty 4-Link Conversion System. This 4-Link system not only gives your Ford Super Duty an aggressive look, it enhances the articulation of the front suspension by eliminating bushing bind and improves handling of the truck by maintaining consistent caster angles through the entirety of the front suspension travel range. The large, deflective radius arm bushings are replaced with competition grade, PTFE lined spherical bearings in each link. This harder surface minimizes deflection to further increase the overall handling characteristics for maximum predictability and suspension responsiveness. Additionally, the ICON double adjusters in the lower links allows tuning of caster angle while the links are installed on the vehicle, easing the front-end alignment process.
- 4-Link system maintains consistent caster angles through suspension travel for superior handling characteristics
- Improves front end articulation and overall drivability
- Allows on-vehicle caster adjustment via ICON double adjusters in lower links
- Brackets are fabricated from CNC laser cut and brake-formed steel plate
- Corrosion resistant semi-gloss black powder coat finish
- 100% Bolt-on system - no cutting or welding necessary for install
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | ICON Vehicle Dynamics |
| UPC | 840103408811 |
| Proxy Number | 164503 |
| Shipping Width | 8.00 in |
| Shipping Length | 26.00 in |
| Shipping Depth | 10.00 in |
| Shipping Weight | 42.0000 LB |
Technical Notes
- TECH NOTE: Only fits 2011-2016 Ford Super Duty 4WD models
- TECH NOTE: Compatible with 2.5"-7" of front lift
- TECH NOTE: Requires ICON 4-Link Arms Part numbers 164501 & 164502 to complete installation.
