59730E-CB

Product Details

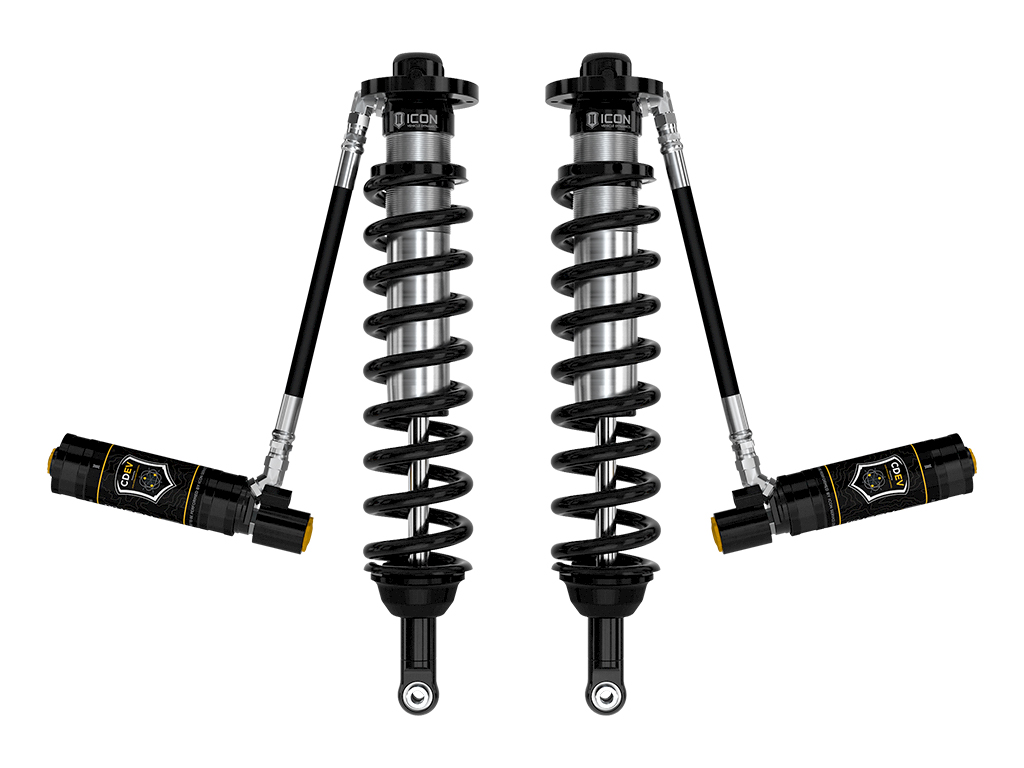

The ICON Vehicle Dynamics V.S. Series 2.5” CDCV remote reservoir coilover shocks an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma or 2010-2024 4Runner equipped with long travel front suspension. ICON’s Vehicle-specific valving and custom, long travel length provide a sport tuned feel on and off-road while offering 0-3.5" of lift height adjustability on most models or 0-2.75” of front lift height adjustment on 2016-2023 Tacomas. ICON's larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. The ICON CDE Valve upgrade is also included for those desiring an easy way to tune the ride electronically from inside the vehicle.Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Fully rebuildable and re-tunable
  • Vehicle specific tuned for superior shock damping and control
  • Custom length for pairing with many common long travel front suspension kits
  • Adjustable ride height for customization of vehicle stance
  • ICON engineered Eibach Springs
  • External reservoirs to attain cooler operating temperatures during extended off-road use
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" induction hardened, chrome plated shafts
  • FK rod end bearings for extended longevity and minimal deflection

Technical Notes

  • TECH NOTE: Coilovers optimized for use with the Total Chaos long travel kit but may also be compatible with others
  • TECH NOTE: Also requires installation of IIC kit and CDEV rear shocks for appropriate vehicle
  • TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • TECH NOTE: Coilovers optimized for use with the Total Chaos long travel kit but may also be compatible with others
  • TECH NOTE: Also requires installation of IIC kit and CDEV rear shocks for appropriate vehicle
  • TECH NOTE: Not compatible with 2005-2015 2WD 5-Lug Toyota Tacoma models
UPC 00840103421193
Maximum Lift 3.5
Material Steel
Spring Rate 600
Body Diameter 2.5
Remote Reservoir Yes
Adjustable Height yes
Spring Rate Type Linear
Spring Color Black
Adjustable Damping Yes
Shaft Diameter 0.875
Damping Adjustment Type Electronic
Service Parts 257304 - 7/8 SHAFT 14.75 OAL, 10.50 TRAVEL
Add-On Part 198001 - BILLET SPANNER WRENCH KIT
Width 12.00 in
Length 37.00 in
Depth 8.00 in
Weight 62.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2005-2023 Toyota Tacoma/2010-2024 Toyota 4Runner, 2.5 VS Remote Reservoir w/ CDEV, Long Travel Coilover Kit

59730E-CB

0 in stock , backorders available

$2,624.95 $1,999.96
