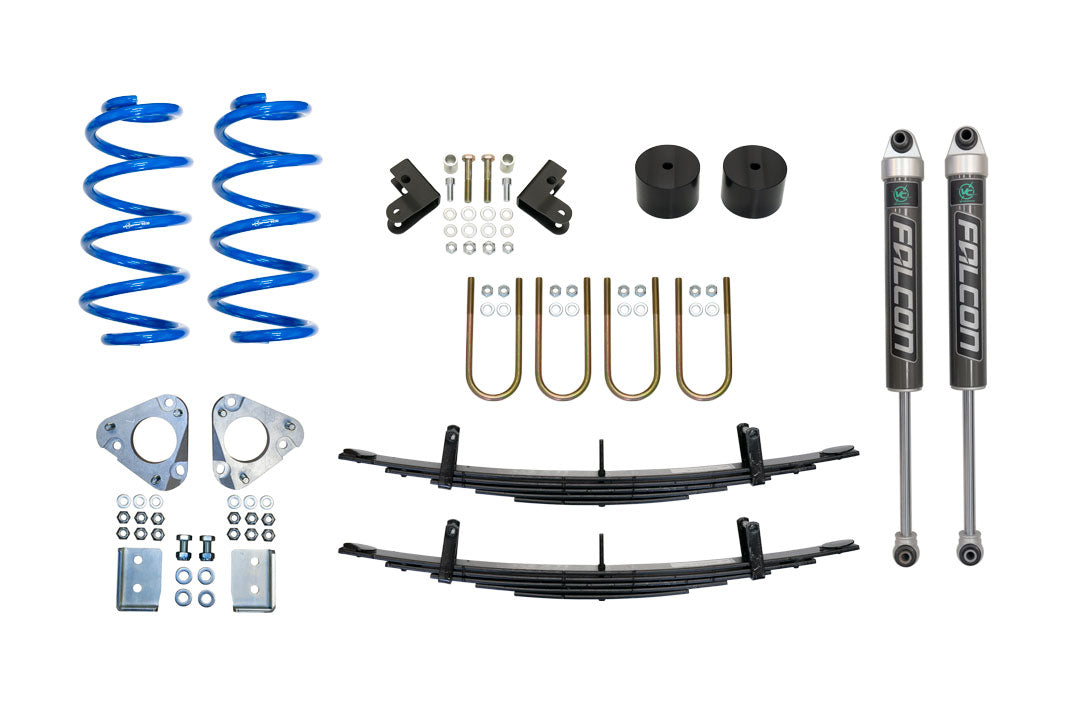

Van Compass Stage 3 Topo 2.0 System, Mid Tune, Ford Transit (SRW ONLY)
- Van Compass
- SKU:7213-M
$2,059.80
In stock
Recommended add-ons
Van Compass Stage 3 Topo 2.0 System, Mid Tune, Ford Transit (SRW ONLY)
$2,059.80
- Get It Fast with Same-day Dispatch
- Free Shipping over $99
1-2 day delivery for most. Expedited shipping options available at checkout.
Have questions? We’re here to help.
Call us at 1-800-347-1188 or chat with our tech support.
Product details
Improve the ride quality and stance of your Ford Transit RWD with the Stage 3 Topo 2.0 package. This tuned suspension system will dramatically improve your ride quality and our Topo kit was developed specifically to work around the packaging and front CV shaft constraints presented by the AWD Transit platform.
Designed to fit a Viar 2.0 Gallon air tank (Part Number: 91022) and most single Viar air compressor up to a 450H in size. The Viar 2.0 gallon tank is also compatible with ARB compressors: CKMA12 or CKSA12. An ARB Twin Air Compressor (Part Number: CKMTA12) can be mounted to the bracket if no air tank is desired.
When properly engineered, there are no down sides. Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications. Precision cut and machined parts key together to ensure solid construction. Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service. A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance.

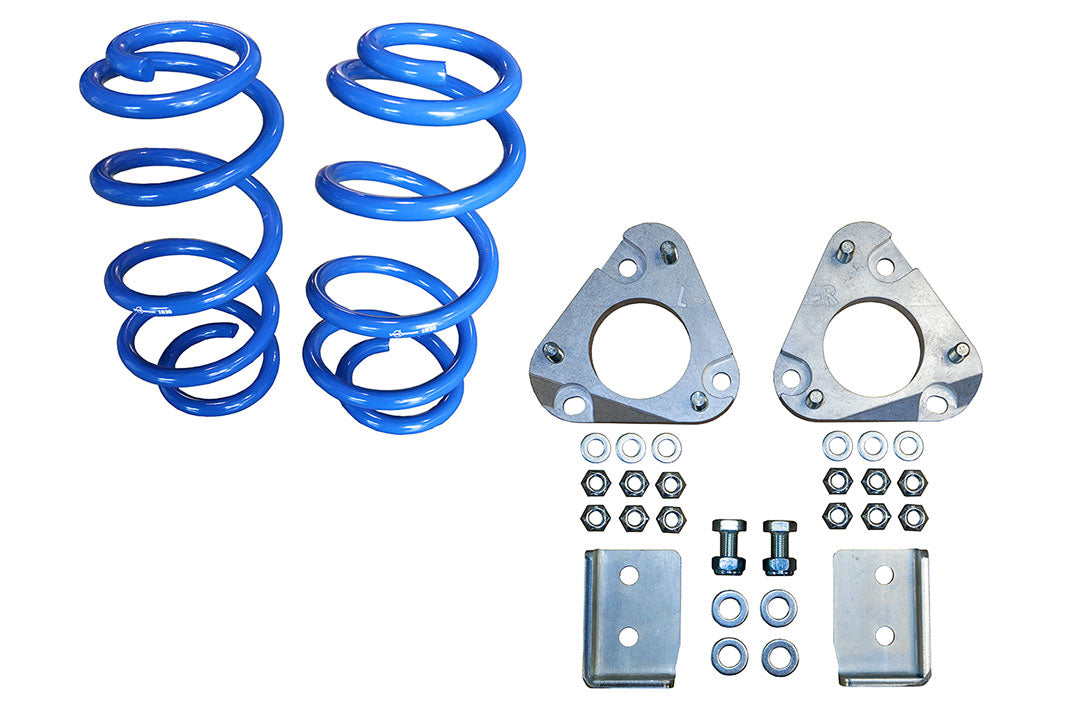

Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2" front lift kit, for 4" of total lift in the front. A 4" lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.
This kit is fully compatible with our Falcon rear shock upgrade and Bilstein front struts, for a huge increase in handling and performance. A 4" lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.
Designed to fit a Viar 2.0 Gallon air tank (Part Number: 91022) and most single Viar air compressor up to a 450H in size. The Viar 2.0 gallon tank is also compatible with ARB compressors: CKMA12 or CKSA12. An ARB Twin Air Compressor (Part Number: CKMTA12) can be mounted to the bracket if no air tank is desired.
When properly engineered, there are no down sides. Our spindle was carefully designed to preserve the complex geometry of the front end without altering tie rod angle or placement, maintaining camber, caster and Ackerman angles within their correct specifications. Precision cut and machined parts key together to ensure solid construction. Motorcraft ball joints come pre-installed to simplify the installation process and ensure years of trouble free service. A complete hardware kit is included, and the spindles are plated with zinc oxide for corrosion resistance.
Designed to work both as a standalone product to lift the front for a leveled stance on a light van, or combined with our Topo 2" front lift kit, for 4" of total lift in the front. A 4" lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.
This kit is fully compatible with our Falcon rear shock upgrade and Bilstein front struts, for a huge increase in handling and performance. A 4" lifted front will clear a 285/70R17, a versatile size tire great for off-highway use and on.

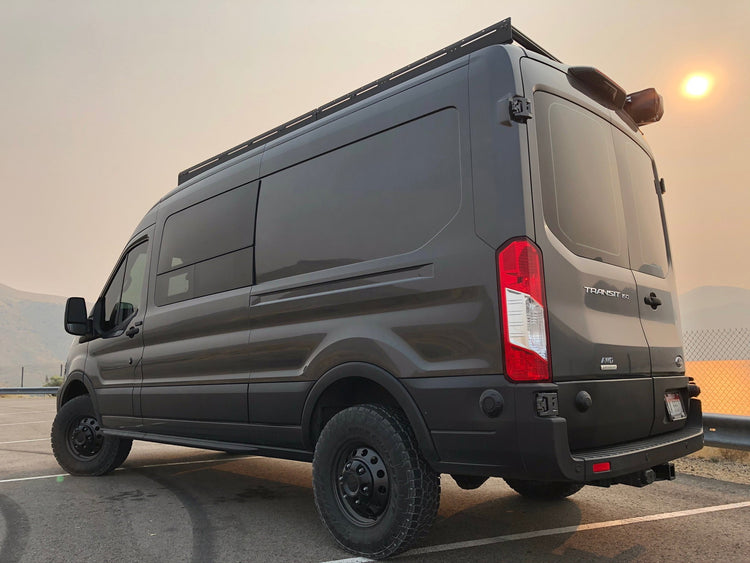

- Aggressive, 2" taller stance allows larger tires to smooth out terrain
- Increased approach, break over and departure angles

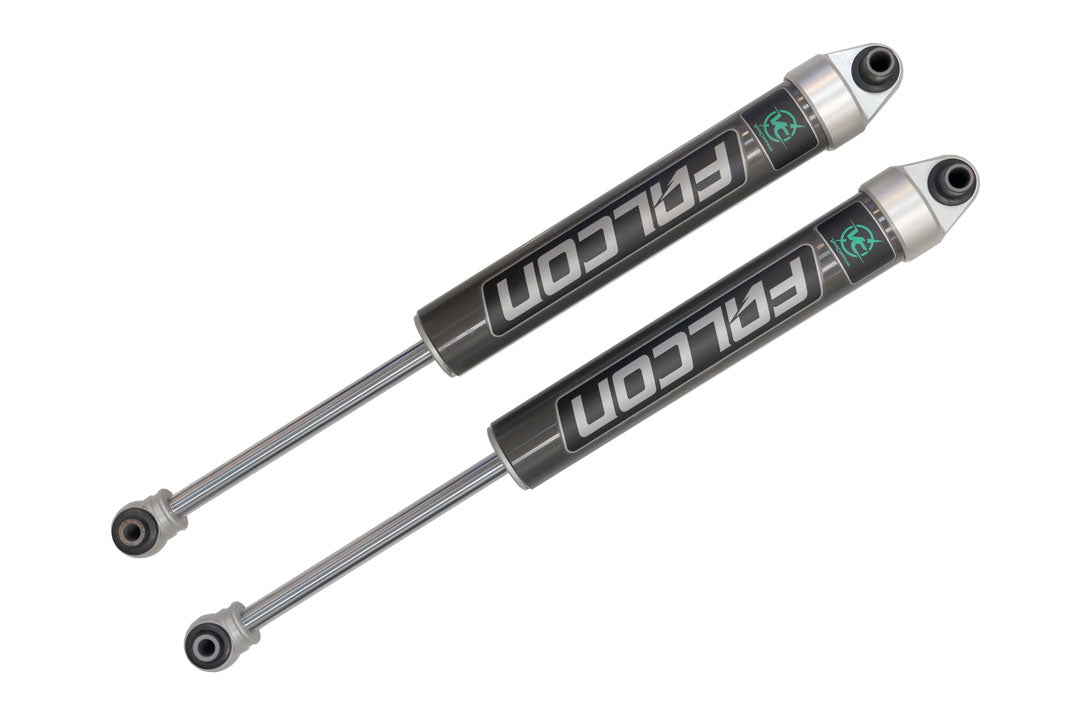

- VC tuned Falcon 2.1 Monotube Shocks
- Mid shock tune for vans weighing 8000-9100 lbs

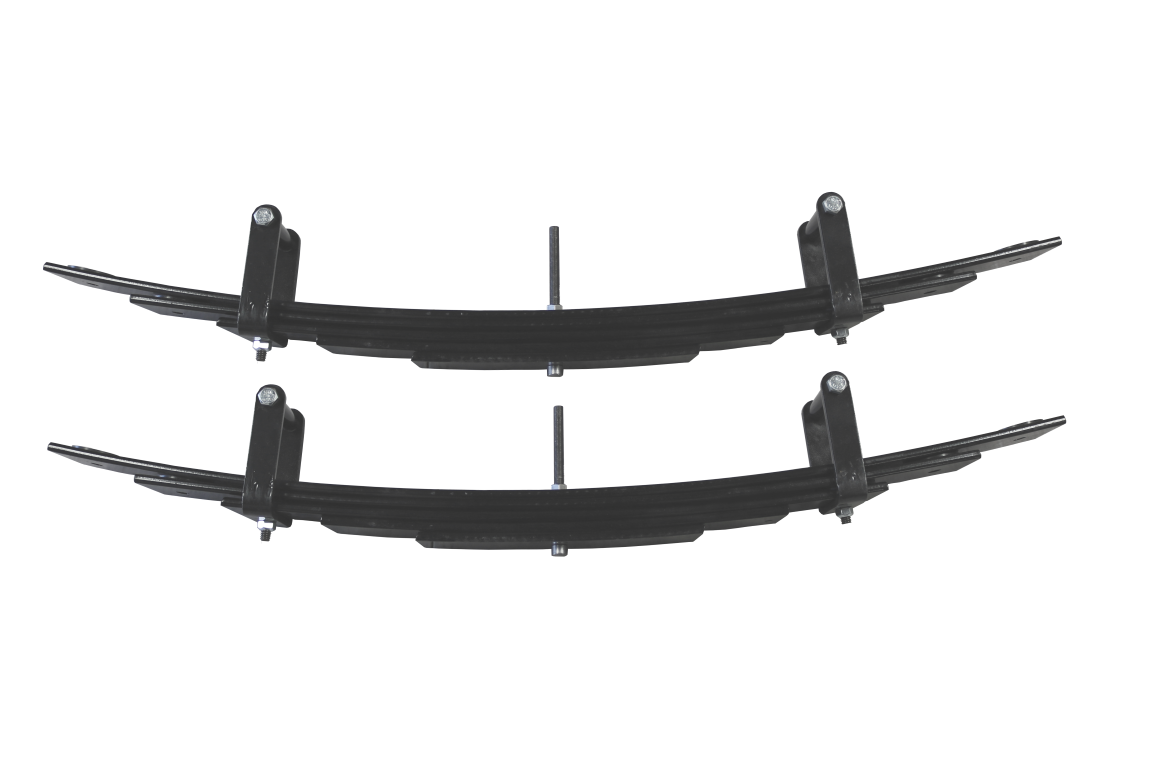

- Increased rear spring rate fights sag
- Enhanced cornering stability and reduced wind sway
- More effective control over large and small bumps
- Increased bottom out resistance
CA Residents:
Prop 65 Warning
WARNING
This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Specifications
| Brand | Van Compass |
| UPC | 810185261802 |
| Shipping Width | 17.00 in |
| Shipping Length | 8.00 in |
| Shipping Depth | 17.00 in |
| Shipping Weight | 136.0000 LB |
Technical Notes
- NOTE: Bilstein B6 strut are not included with AWD systems, their added length can cause CV boot failure
- NOTES: Van must be professionally aligned after lift kit installation! Adverse tire wear and driving characteristics will result if van is not properly aligned.
