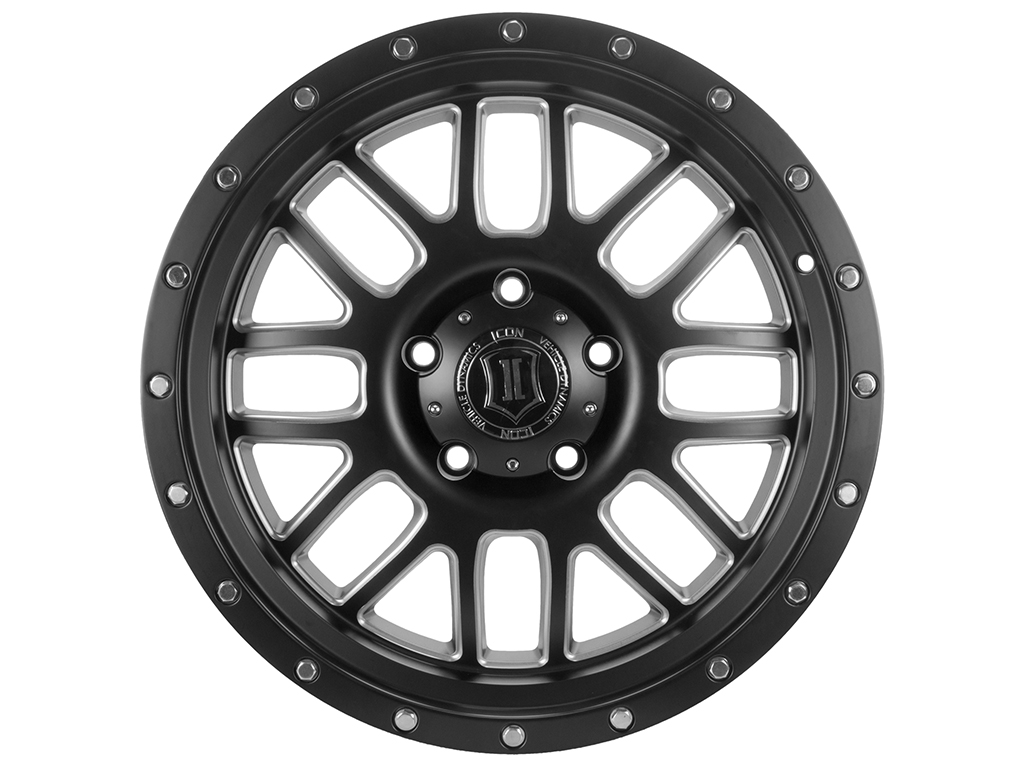

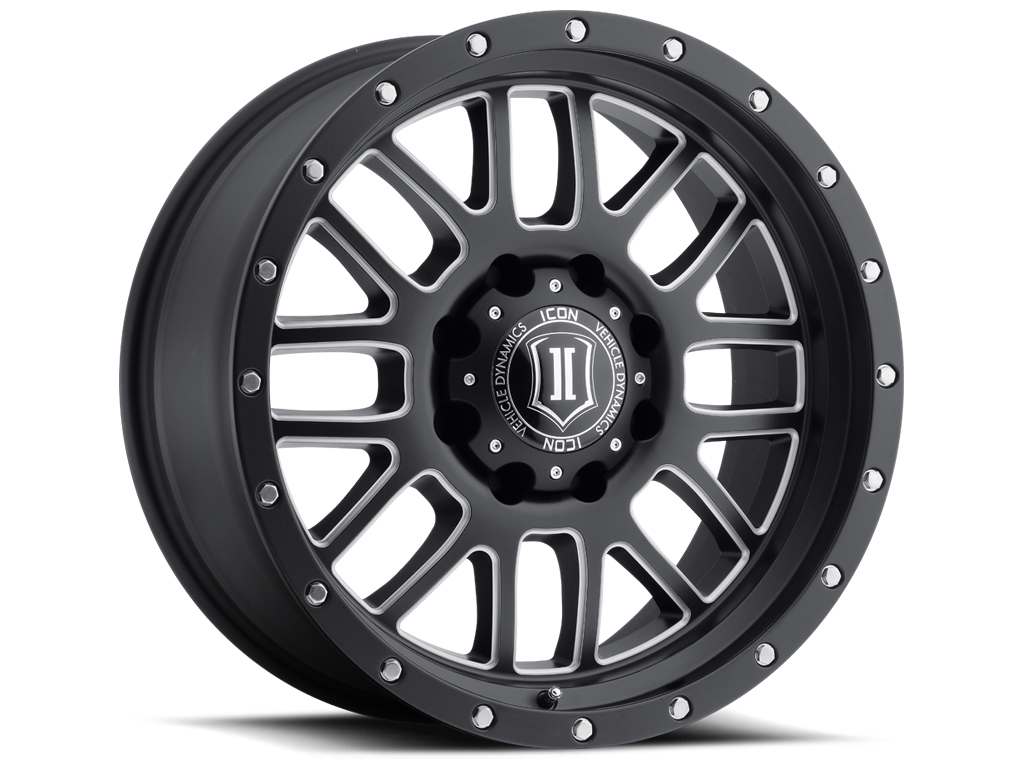

ICON Alloys Alpha, Satin Black, Milled Windows, 20 x 9 / 8x180, 12mm OS, 5.5" BS

Product Details

A potent blend of on-road looks and off-road capability, the ALPHA is aimed to increase both the form and function of your Jeep, truck, or SUV. Staying true to the ICON Alloys approach, the ALPHA has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

Aluminum alloy construction provides strength properties that are well suited for off-road use
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Application-specific dimensions optimize vehicle dynamics and tire clearance

Technical Notes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
UPC	00840103413051
Material	Aluminum
Finish	Powdercoated
Color	Satin Black w/ Milled Windows
Construction	Cast
Backspacing	5.5
Bolt Pattern	8 X 180
Center Cap Included	Yes
Diameter	20
Inside Diameter	125.2
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	3700
Offset	12
Positive Offset	12
TPMS Compatible	yes
Width	9
Width	22.00 in
Length	22.00 in
Depth	11.00 in
Weight	38.0000 lb
