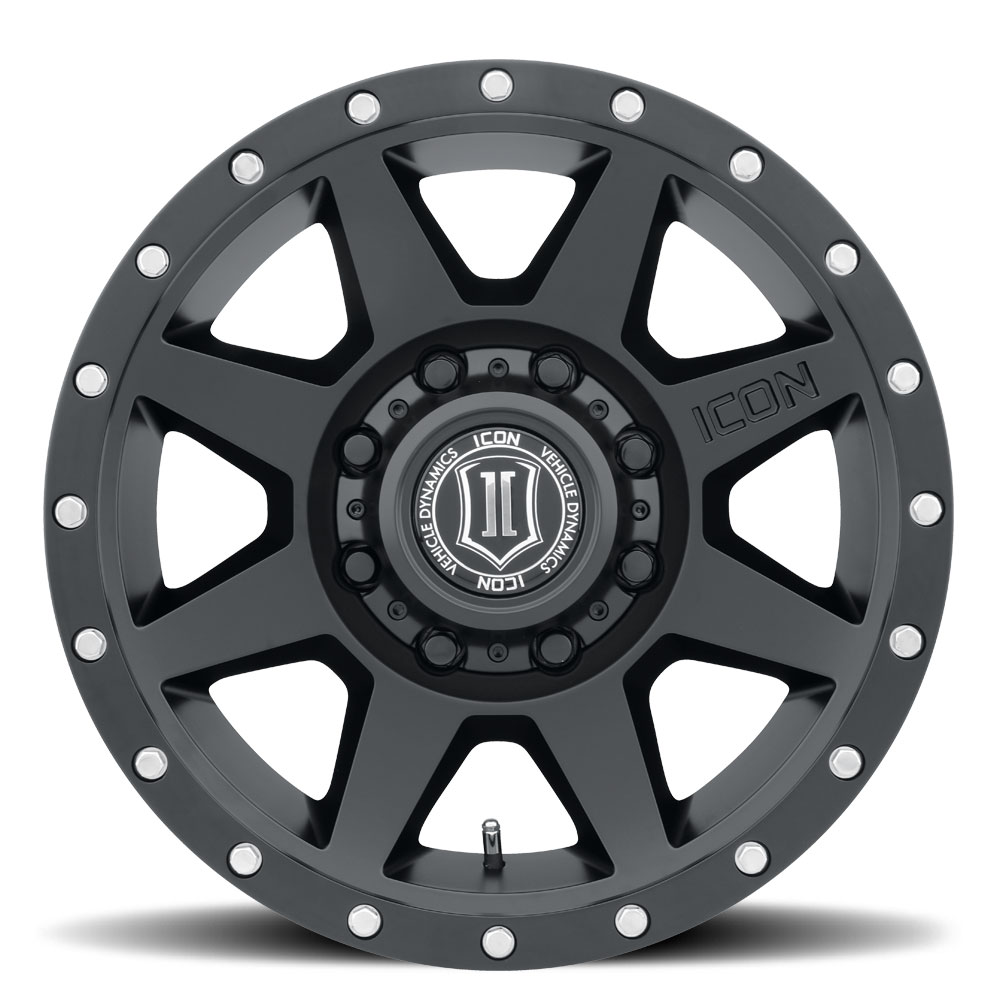

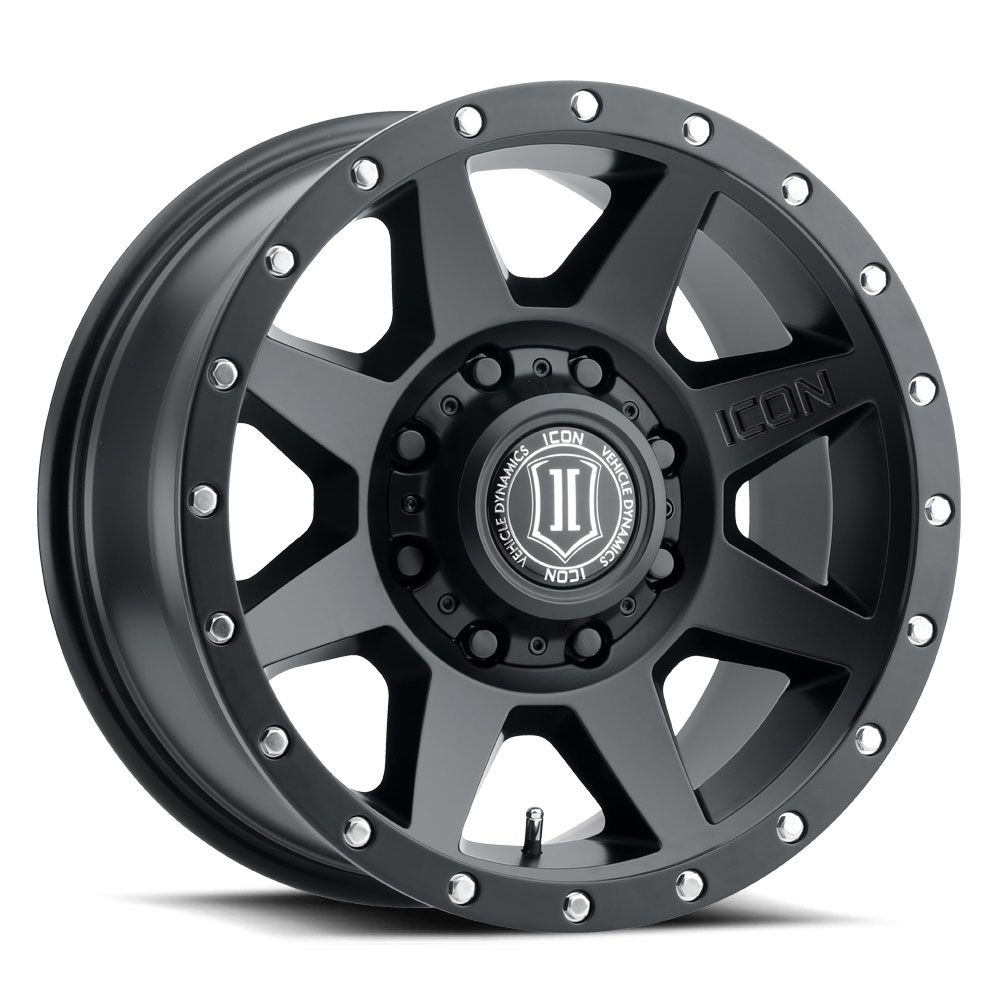

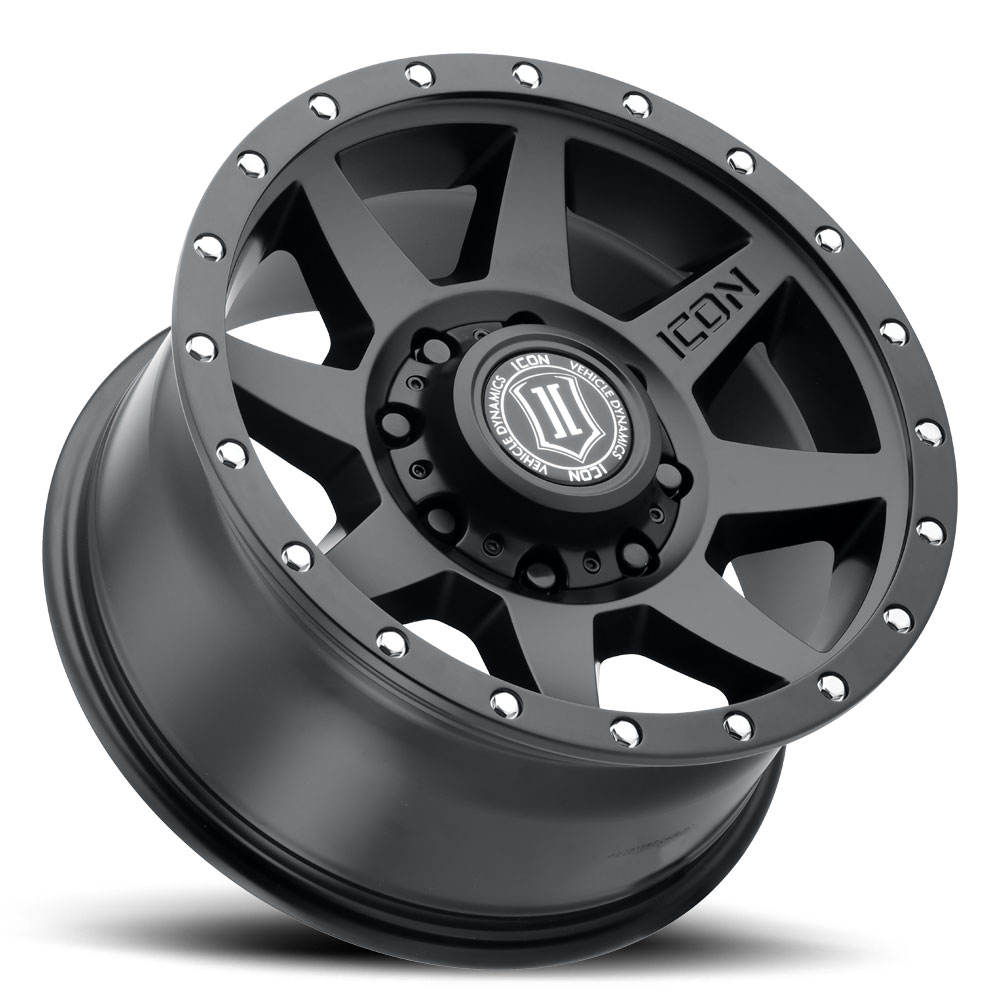

ICON Alloys Rebound HD, Satin Black, 17 x 8.5 / 8 x 6.5, 13mm Offset, 5.25" BS

Product Details

Bring a bold new look and incredible strength to your 8-lug pickup with the ICON Alloys REBOUND HD! Combining sharp lines, a concave spoke design, and "ICON-optimized" dimensions, these wheels will increase both the form and function of your 3/4-ton truck. Staying true to the ICON Alloys approach, the REBOUND has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

Built specifically for HD applications, with a 4,000LB load rating
Application-specific dimensions optimize vehicle dynamics and tire clearance
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Aluminum alloy construction provides strength properties that are well suited for off-road use

Technical Notes

TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
UPC	00840103413433
Material	Aluminum
Finish	Powdercoated
Color	Satin Black
Construction	Cast
Backspacing	5.25
Bolt Pattern	8 X 6.5
Center Cap Included	Yes
Diameter	17
Inside Diameter	121.4
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	4000
Offset	13
Positive Offset	13
TPMS Compatible	yes
Width	8.5
TPMS Included	No
Width	19.00 in
Length	20.00 in
Depth	10.00 in
Weight	30.0000 lb
