2017855557DB

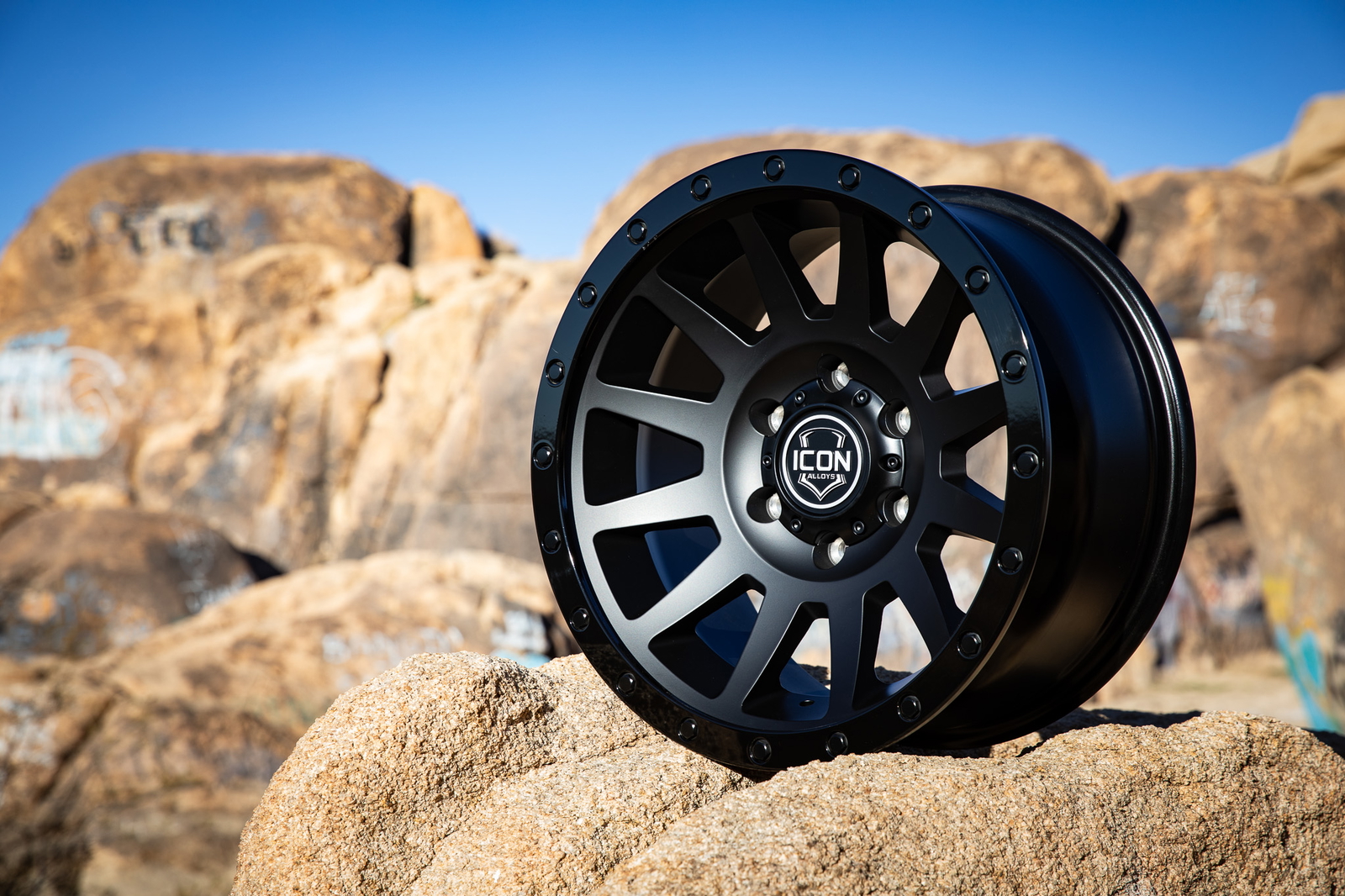

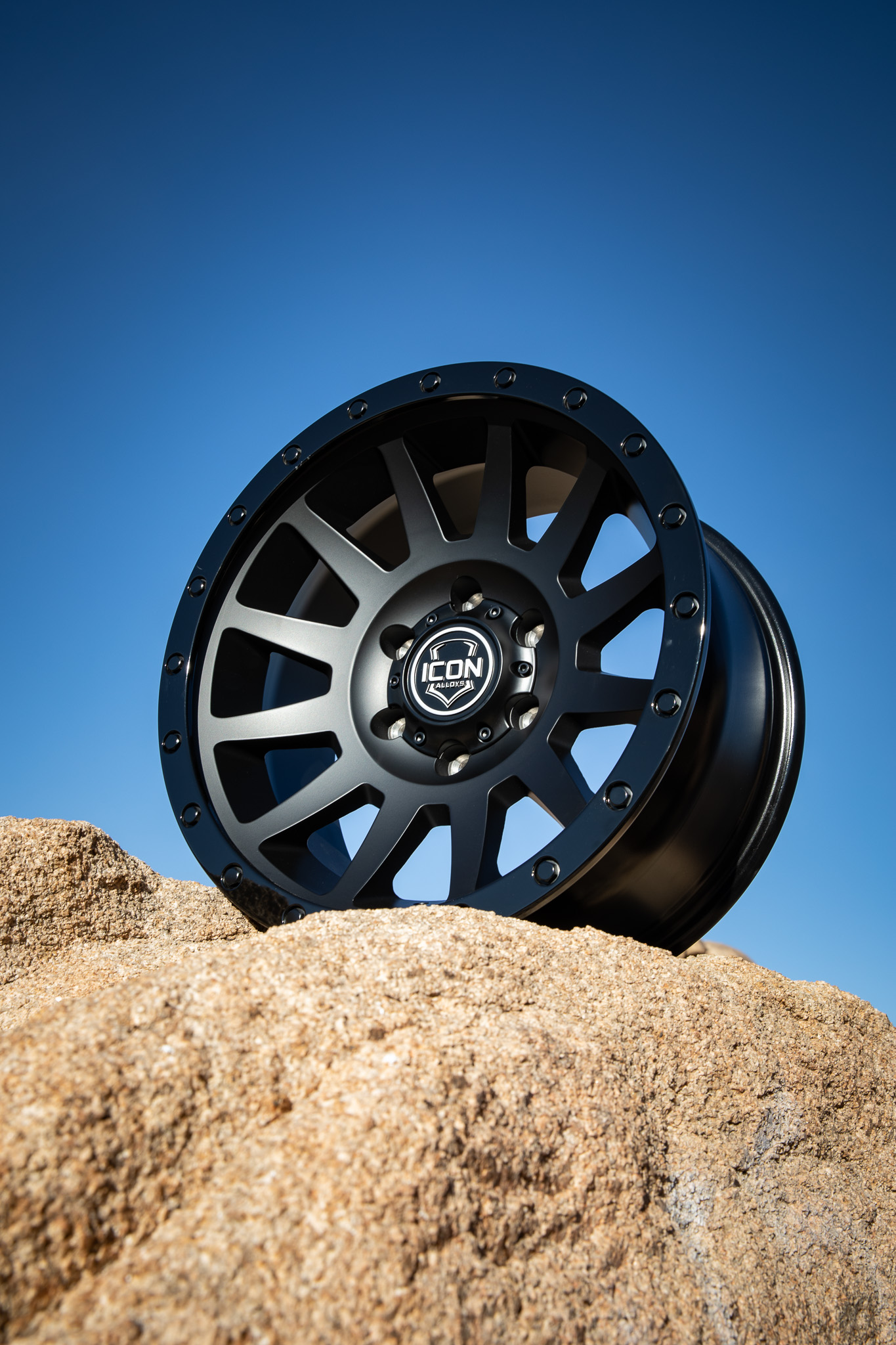

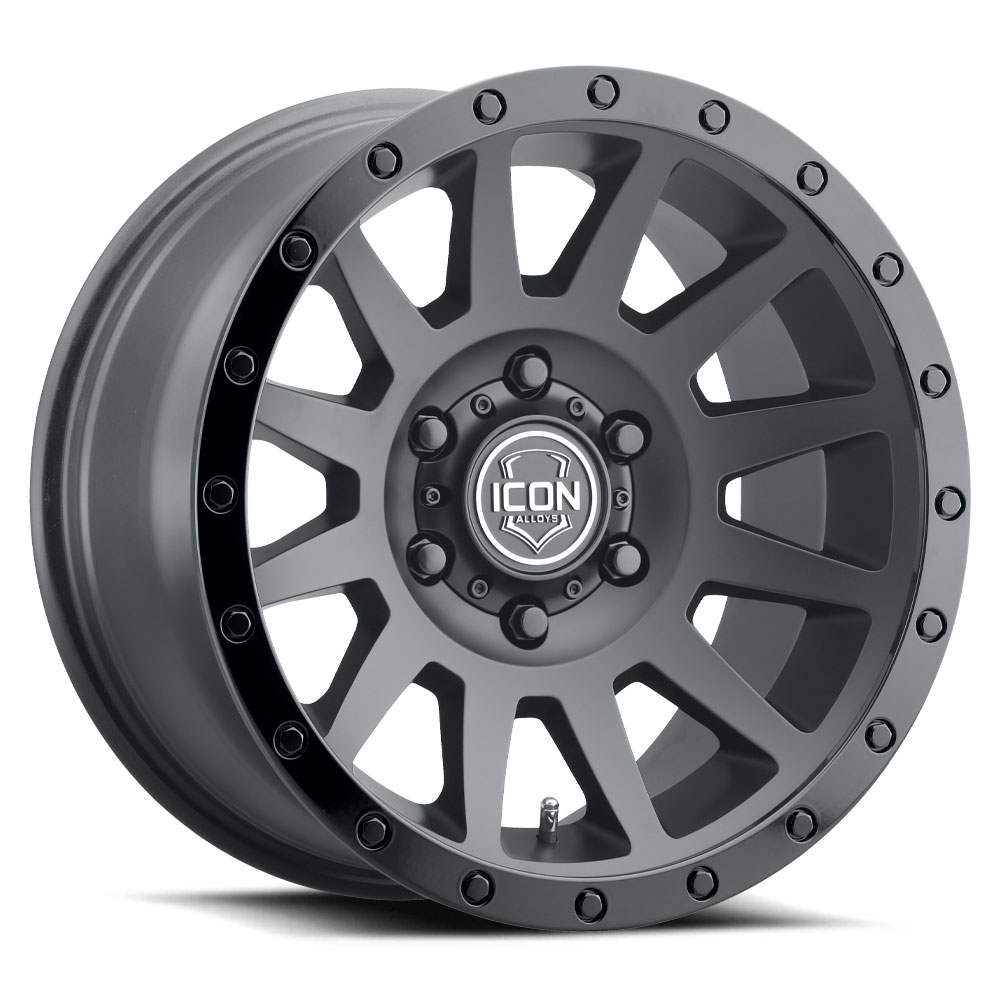

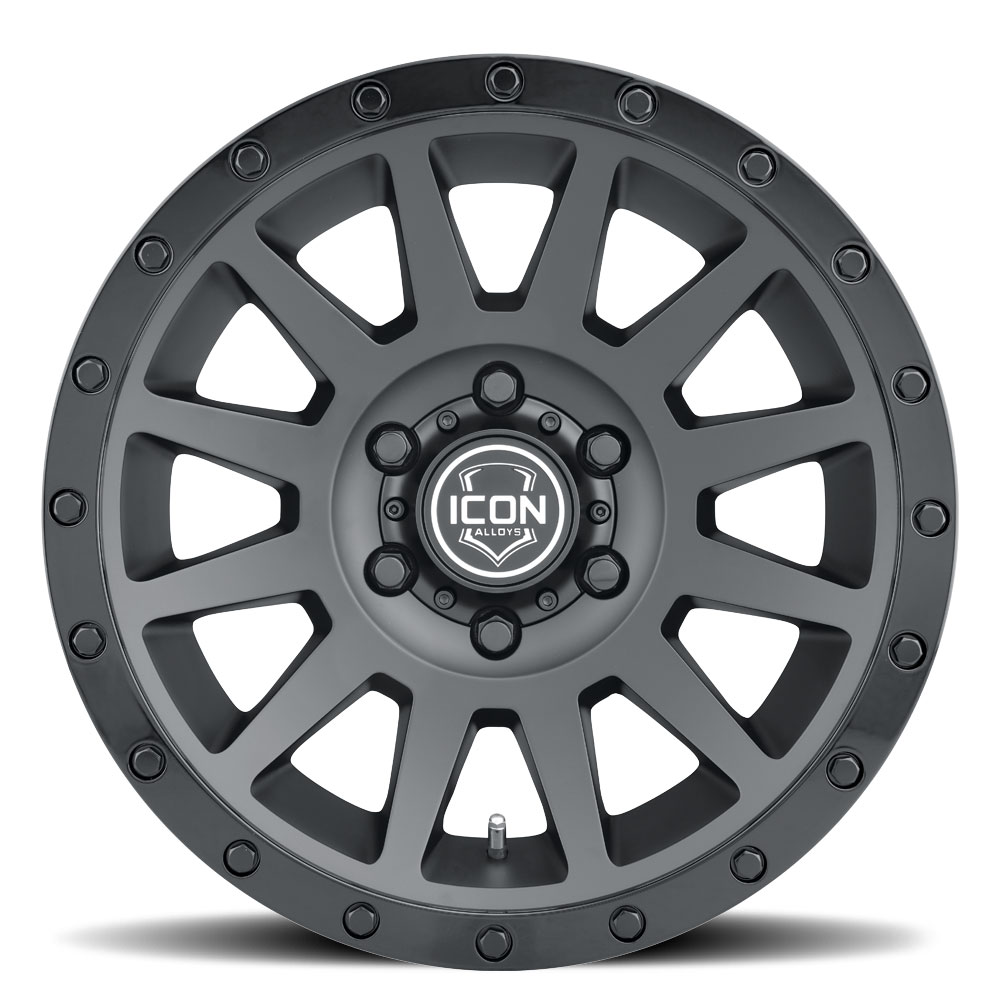

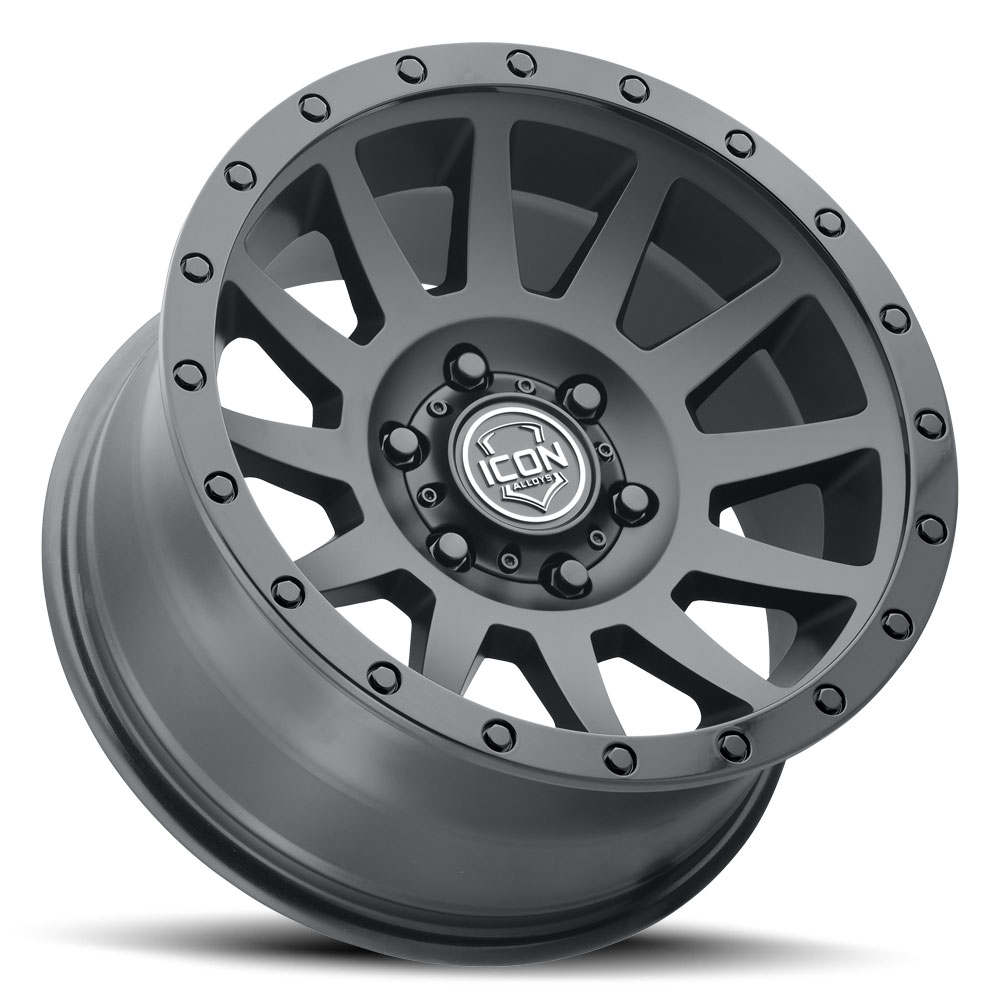

ICON Alloys Compression, Double Black, 17 x 8.5 / 5 x 150, 25mm Offset, 5.75" BS

Product Details

In traditional ICON Alloys style, the Compression wheel has not only been engineered to enhance the overall look of the vehicle but the overall handling of the vehicle as well. The new fitments for the Compression wheel come with a 5.75” backspace / 25mm offset to reduce scrub radius and maximize caliper clearance. These wheels also yield a 2,750-pound load rating - making it one of the strongest wheel options on the market.Combining sharp lines, a concave spoke design, and “ICON-optimized” dimensions, these wheels will increase the form and function of a vehicle. Available in Bronze, Satin Black, Double Black, and Titanium finishes, the Compression has a classic style with the strength to match.

Application-specific dimensions optimize vehicle dynamics and tire clearance
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Aluminum alloy construction provides strength properties that are well suited for off-road use

Technical Notes

TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
UPC	00840103421407
Material	Aluminum
Finish	Powdercoated
Color	Double Black
Construction	Cast
Backspacing	5.75
Bolt Pattern	5 X 150
Center Cap Included	Yes
Diameter	17
Inside Diameter	110.1
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	2750
Offset	25
Positive Offset	25
TPMS Compatible	yes
Width	8.5
TPMS Included	No
Width	19.00 in
Length	19.00 in
Depth	10.00 in
Weight	30.0000 lb
