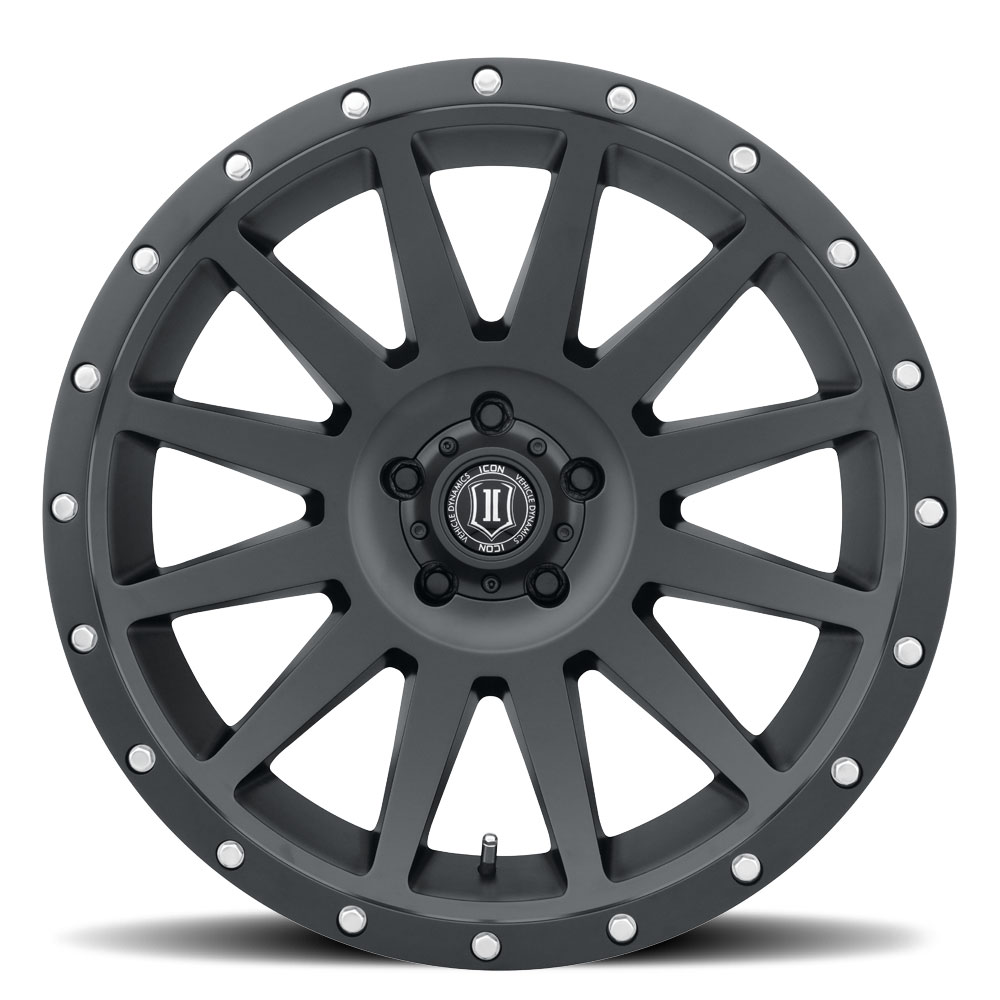

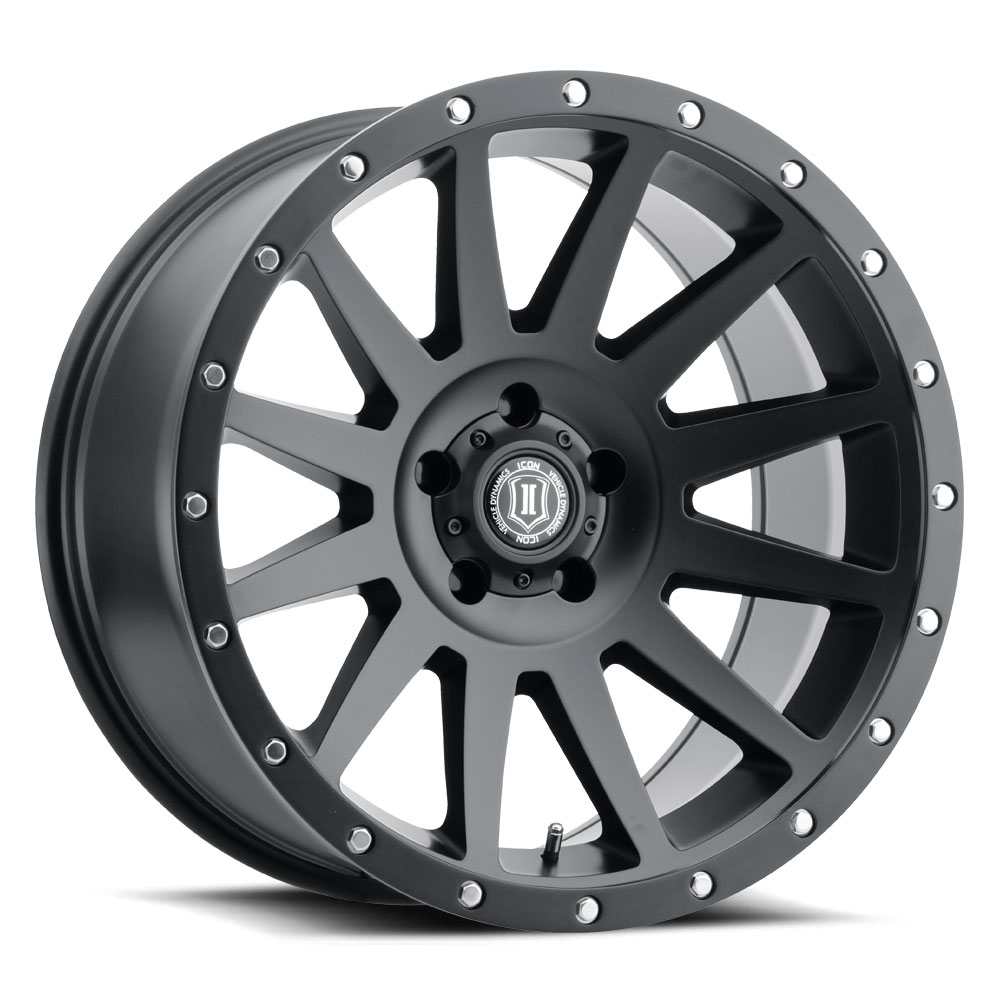

ICON Alloys Compression, Satin Black, 20 x 10 / 6 x 5.5, -19mm Offset, 4.75" BS

Product Details

The 20x10” Compression is now offered in several new bolt patterns with unique backspace/offset dimensions to provide an aggressive style and stance for more style-focused customers. These wheels also yield a 2,750-lb load rating retaining the traditional utility and strength of ICON Alloys. Combining sharp lines, a concave spoke design, and style-oriented dimensions, these wheels will increase both the form and function of your vehicle. Available in Bronze, Satin Black, and Titanium finishes with color-matched rock ring bolts, the Compression has a classic style with the strength to match.

Application-specific dimensions optimize vehicle dynamics and tire clearance
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Aluminum alloy construction provides strength properties that are well suited for off-road use

Technical Notes

TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
UPC	00840103410012
Material	Aluminum
Finish	Powdercoated
Color	Satin Black
Construction	Cast
Backspacing	4.75
Bolt Pattern	6 X 5.5
Center Cap Included	Yes
Diameter	20
Inside Diameter	106.1
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	2750
Offset	-19
Negative Offset	-19
TPMS Compatible	yes
Width	10
Width	22.00 in
Length	22.00 in
Depth	12.00 in
Weight	40.0000 lb
