ICON 19-UP RAM 1500 2/4WD 09-18 RAM 1500 4WD 2.5 VS IR COILOVER KIT

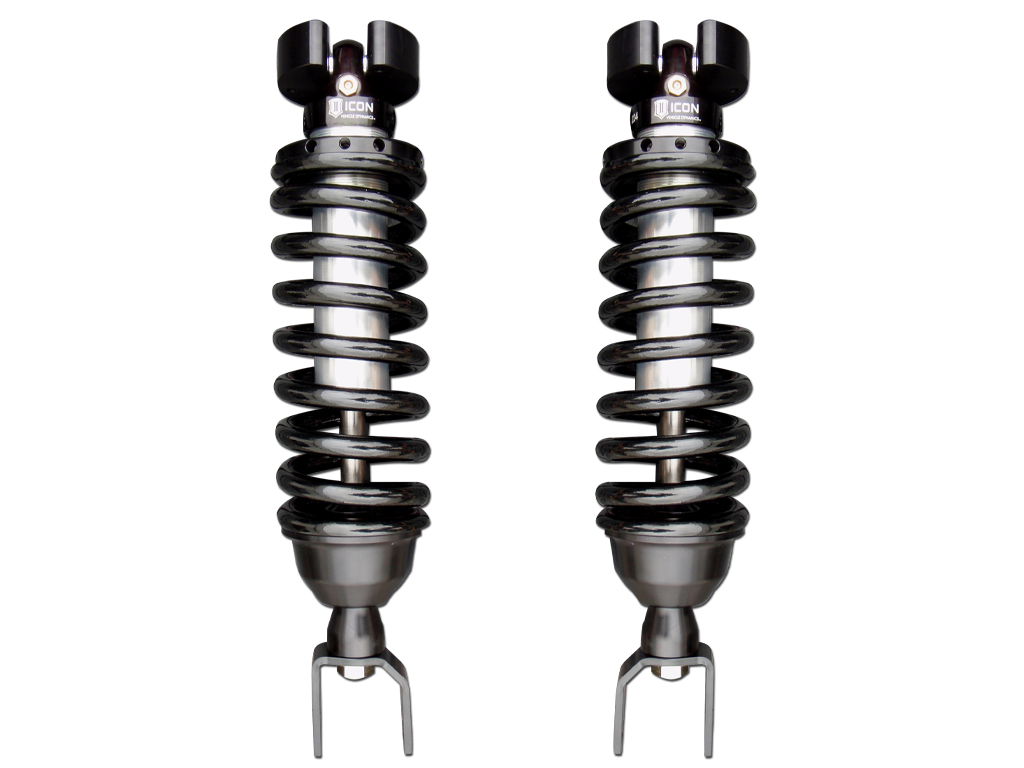

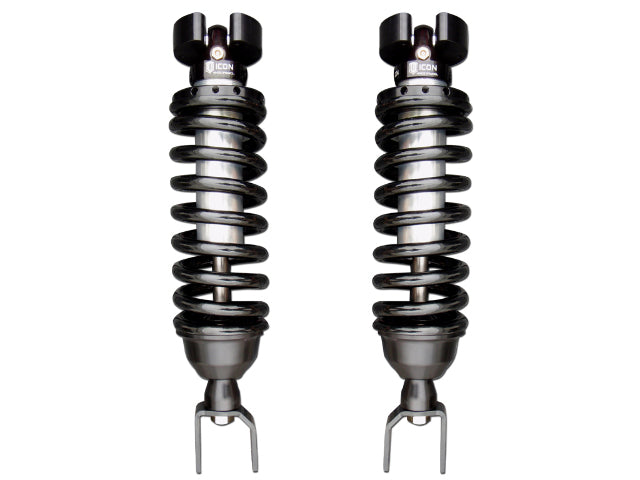

ICON 2019-Up Ram 1500 2/4WD/09-18 1500 4WD, Front, 2.5 VS Coilover Kit

Product Details

ICON's Vehicle Specific (V.S.) 2.5 Series coilover shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable.

Adjustable coilovers yield .75-2.5” of front lift height on '09-'18 models or 0-1.5" of lift on '19-Up models
Increased wheel travel and vehicle specific valving provides unrivaled ride quality across a wide range of on and off-road use
Superior low speed control reduces body roll and increases on-road stability
High quality ICON-engineered coil springs are guaranteed for life against sagging or breakage
Corrosion resistant CAD plated shock body with 7/8" shaft
Fully serviceable design allows for revalves, rebuilds, and an immeasurable service life
Bolt-in design makes for an easy install into OEM shock location

Technical Notes

Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels (2009-2018 Models): ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset
Recommended Aftermarket Wheels (2019-UP Models): ICON Alloys - 18x9 with 5" Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
TECH NOTE: Not compatible with models equipped with OE air suspension
TECH NOTE: 2019-Up Ram Rebel lift height range 0-.75" over stock
TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models. Lift height range is .75-2.5" over stock
TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels (2009-2018 Models): ICON Alloys - 17x8.5 with 4.75" Backspace / 0mm Offset Recommended Aftermarket Wheels (2019-UP Models): ICON Alloys - 18x9 with 5" Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) TECH NOTE: Not compatible with models equipped with OE air suspension TECH NOTE: 2019-Up Ram Rebel lift height range 0-.75" over stock TECH NOTE: Compatible with 2019-2022 Ram 1500 Classic models. Lift height range is .75-2.5" over stock TECH NOTE: Not compatible with 2021-UP Ram 1500 TRX
UPC	00840103400495
Body Diameter	2.5
Remote Reservoir	NO
Adjustable Height	yes
Spring Color	Black
Adjustable Damping	NO
Shaft Diameter	0.875
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	(2009-UP Models) ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
Width	12.00 in
Length	27.00 in
Depth	6.00 in
Weight	42.0000 lb
