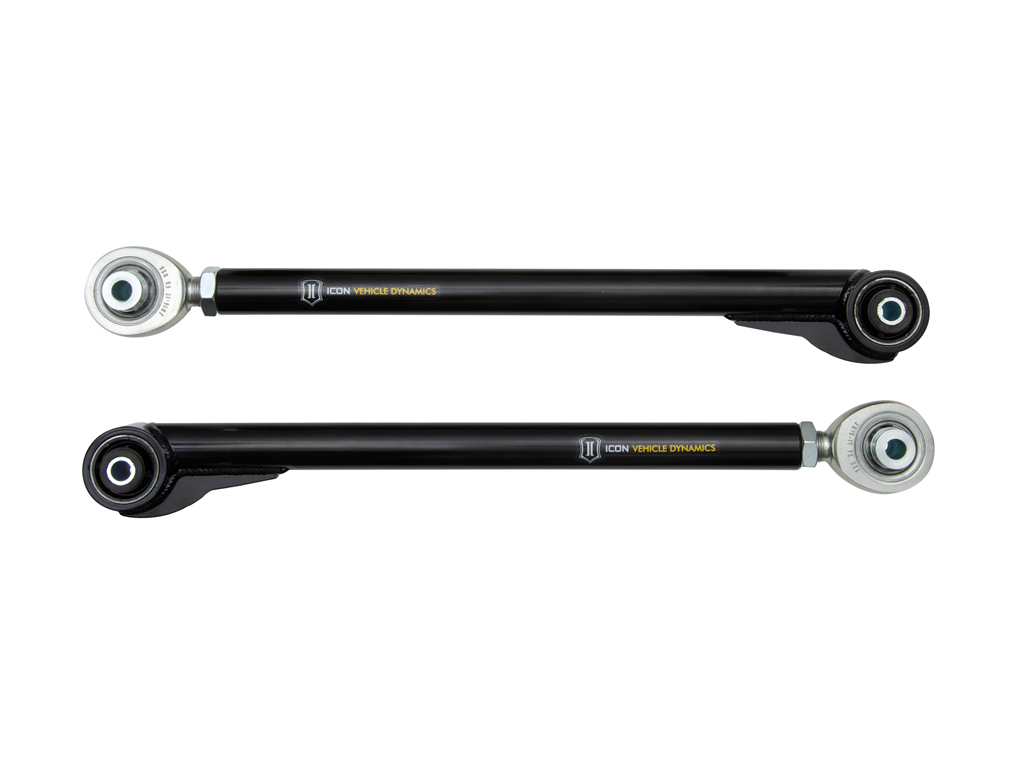

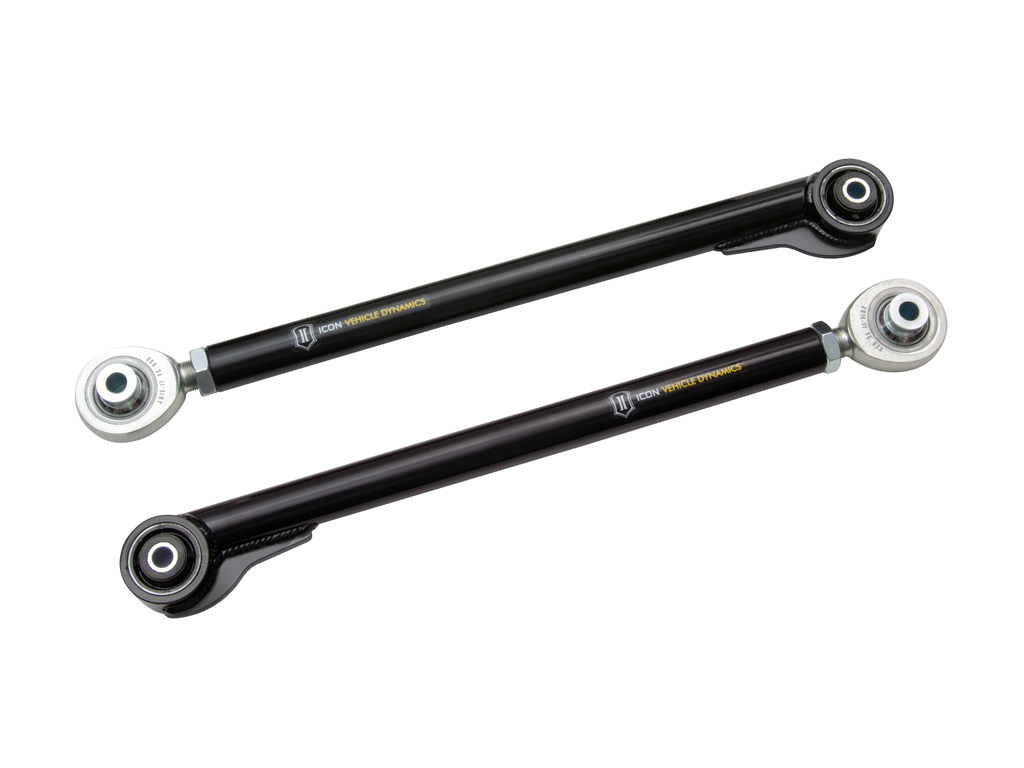

ICON VEHICLE DYNAMICS 20-UP JT TUBULAR REAR ADJUSTABLE LOWER LINK KIT

ICON 2020-2023 Jeep Gladiator/2019-2023 Ram 1500, Adjustable Tubular Lower Link Kit, Rear

Product Details

The ICON Tubular Rear Lower Link System helps free up rear axle movement on the 2020-2023 Jeep Gladiator and 2019-2023 Ram 1500 to allow for increased suspension travel and articulation. Formed using 1 1/2” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These lower links are designed specifically for high clearance for reduced contact with trail obstacles and massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

CNC machined & notched 1026 DOM steel construction
Multi durometer bushing for noise free operation and maximum angularity
No grease required for life of bushings
Quality JM16T PTFE-lined FK Rod Ends
Adjustable for various lift heights & driveline angles
High clearance barrel design reduces risk of off-road hangups
ICON1K tested in extreme off-road conditions
Fabricated components covered under ICON's lifetime warranty

Technical Notes

APPLICATION NOTE #105: Not for vehicles with rear factory air ride
TECH NOTE: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels
TECH NOTE: Compatible with 0-3" of rear lift on most Ram 1500 submodels
TECH NOTE: Compatible with 0-2.5" of rear lift on 2019-2023 Ram 1500 Rebel
TECH NOTE: Will not fit 2021-2023 Ram 1500 TRX
TECH NOTE: Will not fit 2019-2023 Ram 1500 Classic models

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	APPLICATION NOTE #105: Not for vehicles with rear factory air ride TECH NOTE: Compatible with 0-2" of rear lift on most Jeep Gladiator submodels TECH NOTE: Compatible with 0-3" of rear lift on most Ram 1500 submodels TECH NOTE: Compatible with 0-2.5" of rear lift on 2019-2023 Ram 1500 Rebel TECH NOTE: Will not fit 2021-2023 Ram 1500 TRX TECH NOTE: Will not fit 2019-2023 Ram 1500 Classic models
UPC	00840103408910
Bushing Material	Rod End Bearing
Bushing Color	Black
Adjustable	Yes
Material	DOM Steel
Finish	Powdercoated
Bushings Included	Yes
Color	Black
Construction	Tubular
Control Arm Construction	Tubular
Add-On Part	22068 - 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT
Width	8.00 in
Length	30.00 in
Depth	4.00 in
Weight	27.0000 lb
