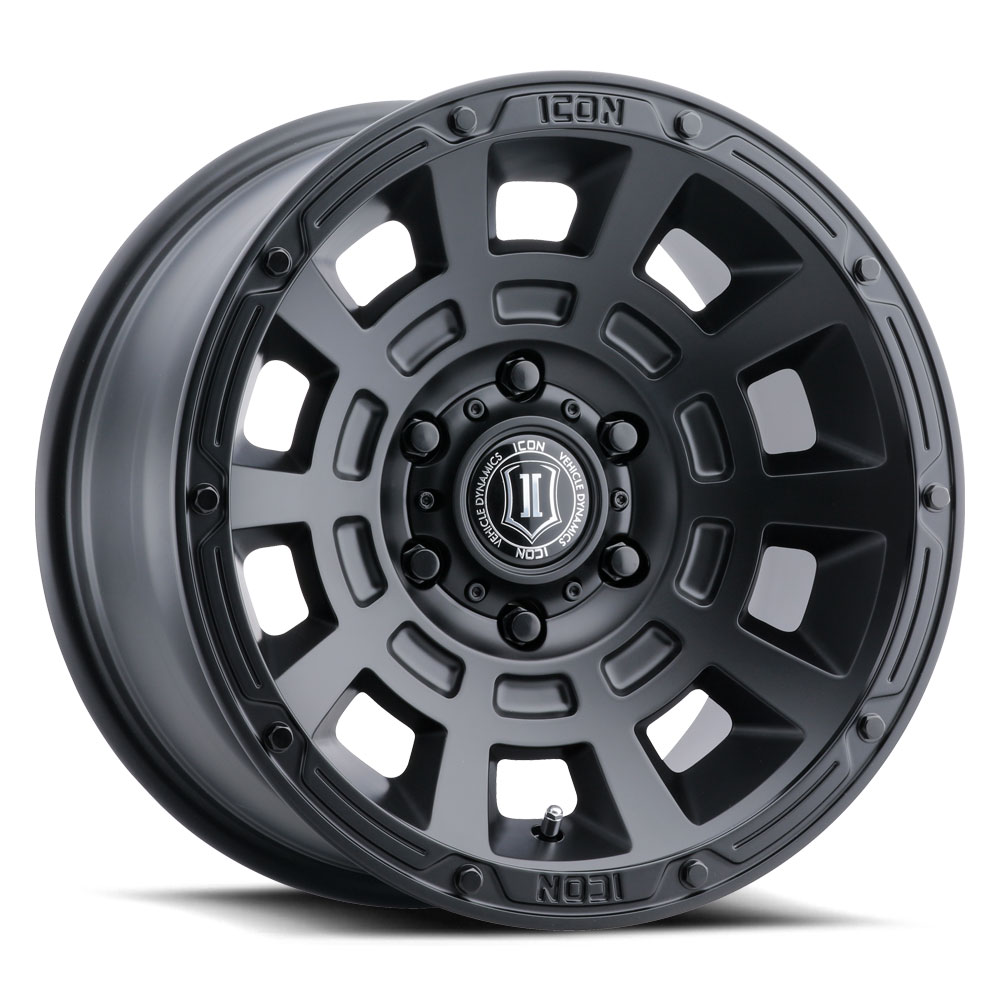

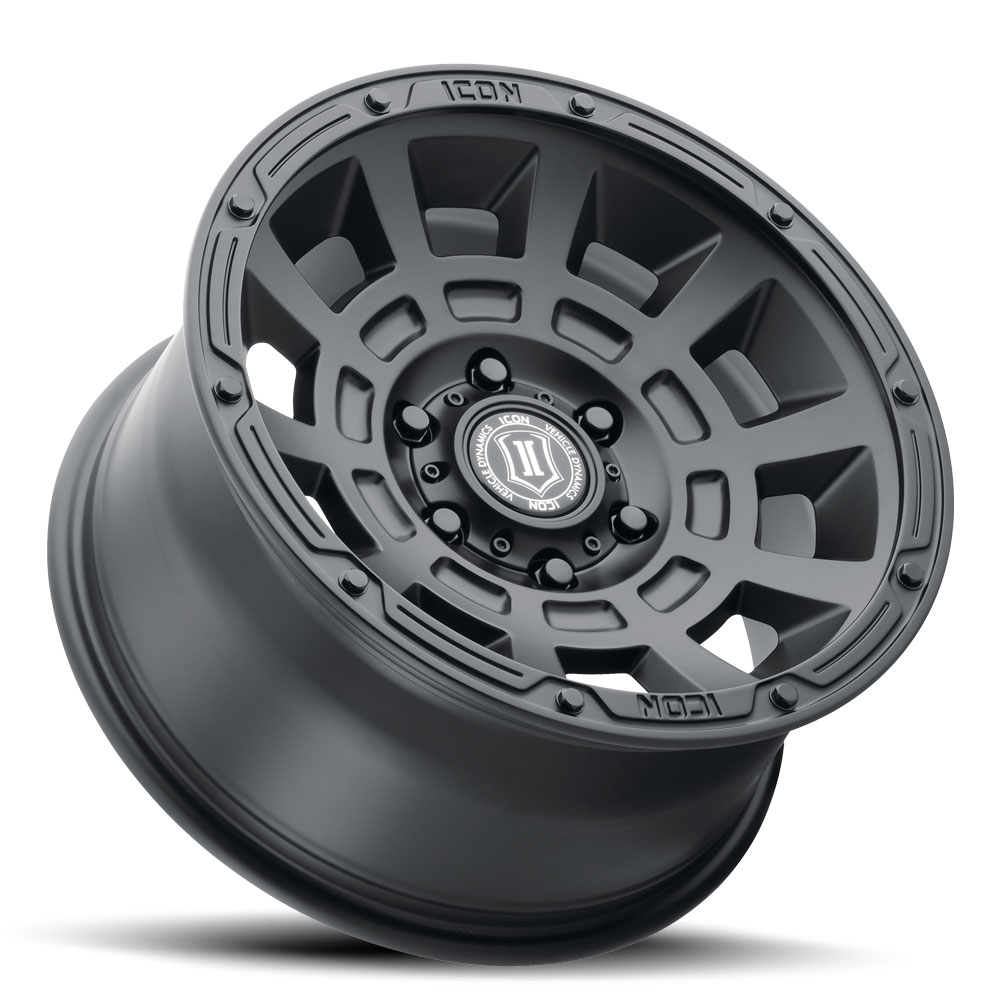

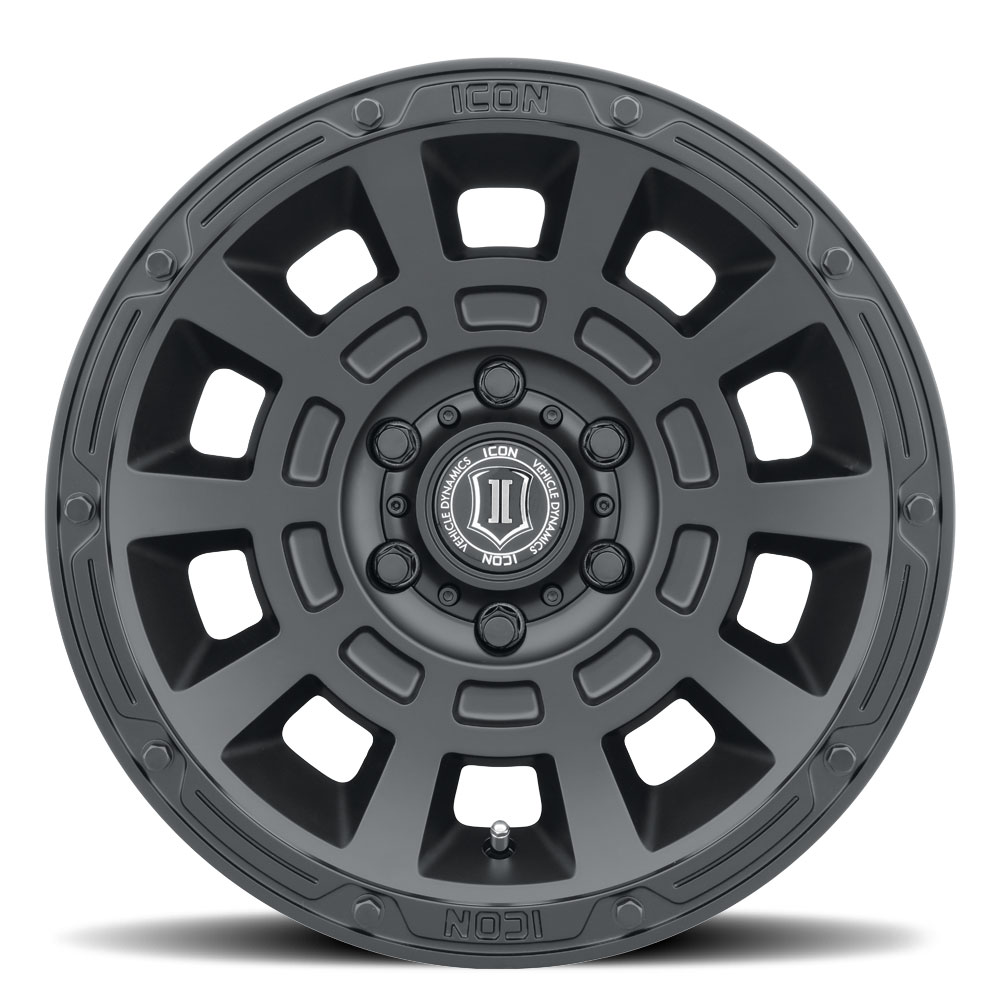

ICON Alloys Thrust, Satin Black, 17 x 8.5 / 5 x 5, -6mm Offset, 4.5" BS

Product Details

Combining sharp concave lines, a unique lip design with imprinted logos, and "ICON-optimized" dimensions, the ‘Thrust’ wheel is not only designed to improve the looks of your Jeep, truck, or SUV, but the overall function of the vehicle as well. Available in all-new Smoked Satin Black and our classic Satin Black finishes, the Thrust has a style that is anything but ordinary.Staying true to the ICON Alloys approach, the 17” Thrust has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace and wheel offset dimensions have been strategically developed to reduce scrub radius, improving all-around handling and ride quality. The ICON Alloys Thrust has also been strength tested to yield a 2,750lb load rating - making it one of the strongest wheel options on the market! With build features such as these, it's clear that a set of ICON Alloys Thrust wheels is the perfect complement to an ICON Vehicle Dynamics suspension system.

Application-specific dimensions optimize vehicle dynamics and tire clearance
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Aluminum alloy construction provides strength properties that are well suited for off-road use

Technical Notes

TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
UPC	00840103410463
Material	Aluminum
Finish	Powdercoated
Color	Satin Black
Construction	Cast
Backspacing	4.5
Bolt Pattern	5 X 5
Center Cap Included	Yes
Diameter	17
Inside Diameter	71.5
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	2750
Offset	-6
Negative Offset	6
TPMS Compatible	yes
Width	8.5
TPMS Included	No
Width	20.00 in
Length	20.00 in
Depth	11.00 in
Weight	30.0000 lb
