ICON VEHICLE DYNAMICS 17-UP FSD 3-6" REAR 2.5 VS PB CDEV PAIR

Product Details

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

  • ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
  • Fully rebuildable and re-tunable
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Piggyback reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • PTFE lined spherical bearings and application specific mounting hardware
  • 6061 aircraft grade aluminum CNC machined components

Technical Notes

  • TECH NOTE: Compatible with 3-6” of rear lift over stock
  • TECH NOTE: 2017-2022 models also require installation of IIC part number 93500 and CDEV front shock part number 67810EP or 67820EP or CDEV front coilover kit part number 61721E
  • TECH NOTE: 2023-2024 models also require installation of IIC part number 93502 and CDEV front shock part number 67820EP
  • TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
  • TECH NOTE: Will not fit F-350 Cab & Chassis models

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • TECH NOTE: Compatible with 3-6” of rear lift over stock
  • TECH NOTE: 2017-2022 models also require installation of IIC part number 93500 and CDEV front shock part number 67810EP or 67820EP or CDEV front coilover kit part number 61721E
  • TECH NOTE: 2023-2024 models also require installation of IIC part number 93502 and CDEV front shock part number 67820EP
  • TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
  • TECH NOTE: Will not fit F-350 Cab & Chassis models
UPC 00840103414492
Adjustable Yes
Adjustable Damping Yes
Shaft Diameter 0.875
Damping Adjustment Type Electronic
Cylinder Color Gray
Shaft Material Chrome
Cylinder Material Aluminum
External Reservoir Yes
Tube Outside Diameter 2.5
Cylinder Diameter 2.5
Service Parts 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Add-On Part 93500 - 15-23 F150 & 17-22 FSD IIC INSTALL KIT
Width 15.00 in
Length 39.00 in
Depth 9.00 in
Weight 35.0000 lb
Brand: ICON Vehicle Dynamics

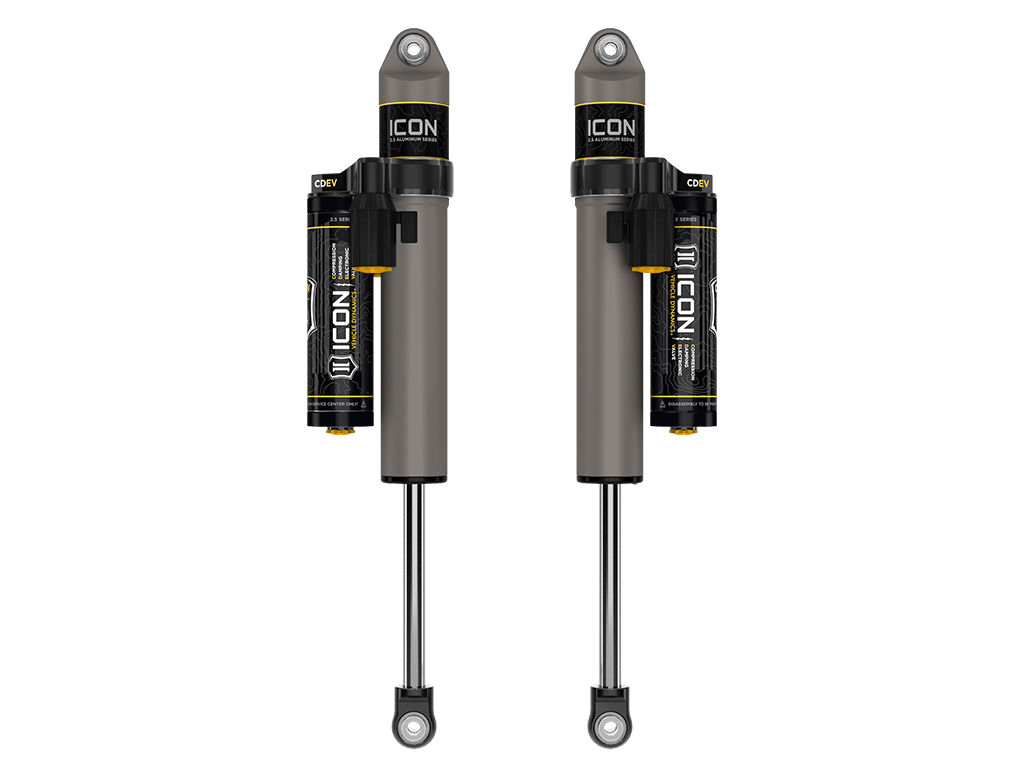

ICON 2017-2024 Ford F-250/F-350 Super Duty 4WD, 3-6” Lift, Rear, V.S. 2.5 Aluminum Series Shock Absorbers, Piggyback Reservoir w/ CDEV, Pair

37701EP

1 in stock

$1,994.95 $1,519.96
