51016

ICON 2022-2023 Toyota Tundra, 3" Lift Rear Coil Spacer Kit

Product Details

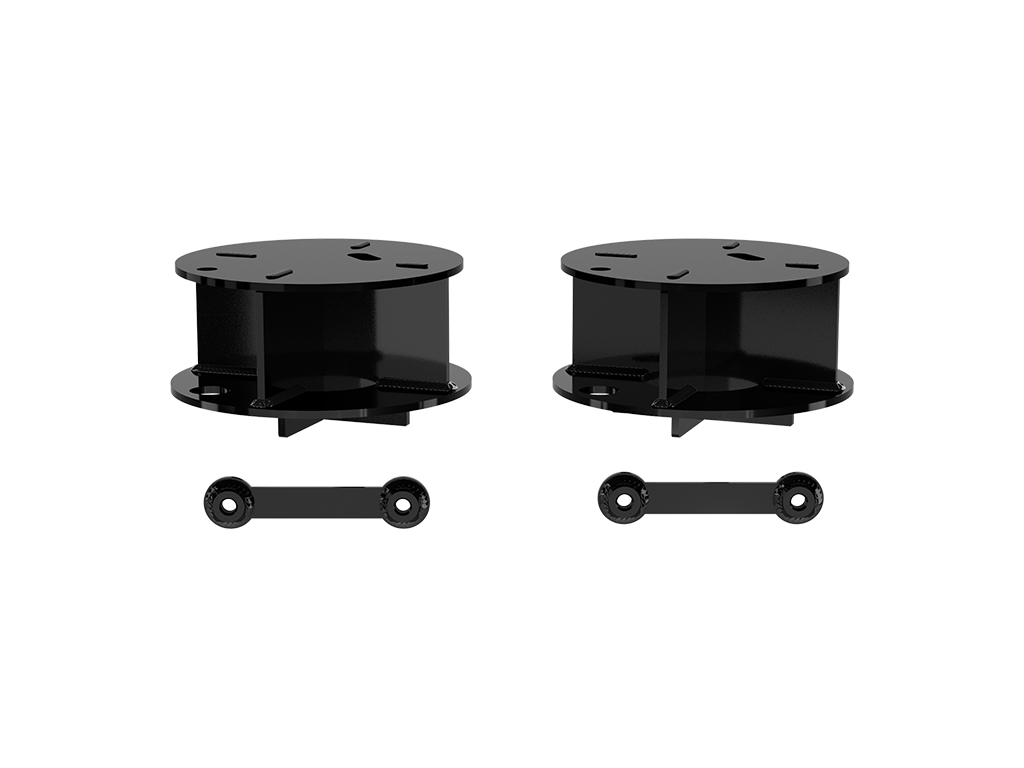

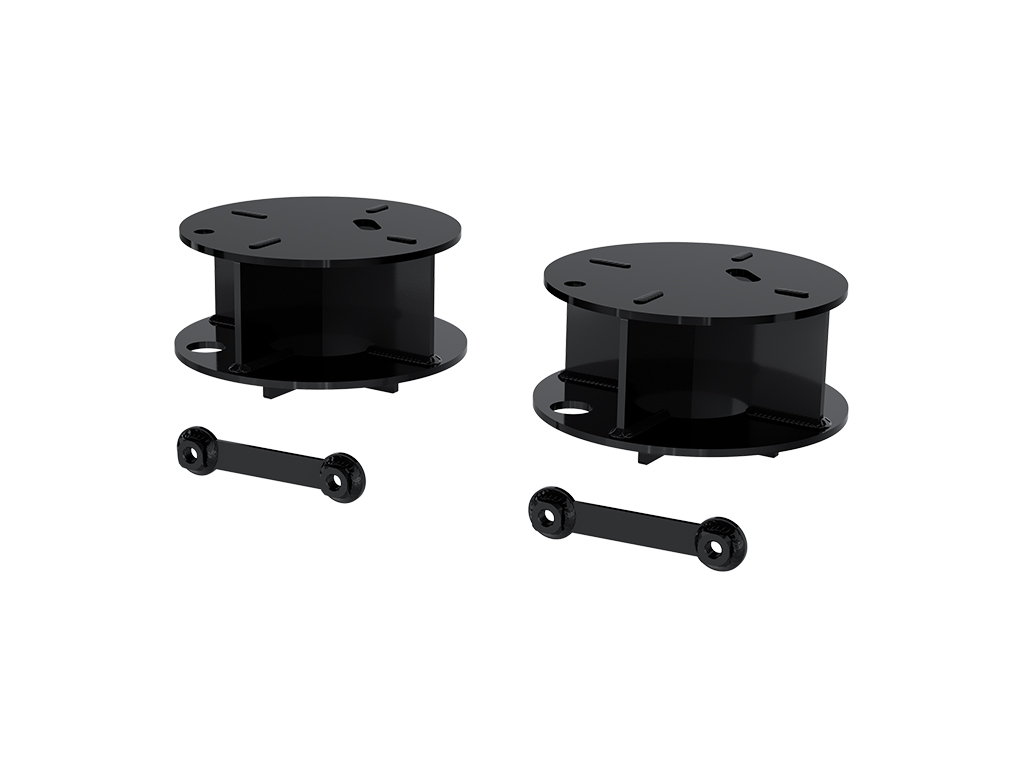

The ICON 3” Lift Rear Coil Spacer Kit is used as part of the ICON 6” Lift Performance Suspension System for the 2022-2023 Toyota Tundra and allows the OE rear coil springs to be reused to obtain the required rear lift at a lower cost while still allowing the option to upgrade to ICON Triple Rate Rear Coil Springs in the future. These high-quality spacers are fabricated from CNC laser cut steel and powder coated with a semi-gloss black finish.

Allows use of OE rear coil springs with ICON 6” Lift Performance Suspension System
Lower cost option compared to ICON Triple Rate Rear Coils
Compatible with 2WD and 4WD models
Fabricated steel construction
Durable semi-gloss black powder coat finish
ICON Limited Lifetime Warranty

Technical Notes

OEM Wheels & Tires Fitment: No
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension
APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
TECH NOTE: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Toyota Tundra (2022-2023)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: No Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range. APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles TECH NOTE: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
UPC	00840103425542
Material	Steel
Finish	Powder Coated
Color	Black
Width	8.00 in
Length	19.00 in
Depth	9.00 in
Weight	17.0000 lb
