ICON 07-UP FJ/03-UP 4RNR/08-UP LC 200/03-UP GX BILLET LOWER TRAILING ARM KIT

ICON 2007-2014 FJ Cruiser/2003-2024 4Runner/2008-2021 Land Cruiser/03-23 Lexus GX, Billet Lower Trailing Arm Kit

Product Details

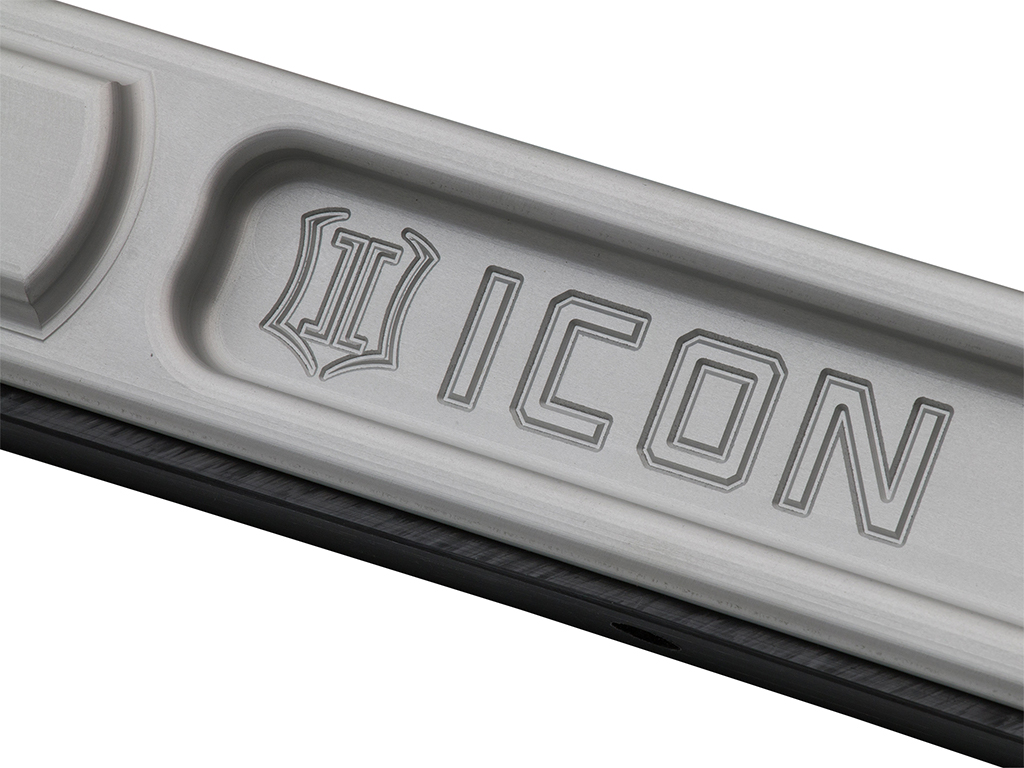

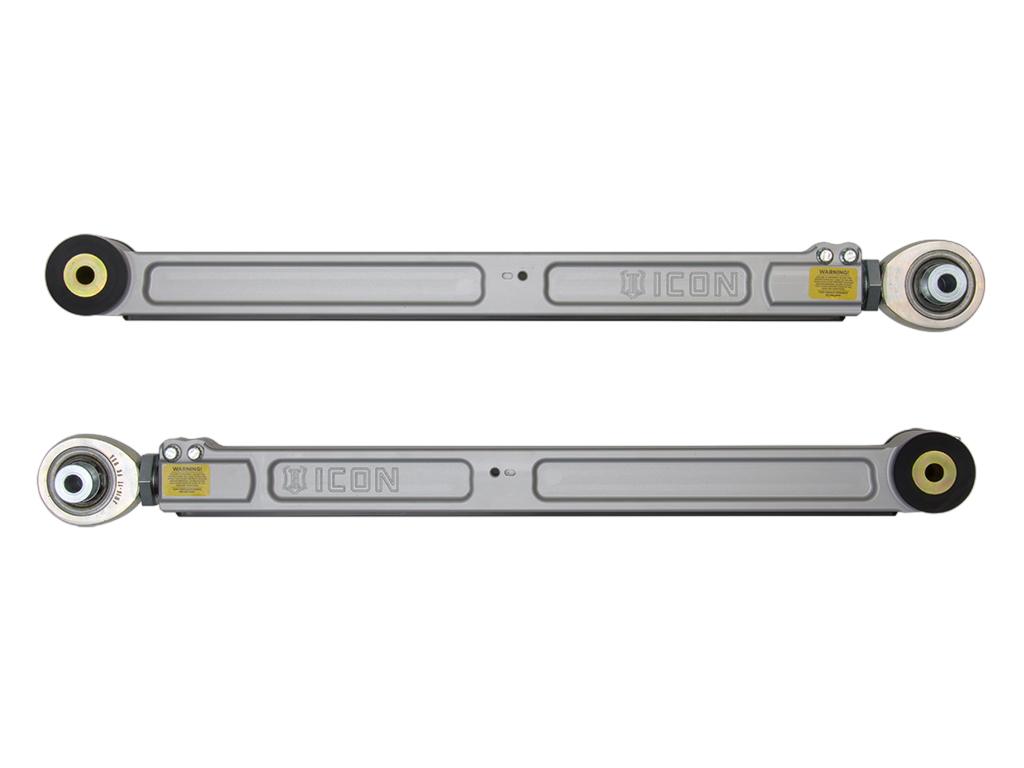

ICON's Billet Aluminum Rear Trailing Arms for the Toyota FJ Cruiser, 4Runner, 200 Series Land Cruiser, and Lexus GX are a great replacement for weak factory lower links. These trailing arms are light, strong, and have been engineered to increase the off-road ride quality the vehicle. Constructed out of 6061 CNC-machined billet aluminum, these arms also stand out when bolted up on the vehicle. They include 16T Rod Ends that have a load rating of over 40,000 lbs of pressure as well as a dual rate bushing on the axle side for excellent articulation characteristics with minimal deflection. A replaceable nylon rock slider is incorporated into the design of the arm to prevent any hang-ups on the trail.

On vehicle length adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
Vehicle specific, high clearance design for reduced link contact with obstacles
Replaceable Nylon Rock Slider to protect the link from damage
CNC machined 6061 aluminum construction
Large FK Bearing JMX16T PTFE-lined rod ends
Greaseable, multi-piece polyurethane bushings for maximum angularity and noise isolation
Covered by ICON’s Limited Lifetime Warranty

Technical Notes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
UPC	00840103402826
Bushing Material	Polyurethane
Bushing Color	Black
Adjustable	yes
Material	Aluminium
Finish	Anodized
Bushings Included	yes
Color	Gray
Construction	Billet
Control Arm Construction	Billet
Service Parts	614509 - 54000 BUSHING AND SLEEVE KIT
Add-On Part	191013 - NIPPLE GREASING ADAPTER KIT
Width	8.00 in
Length	30.00 in
Depth	4.00 in
Weight	24.0000 lb
