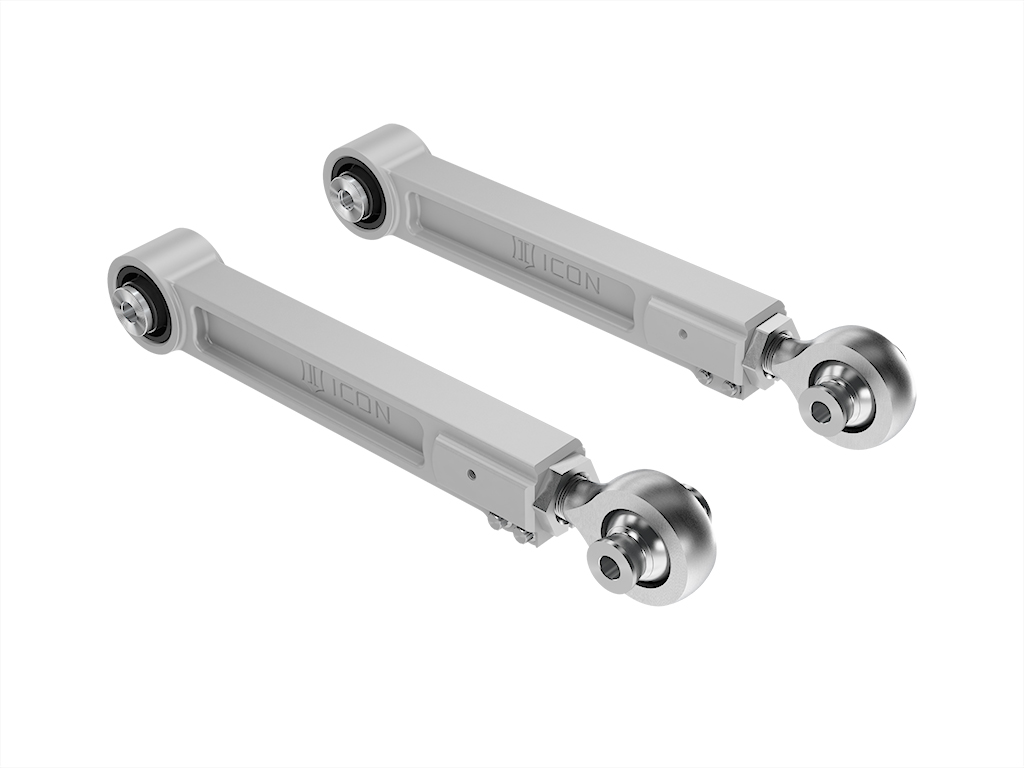

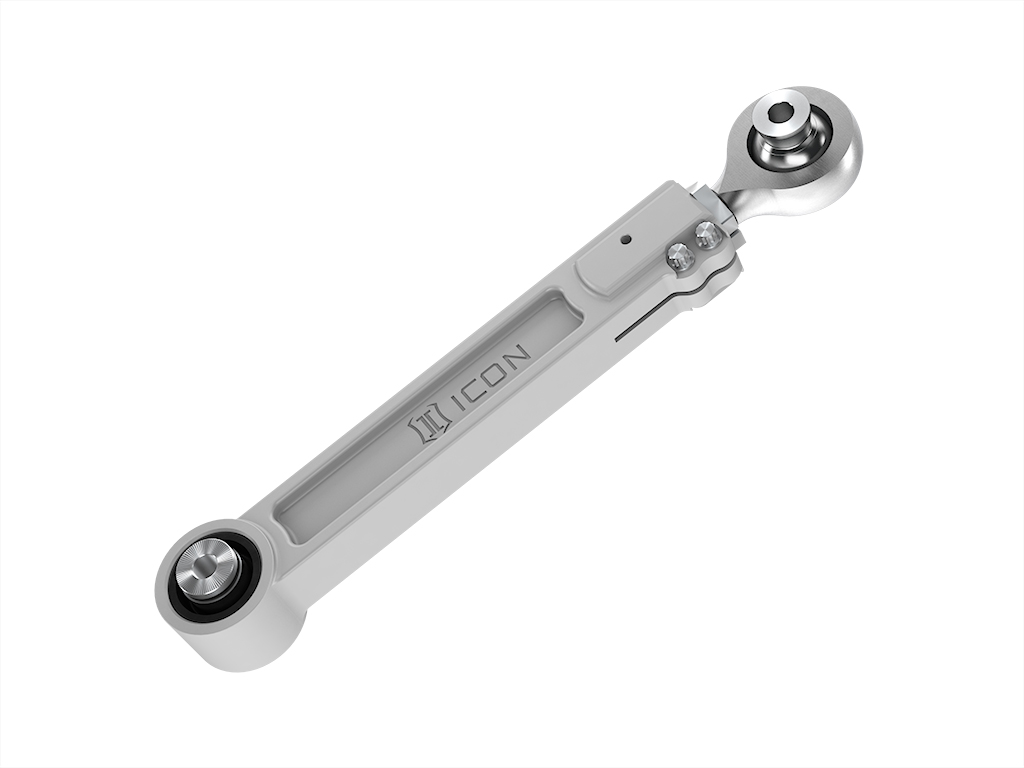

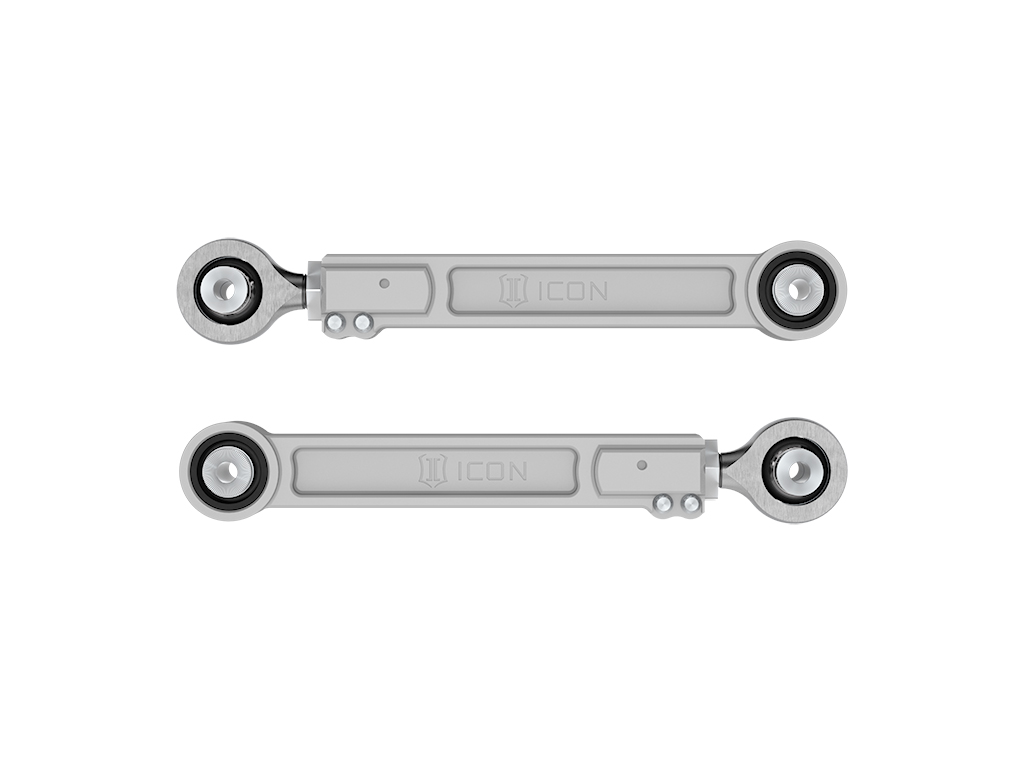

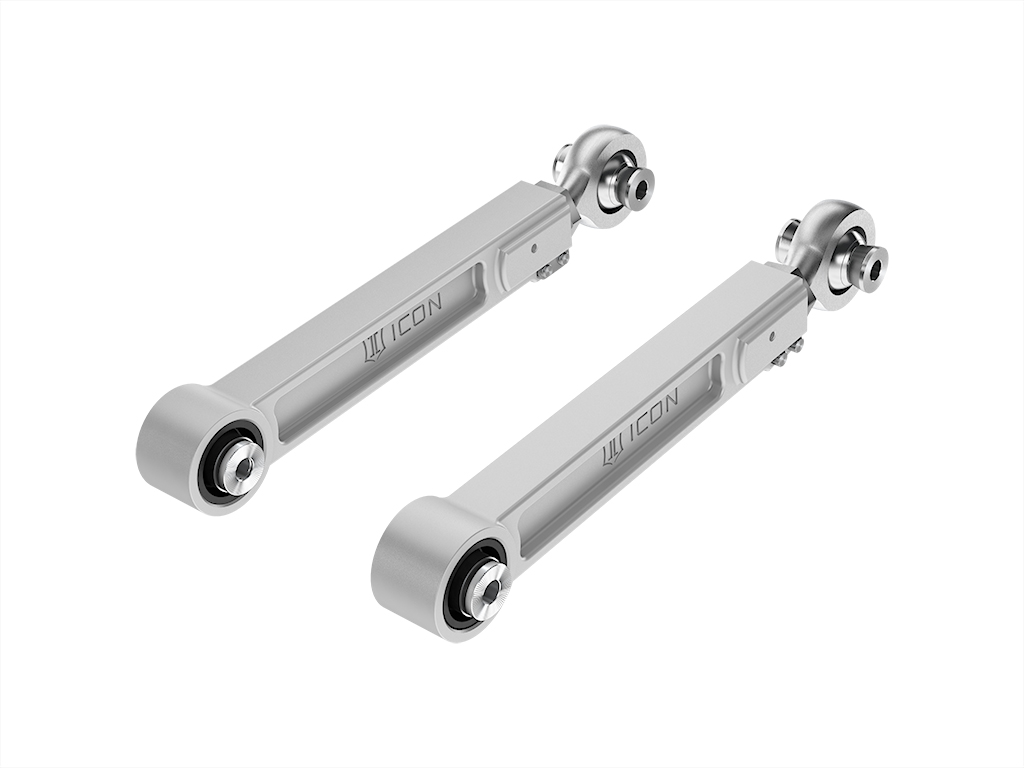

ICON 2022-Up Toyota Tundra Billet Rear Upper Link Kit

ICON 2022-2024 Toyota Tundra/2023-2024 Toyota Sequoia/2024 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Rear Billet Upper Link Kit

Product Details

ICON’s billet aluminum rear upper link arms for the 2022-2024 Toyota Tundra, 2023-2024 Toyota Sequoia, 2024 Toyota Tacoma, 2024 Toyota Land Cruiser 250 Series, and 2024 Lexus GX550 are a significant upgrade over the factory units due to increases in strength, adjustability, and performance. These links are made from CNC machined 6061 aluminum in-house and anodized for corrosion resistance, providing a major improvement over the construction of the stock units. This rear upper link arm kit features PTFE-lined FK rod ends for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability using ICON’s double adjuster system. Additionally, multi durometer bushings are installed that allow for noise free operation and maximum angularity without the need for periodic greasing and/or other maintenance. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. After the design phase was completed ICON engineers put these parts through the “ICON1K” real-world test cycle for a final stamp of approval.

Vehicle specific design
On vehicle adjustment for different ride heights and pinion angles using ICON's Double Adjuster System
CNC machined 6061 aluminum construction
Large FK Bearing JMX16T PTFE-lined rod ends
Maintenance free, dual durometer bushings for maximum angularity and noise isolation
Covered by ICON’s Limited Lifetime Warranty

Technical Notes

APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
TECH NOTE: Tundra/Sequoia equipped with Load-leveling Rear Height Control Air Suspension and/or automatic leveling headlights also require part number 55153
TECH NOTE: Land Cruiser 250 Series and GX550 also require Sensor Bracket part number 55161
TECH NOTE: Compatible with ICON 2022-2024 Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs TECH NOTE: Tundra/Sequoia equipped with Load-leveling Rear Height Control Air Suspension and/or automatic leveling headlights also require part number 55153 TECH NOTE: Land Cruiser 250 Series and GX550 also require Sensor Bracket part number 55161 TECH NOTE: Compatible with ICON 2022-2024 Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers
UPC	00840103414386
Bushing Material	Polyurethane
Bushing Color	Silver
Adjustable	Yes
Material	Aluminum
Finish	Anodized
Bushings Included	Yes
Color	Gray
Construction	Billet
Control Arm Construction	Billet
Add-On Part	54003 - 24 LC250/24 GX550 BILLET REAR LOWER LINK KIT
Width	8.00 in
Length	30.00 in
Depth	4.00 in
Weight	18.0000 lb
