54102T

ICON 2022-2024 Toyota Tundra/2023-2024 Toyota Sequoia/2024 Toyota Tacoma/2024 Toyota Land Cruiser 250 Series/2024 Lexus GX550, Rear Tubular Upper Link Kit

Product Details

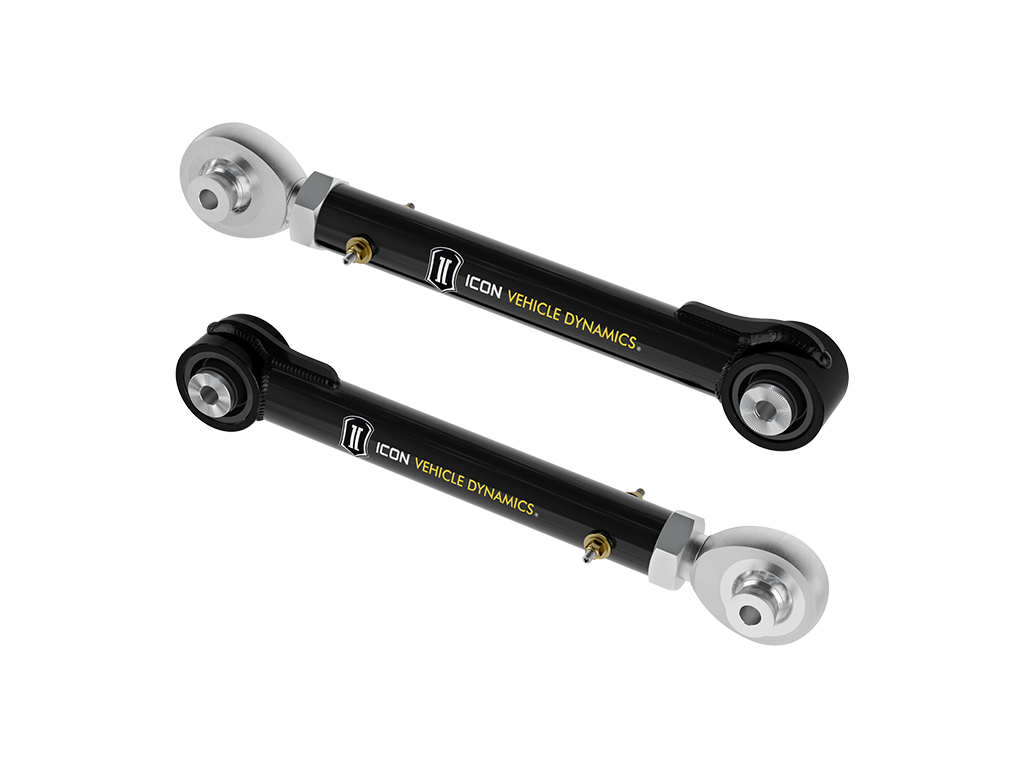

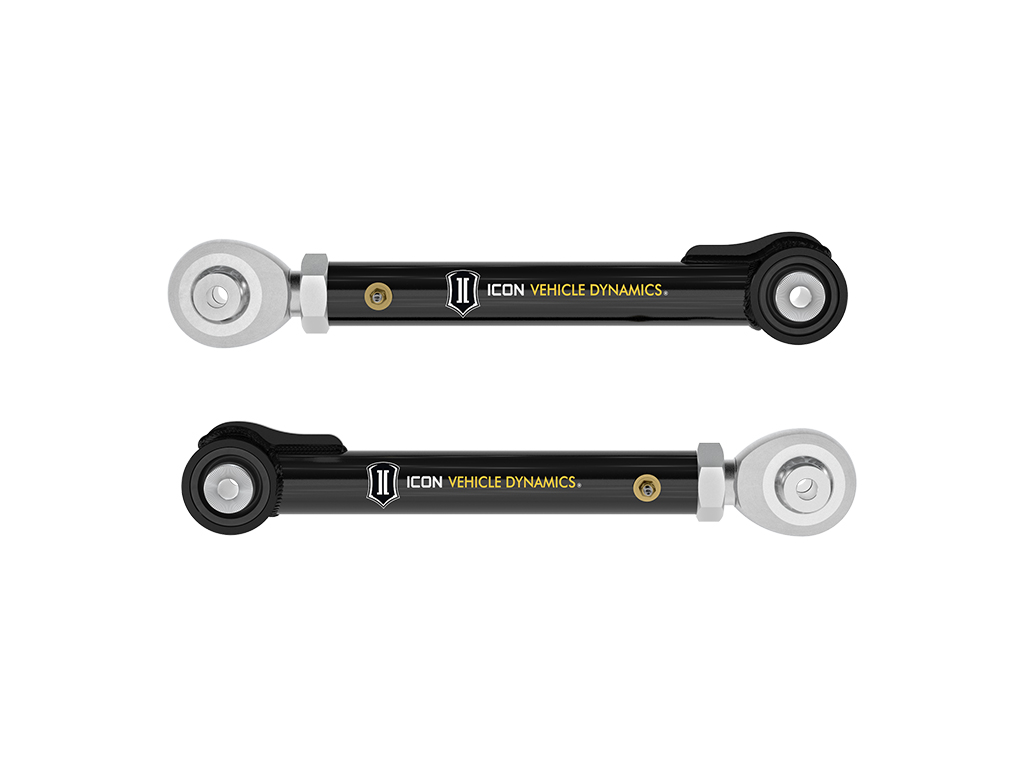

The ICON Tubular Rear Upper Link System helps free up rear axle movement on the 2022-2024 Toyota Tundra, 2023-2024 Toyota Sequoia, 2024 Toyota Tacoma, 2024 Toyota Land Cruiser 250 Series, and the 2024 Lexus GX550 to allow for increased suspension travel and articulation. Formed using 1 ¾” x .313 wall DOM Tubing for high strength, with CNC machined threaded ends and bushing housings, and feature a multi-stage black powder coat finish. These upper links are designed with massive FK Rod End at one end, along with a dual-durometer, high angle greaseless bushing at the other end yields the best combination of maximum travel and articulation while isolating and damping road noise and vibrations. The quality rod ends and bushings featured in these link arms allow the vehicle’s suspension to function as intended, without the bushing bind that limits the vehicle in stock form. Hit the trail with the confidence of knowing your suspension components are covered by ICON’s Limited Lifetime Warranty.

Adjustable for various lift heights & driveline angles
Help free rear suspension bind compared to OE links
CNC machined & notched 1026 DOM steel construction with semi-gloss black powder coat finish
Multi durometer bushings for noise free operation and maximum angularity
No grease required for life of bushings
Quality JM16T PTFE-lined FK Rod Ends
Fabricated components covered under ICON's Limited Lifetime Warranty

Technical Notes

APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs
TECH NOTE: Tundra/Sequoia equipped with Load-leveling Rear Height Control Air Suspension and/or automatic leveling headlights also require part number 55153
TECH NOTE: Land Cruiser 250 Series and GX550 also require Sensor Bracket part number 55161
TECH NOTE: Compatible with ICON 2022-2023 Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	APPLICATION NOTE #164: Will not fit Tacoma submodels equipped with rear leaf springs TECH NOTE: Tundra/Sequoia equipped with Load-leveling Rear Height Control Air Suspension and/or automatic leveling headlights also require part number 55153 TECH NOTE: Land Cruiser 250 Series and GX550 also require Sensor Bracket part number 55161 TECH NOTE: Compatible with ICON 2022-2023 Tundra 6" Lift Performance Suspension System but may not be compatible with 6" lift kits from other manufacturers
UPC	00840103428833
Bushing Material	Polyurethane
Bushing Color	Black
Adjustable	Yes
Material	DOM Steel
Finish	Powdercoated
Bushings Included	Yes
Color	Black
Construction	Tubular
Control Arm Construction	Tubular
Add-On Part	55153 - 22-24 TUNDRA/23-24 SEQUOIA AIR RIDE/AUTO HEADLIGHT BRACKET KIT
Width	8.00 in
Length	30.00 in
Depth	4.00 in
Weight	23.0000 lb
