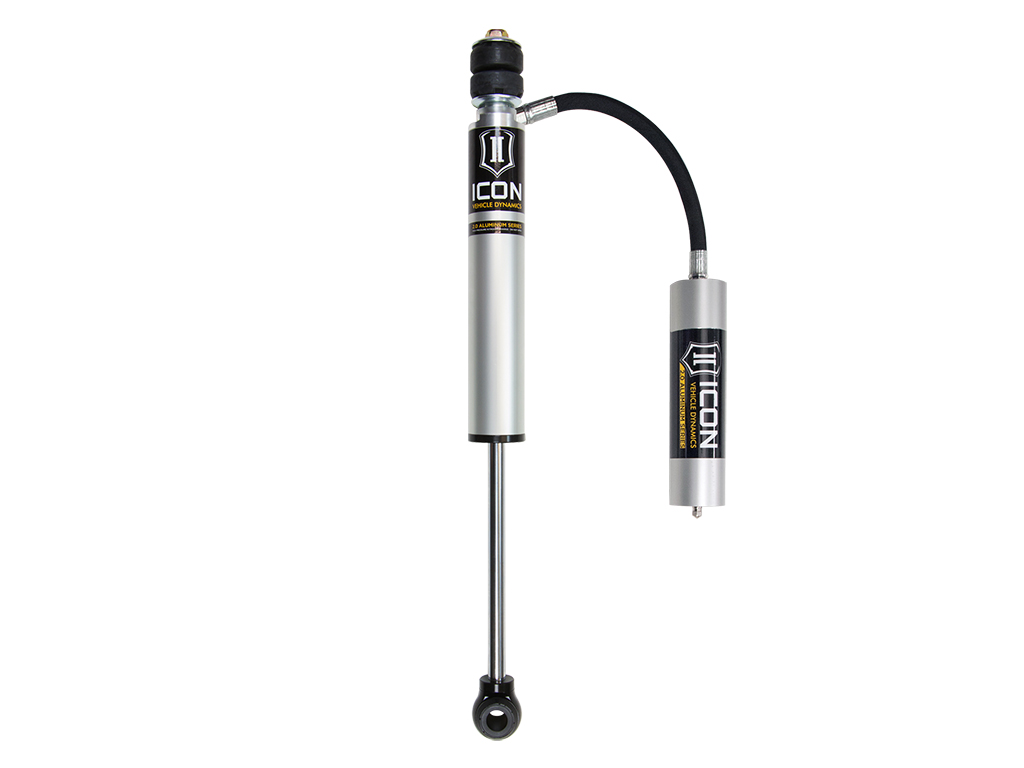

ICON 2022-Up Toyota Tundra Rear 2.0 VS Shock, Remote Reservoir

ICON 2022-2024 Toyota Tundra, 0-1.5" Lift/2023-2024 Sequoia, 0-3" Lift, Rear, V.S. 2.0 Aluminum Series Shock Absorber, Remote Reservoir

Product Details

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
5/8” chrome plated hardened steel shaft resists corrosion and pits
6061 aluminum rod end, top cap, and internals ensure strength and durability
Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
Nitrile rubber top out bumper for noise free operation
Fully rebuildable and re-tunable

Technical Notes

TECH NOTE: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs
TECH NOTE: Compatible with 0-3” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension
TECH NOTE: Compatible with 0-3” of rear lift on non-TRD Sequoias or 0-1" lift on TRD Sequoias
TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Compatible with 0-1.5” of rear lift on non-TRD Tundras or 0-1" lift on TRD Tundras equipped with rear coil springs TECH NOTE: Compatible with 0-3” of rear lift on Tundras equipped with rear OE Load-leveling Rear Height Control Air Suspension TECH NOTE: Compatible with 0-3” of rear lift on non-TRD Sequoias or 0-1" lift on TRD Sequoias TECH NOTE: If upgrading a vehicle equipped with Adaptive Variable Suspension (AVS) all other vehicle systems remain functional
UPC	00840103414676
Bushing Material	Rubber
Bushing Color	Black
Material	Aluminum
Finish	Anodized
Body Diameter	2
Remote Reservoir	Yes
Color	Gray
Adjustable Damping	No
Shaft Diameter	0.625
Cylinder Color	Gray
Shaft Material	Chrome
Cylinder Material	Aluminum
External Reservoir	Yes
Service Parts	202003 - 2.0 REMOTE RESI REBUILD KIT
Width	7.00 in
Length	40.00 in
Depth	3.00 in
Weight	8.0000 lb
