57827P

Product Details

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • Nitrogen charged monotube design with remote reservoir
  • 100% Rebuildable
  • 100% Revalveable
  • One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
  • Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
  • 6061 aircraft grade aluminum CNC machined components
  • ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
  • PTFE lined spherical bearings and application specific mounting hardware
  • 7/8” diameter induction hardened, chrome plated shock shaft
  • All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
  • One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road

Technical Notes

  • TECH NOTE: Compatible with Land Cruiser 300 Series equipped with 0-2" of rear lift over stock

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • TECH NOTE: Compatible with Land Cruiser 300 Series equipped with 0-2" of rear lift over stock
UPC 00840103423562
Adjustable Damping No
Shaft Diameter 0.875
Cylinder Color Grey
Shaft Material Chrome
Cylinder Material Aluminum
External Reservoir Yes
Tube Outside Diameter 2.5
Service Parts 611007 - 9/16 MEDIUM DUTY STEM BUSHING KIT
Add-On Part 252012 - -4 TO -10 HOSE SHIELD KIT
Width 15.00 in
Length 39.00 in
Depth 9.00 in
Weight 28.0000 lb
Brand: ICON Vehicle Dynamics

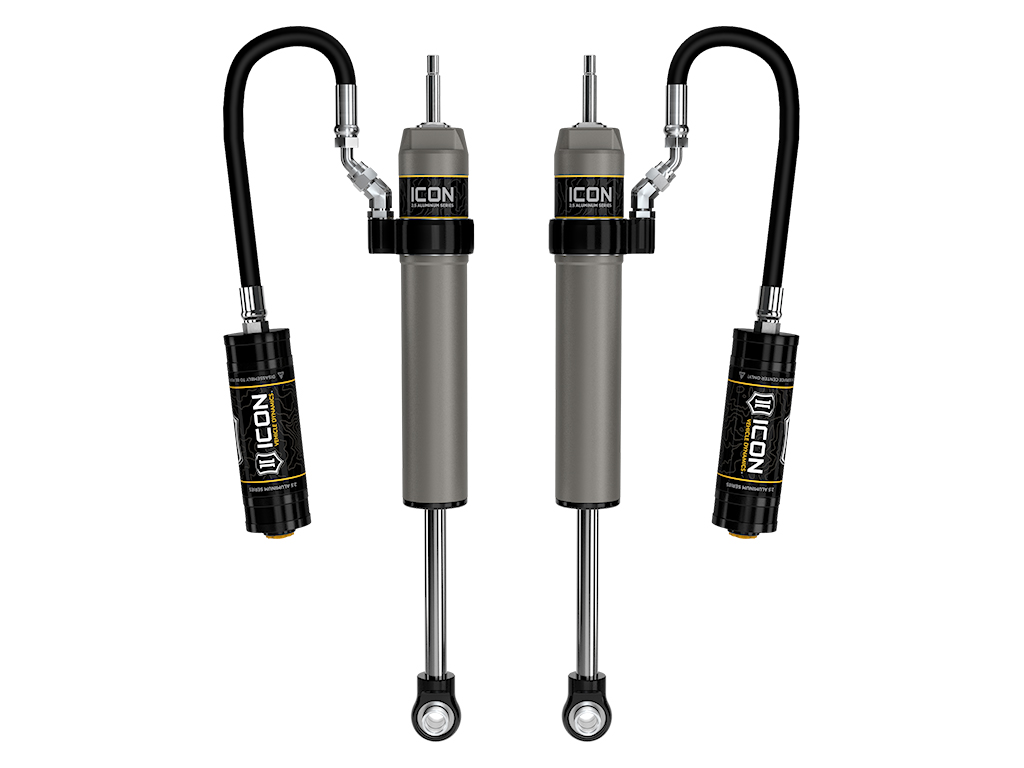

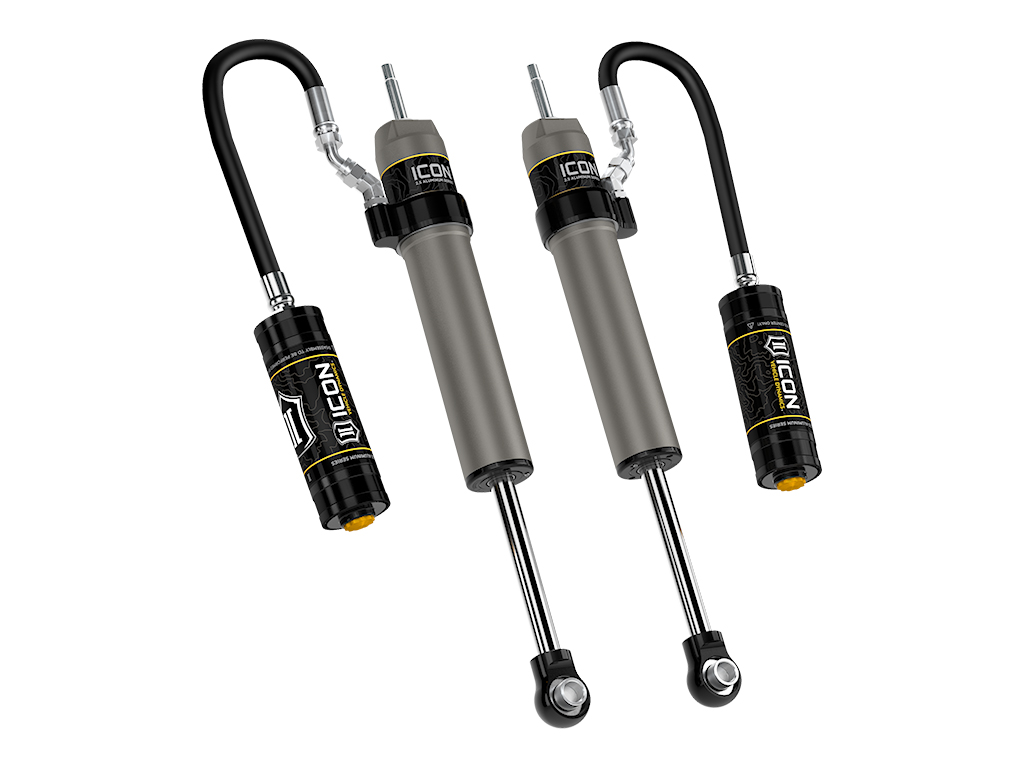

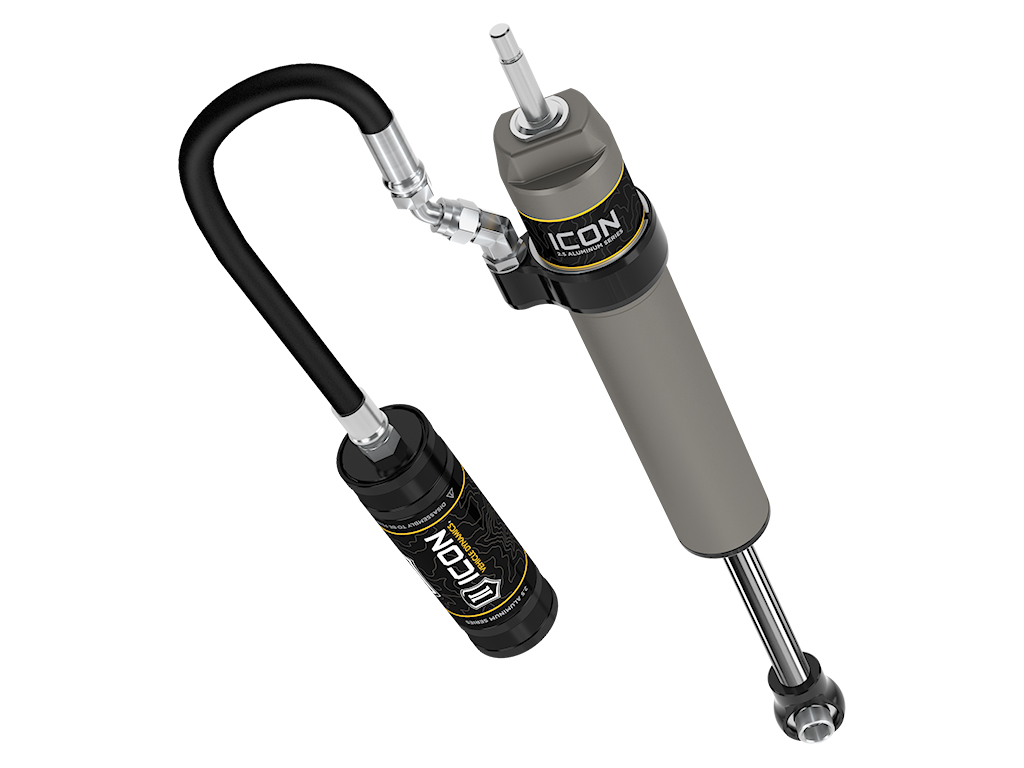

ICON 2022-2023 Toyota Land Cruiser 300 Series, 0-2” Lift, Rear, 2.5 VS Remote Reservoir Shocks, Pair

57827P

20 in stock

$1,081.45
Please make a selection for each of the required (*) options above before adding item to cart.
Warehouse Availability
  • CA 20
  • KY 0
  • MN 0
  • TX 0
  • WA 0
