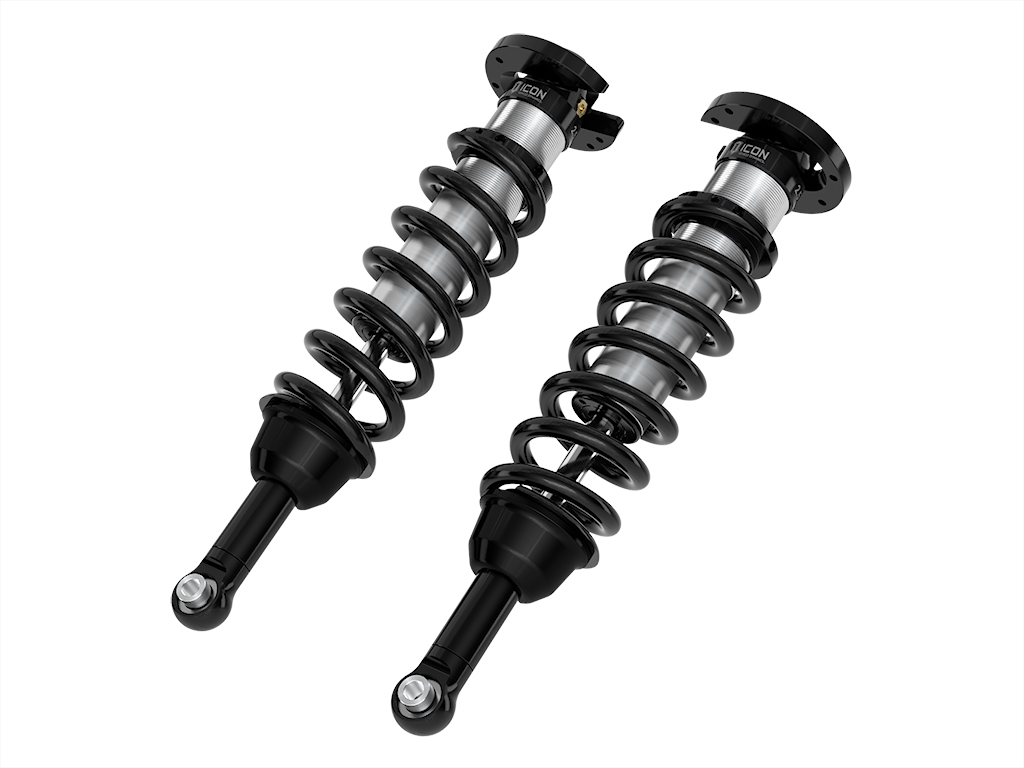

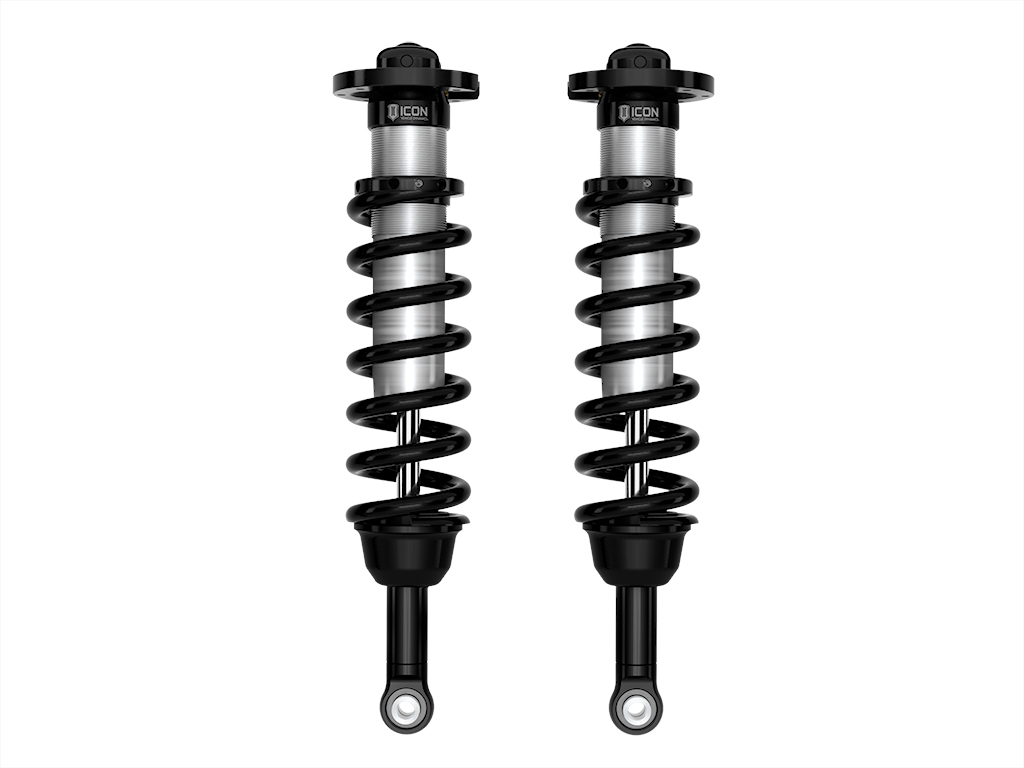

ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair

Product Details

ICON Vehicle Dynamics V.S. 2.5 Series internal reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.

  • Increased wheel travel and improved ride quality over stock
  • Vehicle specific tuned for superior shock damping and control
  • Specific length designed for use with ICON 6" Lift Performance Suspension System
  • Adjustable ride height offers 5-6" of front lift over stock
  • ICON engineered coil springs
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
  • FK rod end bearings for extended longevity and minimal deflection
  • Fully rebuildable and re-tunable

Technical Notes

  • OEM Wheels & Tires Fitment: No
  • TECH NOTE: Requires ICON front upper control arms.
  • TECH NOTE: Requires minimum of 20" diameter wheels.
  • TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
  • TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
  • TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
  • TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
  • APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
  • APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
  • APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles.
  • APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install.
  • TECH NOTE: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: No
  • TECH NOTE: Requires ICON front upper control arms.
  • TECH NOTE: Requires minimum of 20" diameter wheels.
  • TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
  • TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
  • TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
  • TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
  • Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
  • APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
  • APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
  • APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles.
  • APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install.
  • TECH NOTE: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
UPC 00840103425573
Maximum Lift 6
Material Steel
Body Diameter 2.5
Remote Reservoir NO
Adjustable Height Yes
Spring Rate Type Linear
Spring Color Black
Adjustable Damping NO
Shaft Diameter 0.875
Service Parts 252010 - 2.5 IFP REBUILD KIT
Add-On Part 198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment No
Recommended Aftermarket Tires 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels 20x9" w/ 5.625” Backspace / 16mm Offset
Minimum Lift 5
Width 13.00 in
Length 31.00 in
Depth 7.00 in
Weight 55.0000 lb
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair
Brand: ICON Vehicle Dynamics

ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Internal Reservoir Front Coilover Kit, Pair

58672

4 in stock

$1,730.35
