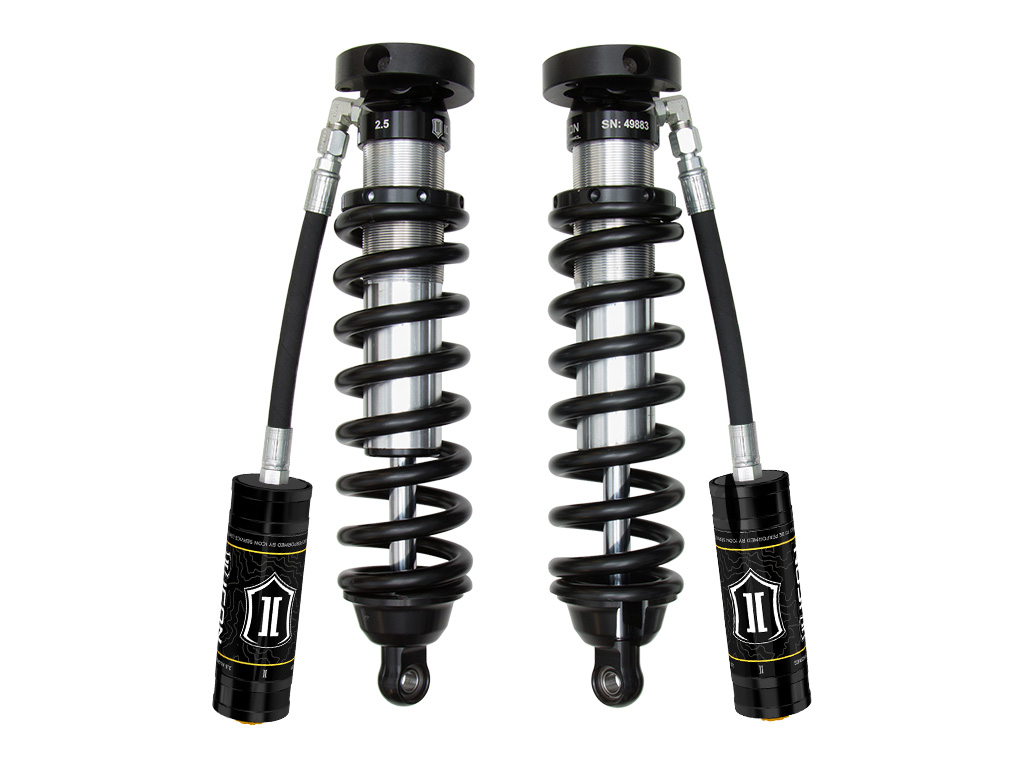

ICON VEHICLE DYNAMICS 96-02 4RUNNER EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB

Product Details

ICON Vehicle Dynamics V.S. Series 2.5” remote reservoir coilover shocks are an incredible upgrade for the front end of the 1996-2002 Toyota 4Runner. ICON’s Vehicle-specific valving provides a sport tuned feel on and off-road while offering 0-3” of lift height adjustability for use of larger, more aggressive wheel and tire combinations. The larger 2.5” shock body and increased piston area over stock components provides improved damping ability and outstanding ride characteristics across varying types of terrain. Remote reservoirs ensure optimum performance by increasing the duration of consistent damping regardless of situation, keeping the shocks at a cooler operating temperature during heavy use. When paired with ICON rear 2.0 Aluminum Series or 2.5" Series shocks, vehicle control will be balanced front to rear resulting in the best overall driving experience for your 4Runner.

  • Increased wheel travel over ICON standard travel coilovers
  • FK Rod End bearings for extended longevity and minimal deflection
  • 100% Bolt-on - no cutting or welding necessary for installation
  • Vehicle specific tuned front shocks for superior shock damping and control
  • External reservoir to attain cooler operating temperatures during extended off-road use
  • Improved ride quality over stock both on and off-road
  • Height-adjustable coilovers offer 0-3" of lift height adjustment
  • ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
  • 6061 Aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated shock body with 7/8" induction hardened, chrome plated shaft

Technical Notes

  • OEM Wheels & Tires Fitment: Yes
  • TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
  • APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
  • APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
  • APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • OEM Wheels & Tires Fitment: Yes
  • TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00” Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
  • APPLICATION NOTE #35: Remote reservoir mounting brackets may interfere with aftermarket bumper mounts/windshield washer bottles
  • APPLICATION NOTE #55: Shocks are fully serviceable. Coilover heights indicated are for a stock equipped vehicle
  • APPLICATION NOTE #111: Bump stop spacer kit available that can be installed to increase threads showing beyond max recommendation
UPC 00840103409733
Maximum Lift 3
Material Steel
Spring Rate 700
Body Diameter 2.5
Remote Reservoir Yes
Adjustable Height yes
Spring Rate Type Linear
Spring Color Black
Adjustable Damping NO
Shaft Diameter 0.875
Cylinder Color Silver
Cylinder Material Steel
Service Parts 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Add-On Part 198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Width 12.00 in
Length 27.00 in
Depth 8.00 in
Weight 51.0000 lb
Brand: ICON Vehicle Dynamics

ICON 1996-2002 Toyota 4Runner, 0-3" Lift, Front, V.S. 2.5 Series Coilover Kit, Extended Travel, Remote Reservoir, 700 lbs/in Spring Rate

58716-700

1 in stock

$2,099.95
Please make a selection for each of the required (*) options above before adding item to cart.
Warehouse Availability
  • CA 1
  • TX 0
  • KY 0
  • MN 0
  • WA 0
