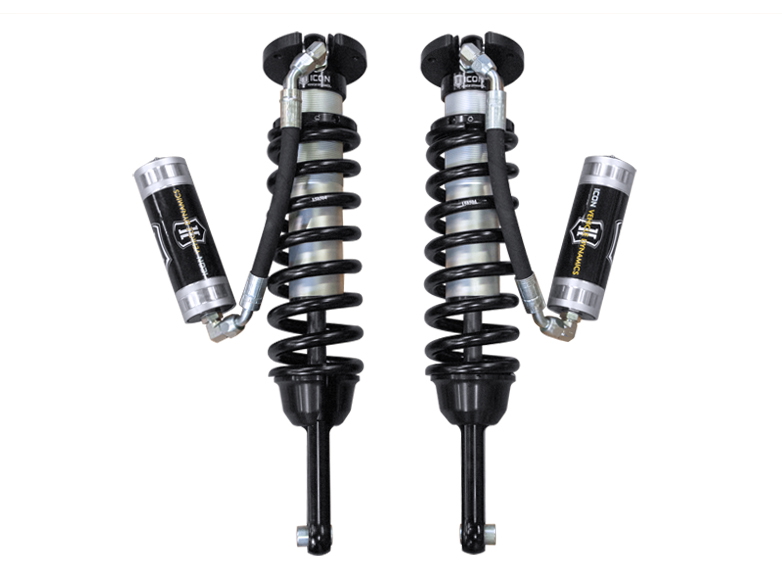

ICON VEHICLE DYNAMICS 05-UP TACOMA EXT TRAVEL 2.5 VS RR COILOVER KIT 700LB

ICON 2005-2023 Toyota Tacoma 2.5 VS Extended Travel Remote Reservoir Coilover Kit, 700 lbs/in Coils

Product Details

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2005-2023 Toyota Tacoma. These adjustable coilovers allow up to 0-3.5” of lift height adjustability on 2005-2015 models or 0-2.75” of lift height adjustability on 2016-2023 models, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Their extended travel length allows for more wheel travel but also requires the installation of aftermarket front upper control arms. To better support the weight of additional accessories such as aftermarket front bumpers and winches, these coilovers include ICON engineered coil springs with an increased, 700 lbs/in spring rate, allowing for taller ride heights with increased front end weight. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tacoma.

Height-adjustable coilovers offer 0-3.5" or 0-2.75" of lift height adjustment depending on year model
Hose Length Optimized for Increased Fluid Transfer
External Reservoirs Ensures Maximum Cooling
ICON engineered coil springs with 700 lbs/in spring rate are more ideal for heavier equipped front ends
Vehicle specific tuned for superior shock damping and control
Extended Travel length requires installation of aftermarket front upper control arms
Kit Includes Sway bar relocation brackets
Kit also Includes Reservoir Mounting Brackets for Optimum Tire Clearance
CAD-plated threaded body
Billet aluminum upper mount
5/8" PTFE-lined spherical bearings
Completely re-buildable

Technical Notes

OEM Wheels & Tires Fitment: Yes
APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum
TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information.
TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models
TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock
TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75”
APPLICATION NOTE #110: Trimming Required For Recommended Tire Size

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes APPLICATION NOTE #111: Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25” Beyond Maximum TECH NOTE: 700lb/in spring rate only recommended for trucks with additional weight added to front end. See ICON Help Center for information. TECH NOTE: Will not fit 2005-2015 2WD 5-Lug Toyota Tacoma models TECH NOTE: 2005-2015 Toyota Tacoma will have front lift height range of 0-3.5" over stock TECH NOTE: 2017-2023 Tacoma TRD Pro models will have front lift height range of 0-1.25" over stock Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5.00” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #18: These systems are to be used with aftermarket upper control arms only APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle APPLICATION NOTE #109: 2016-2023 Tacoma Lift Range Is 0-2.75” APPLICATION NOTE #110: Trimming Required For Recommended Tire Size
UPC	00840103404295
Maximum Lift	3.5
Material	Steel
Spring Rate	700
Body Diameter	2.5
Remote Reservoir	Yes
Adjustable Height	yes
Spring Rate Type	Linear
Spring Color	Black
Adjustable Damping	NO
Shaft Diameter	0.875
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Width	12.00 in
Length	27.00 in
Depth	8.00 in
Weight	55.0000 lb
