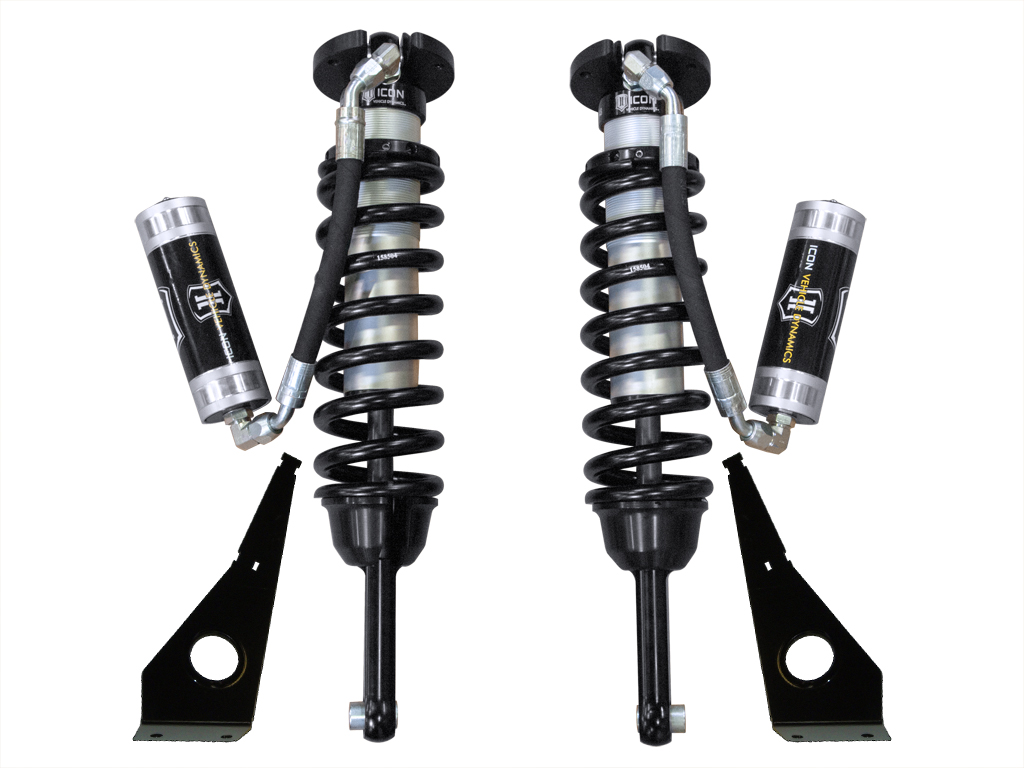

ICON VEHICLE DYNAMICS 07-09 FJ/03-09 4RUNNER 2.5 VS RR COILOVER KIT

Product Details

ICON Vehicle Dynamics has taken their already perfect performing coilover shocks and given it the heat dissipation and long lasting performance of a full blown race shock. All of this has been developed to bolt on and install with ease. They increase suspension travel and dramatically increase the capabilities of your FJ Cruiser or 4Runner's front suspension. These coilovers come complete with all the hardware necessary to complete the installation as well as a sway bar relocation bracket kit to adjust the location of the sway bar to clear the larger shock.

  • Adjustable ride height from 0" - 3"
  • Mounting Bracket Orients Reservoir for Optimum Tire Clearance
  • External Reservoir Ensures Maximum Cooling
  • Chrome-silicon spring
  • 250 PSI nitrogen-charged internal reservoir
  • Race shock piston with flutter stack compression valving
  • Kit Includes Sway bar relocation brackets
  • Kit also Includes Reservoir Mounting Brackets
  • Cad-plated threaded body / Extreme Weather Plating Option Available
  • Billet aluminum upper mount
  • 5/8" PTFE-lined spherical bearing
  • Completely re-buildable
  • Hose Length Optimized for Increased Fluid Transfer

Technical Notes

  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Warranty Information

Warranty information unavailable

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • Factory Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: 8.5" wide wheel with 4.75" backspace
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
UPC 00840103404325
Spring Rate 650
Body Diameter 2.5
Remote Reservoir Yes
Adjustable Height yes
Spring Color Black
Adjustable Damping NO
Shaft Diameter 0.875
Service Parts 252003 - SEAL INSTALL TOOL 2.5/3.0
Add-On Part 198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment Yes
Recommended Aftermarket Tires 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Width 12.00 in
Length 27.00 in
Depth 8.00 in
Weight 52.0000 lb
Brand: ICON Vehicle Dynamics

ICON 03-09 4Runner/2007-09 FJ Cruiser, 2.5 VS Remote Reservoir Coilover Kit

58740

2 in stock

$1,889.95
