ICON 2022-2023 Toyota Tundra, 5-6" Lift, 2.5 Remote Reservoir Front Coilover Kit, Pair

Product Details

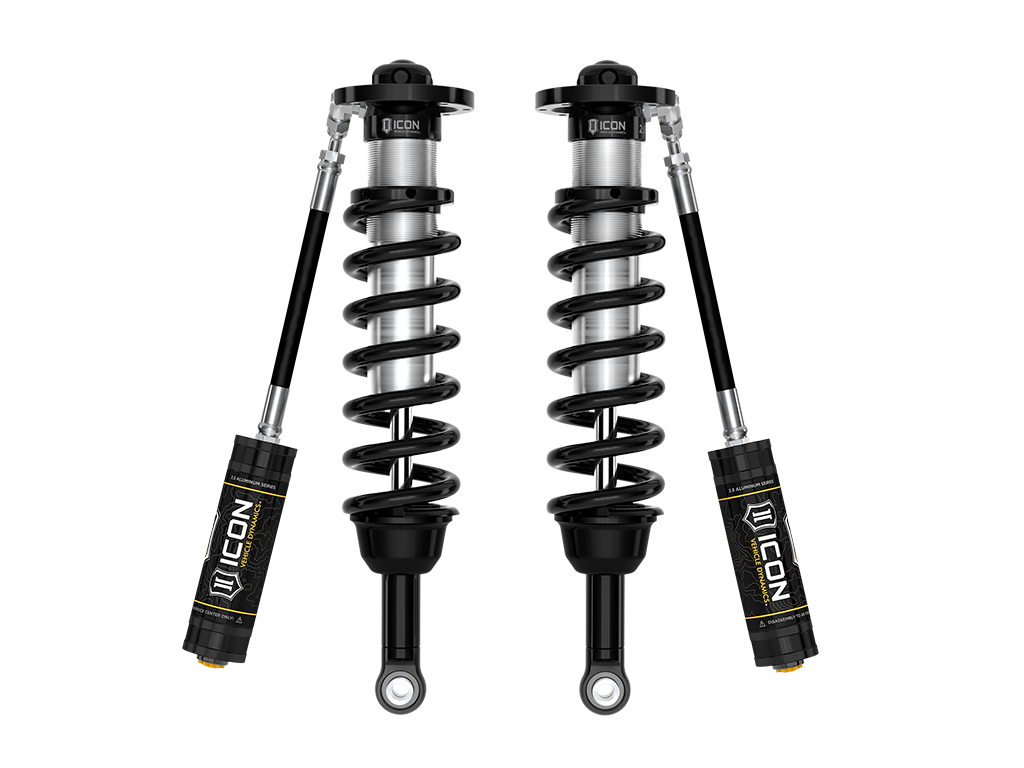

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. When paired with ICON 2.0 or 2.5 Aluminum Series rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.

Increased wheel travel and improved ride quality over stock
Fully rebuildable and re-tunable
Vehicle specific tuned for superior shock damping and control
Specific length designed for use with ICON 6" Lift Performance Suspension System
Adjustable ride height offers 5-6" of front lift over stock
Remote reservoirs maintain cooler operating temperatures during extended off-road use
ICON engineered coil springs
6061 Aircraft grade aluminum CNC machined components
Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
FK rod end bearings for extended longevity and minimal deflection

Technical Notes

OEM Wheels & Tires Fitment: No
TECH NOTE: Requires ICON front upper control arms.
TECH NOTE: Requires minimum of 20" diameter wheels.
TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock.
TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock.
TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock.
TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock.
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles.
APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install.
TECH NOTE: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Toyota Tundra (2022-2023)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: No TECH NOTE: Requires ICON front upper control arms. TECH NOTE: Requires minimum of 20" diameter wheels. TECH NOTE: Most Tundra sub-models equipped with i-Force gasoline engine will have front lift height range of 5-6" over stock. TECH NOTE: Most Tundra sub-models equipped with i-Force MAX hybrid engine will have front lift height range of 4.5-5.5" over stock. TECH NOTE: Tundra SR5 with TRD Sport package will have front lift height range of 6-7" over stock. TECH NOTE: Tundra TRD Pro will have front lift height range of 3.25-4.25" over stock. Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #55: Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle. APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range. APPLICATION NOTE #142: Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension. APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles. APPLICATION NOTE #155: May Require Recalibration Of Toyota Safety Sense System After Install. TECH NOTE: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
UPC	00840103425580
Maximum Lift	6
Material	Steel
Body Diameter	2.5
Remote Reservoir	Yes
Adjustable Height	Yes
Spring Rate Type	Linear
Spring Color	Black
Adjustable Damping	NO
Shaft Diameter	0.875
Service Parts	252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment	No
Recommended Aftermarket Tires	37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
Recommended Aftermarket Wheels	20x9" w/ 5.625” Backspace / 16mm Offset
Minimum Lift	5
Width	13.00 in
Length	31.00 in
Depth	8.07 in
Weight	62.0000 lb
