Product Details

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks are an incredible upgrade for the front end of the 2022-2023 Toyota Tundra. These adjustable coilovers are specifically designed for use the ICON 6" Lift Performance Suspension System and allow up to 5-6” of front lift height adjustability, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5” shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle. Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly. When paired with 2.5 Aluminum Series CDEV rear shock absorbers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Toyota Tundra.

• Increased wheel travel and improved ride quality over stock
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• Vehicle specific tuned for superior shock damping and control
• Specific length designed for use with ICON 6" Lift Performance Suspension System
• Adjustable ride height offers 5-6" of front lift over stock
• Remote reservoirs maintain cooler operating temperatures during extended off-road use

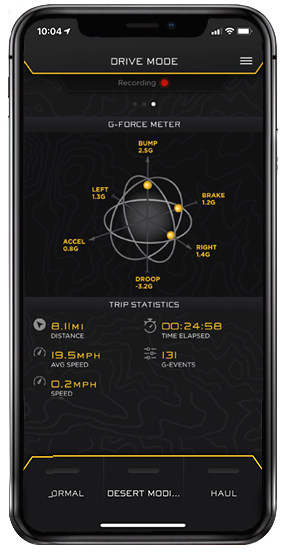

• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON engineered coil springs
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8" diameter shafts
