ICON VEHICLE DYNAMICS 08-16 FSD 4WD 7-9" 2.5 VS RR COILOVER KIT

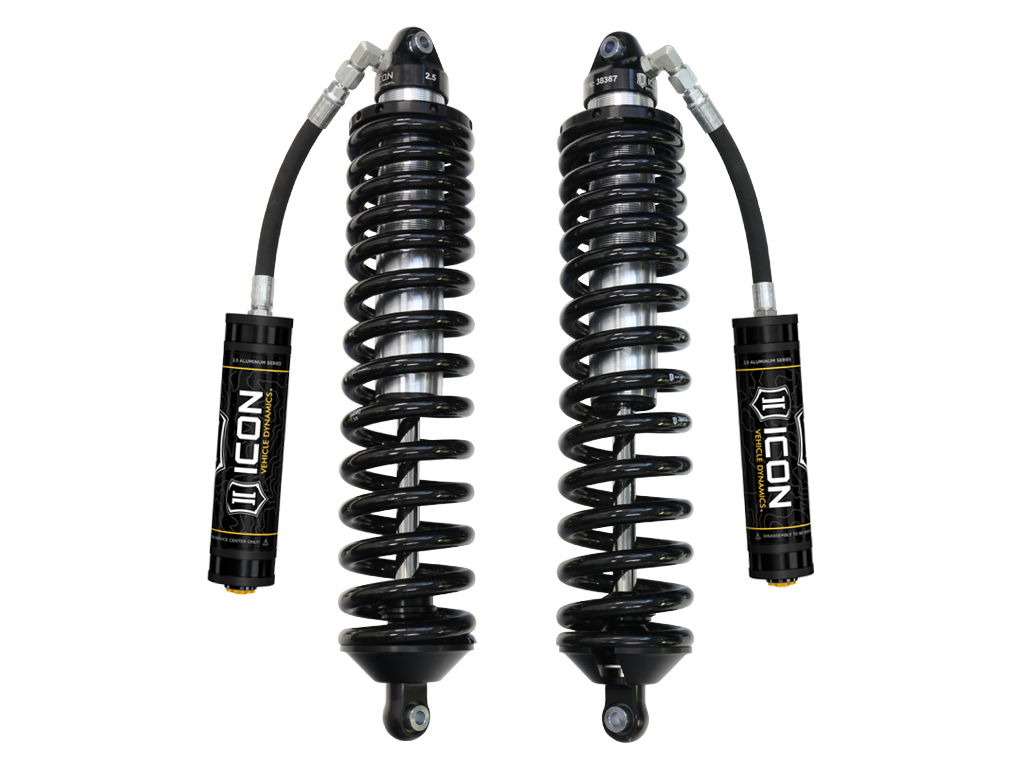

ICON 2008-16 Ford F250/350 4WD 7-9” Lift Front 2.5 VS RR Coilover Conversion Kit

Product Details

These coil-over shocks are the ultimate suspension modification for your Super Duty. These are not race style shocks that were modified to fit they were designed from the ground up for the 2008 - 2016 Super Duty. They are adjustable in ride height from 7" to 9" of lift. They have any external Reservoir for excellent heat dissipation, a Dual Rate Spring for a great ride quality on or off-road, and are completely Rebuilable.

Technical Notes

Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
ICON Coilover Conversion Hoops Part # 61950L & 61950R required for installation

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required) ICON Coilover Conversion Hoops Part # 61950L & 61950R required for installation
UPC	00840103405377
Body Diameter	2.5
Remote Reservoir	Yes
Adjustable Height	yes
Spring Color	Black
Adjustable Damping	NO
Shaft Diameter	0.875
Service Parts	191015 - 10" FINNED RESI UPGRADE KIT
Add-On Part	198000 - 2 PIN COILOVER SPANNER WRENCH KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Width	13.00 in
Length	31.00 in
Depth	7.00 in
Weight	82.0000 lb
