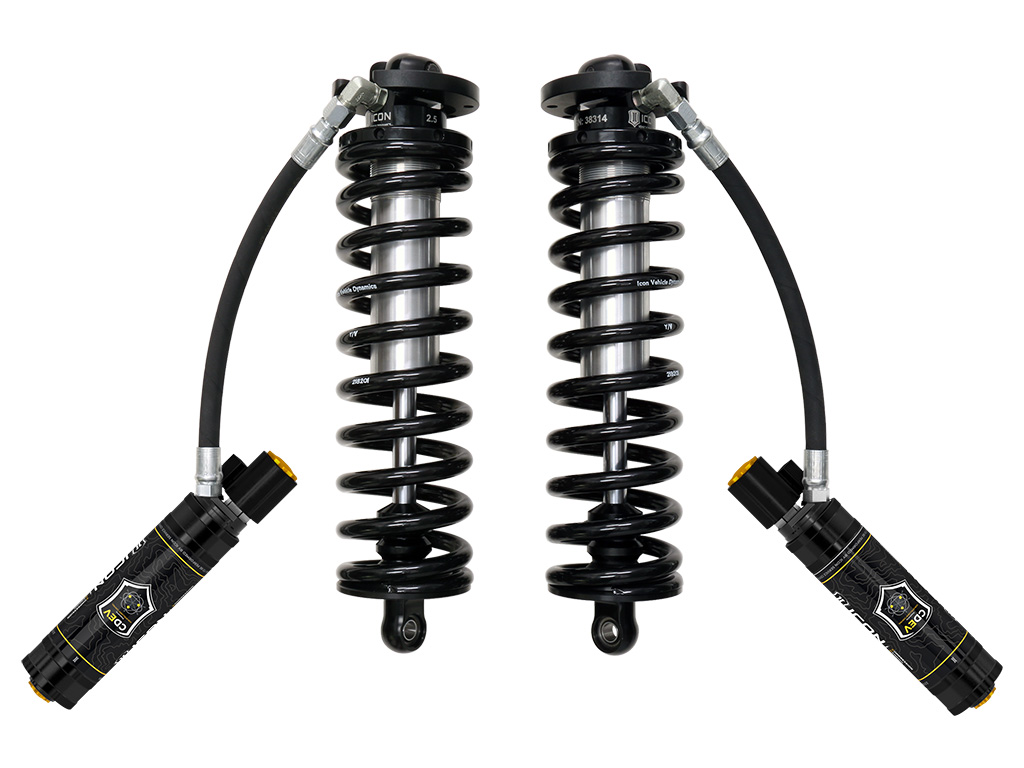

ICON 17-UP FSD 4WD 2.5-3" 2.5 VS RR CDEV BOLT IN CO CONVERSION KIT

ICON 2017-2023 Ford F-250/F-350 Super Duty 4WD, 2.5” Lift, 2.5 VS Remote Reservoir w/ CDEV Coilover Conversion Kit

Product Details

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2017-2023 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON’s 2.5 VS Series shock line - meaning that features like ICON engineered coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-tuned as necessary. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.

Bolt-in system fits in OE coil bucket location
Fully rebuildable and re-tunable
Ride height adjustable coilovers (2.5-3" or 3.25-3.75” depending on year of vehicle)
ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
Decreased body roll and improved on and off-road ride dynamics
Vehicle-specific shock valving provides unparalleled ride quality and control
Coilover conversion allows for addition of optional secondary shocks
Corrosion resistant CAD plated coilover shock body with 7/8" shaft
ICON engineered coil springs guaranteed for life against sagging or breakage
FK Rod End bearings for extended longevity and minimal deflection

Technical Notes

OE Wheels & Tires Fitment: Yes

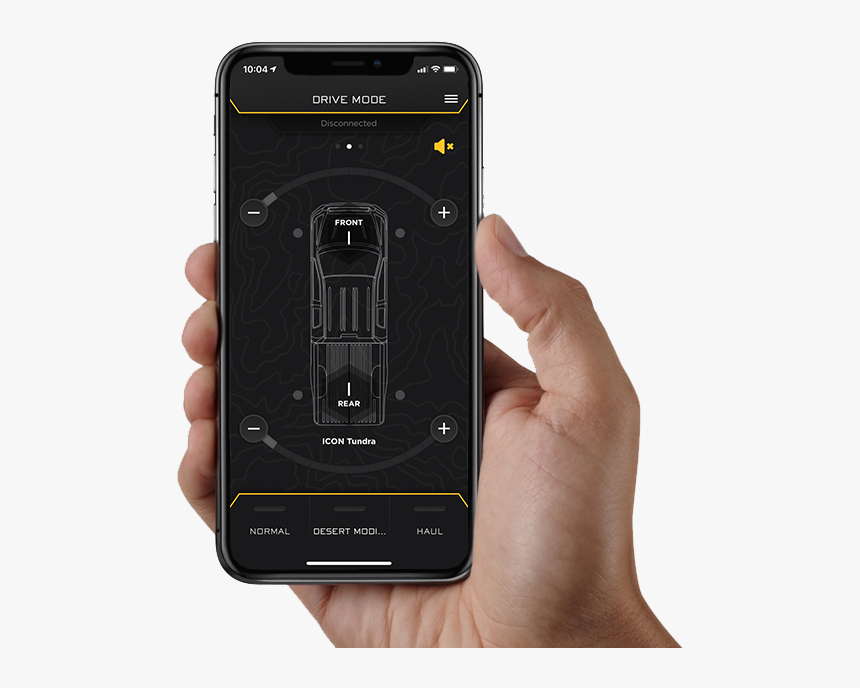

TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App
TECH NOTE: 2017-2019 Super Duty diesel models will have front lift height range of 2.5-3" over stock
TECH NOTE: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 3.25-3.75" over stock
TECH NOTE: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock
TECH NOTE: 2023 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock
TECH NOTE: 2023 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock
TECH NOTE: 2023 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock
TECH NOTE: 2023 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock
TECH NOTE: Will not fit 2024 models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users with 2017-2023 F-250/F-350 who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required
TECH NOTE: If installing with ICON 2.5 Aluminum Series CDEV remote reservoir secondary shocks part number 191207 is also required
TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service.
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: Only compatible with 4WD models
TECH NOTE: Removal of the coil centering cup in factory coil bucket required for installation
TECH NOTE: 2017-2022 Super Duty models also require installation of IIC part number 93500 and CDEV rear shock part number 37705EP
TECH NOTE: 2023-2024 Super Duty models also require installation of IIC part number 93502 and CDEV rear shock part number 37705EP

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OE Wheels & Tires Fitment: Yes TECH NOTE: An iOS operated device is required to run ICON Intelligent Control App TECH NOTE: 2017-2019 Super Duty diesel models will have front lift height range of 2.5-3" over stock TECH NOTE: 2020-2022 Super Duty diesel models without Tremor package will have front lift height range of 3.25-3.75" over stock TECH NOTE: 2020-2022 Super Duty diesel models equipped with Tremor package will have front lift height range of 2.25-2.75" over stock TECH NOTE: 2023 Super Duty diesel models without Tremor package will have front lift height range of 2.5-3" over stock TECH NOTE: 2023 Super Duty diesel models equipped with Tremor package will have front lift height range of 1.5-2" over stock TECH NOTE: 2023 Super Duty gas models without Tremor package will have front lift height range of 3-3.5" over stock TECH NOTE: 2023 Super Duty gas models equipped with Tremor package will have front lift height range of 2-2.5" over stock TECH NOTE: Will not fit 2024 models TECH NOTE: Brake line kit (Part # 61111) is optional for end users with 2017-2023 F-250/F-350 who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset TECH NOTE: If installing with ICON 2.5 Series remote reservoir secondary shocks, reservoir doubler kit part number 611003 is also required TECH NOTE: If installing with ICON 2.5 Aluminum Series CDEV remote reservoir secondary shocks part number 191207 is also required TECH NOTE: Due to tight clearances and varying placement of vehicle’s wiring harness in the upper front-passenger wheel well area, installer must ensure adequate clearance between the harness, coilover reservoir, and other components to prevent chafing/damage to wire harness. If adequate clearance cannot be achieved, please contact ICON Customer Service. Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Only compatible with 4WD models TECH NOTE: Removal of the coil centering cup in factory coil bucket required for installation TECH NOTE: 2017-2022 Super Duty models also require installation of IIC part number 93500 and CDEV rear shock part number 37705EP TECH NOTE: 2023-2024 Super Duty models also require installation of IIC part number 93502 and CDEV rear shock part number 37705EP
UPC	00840103414430
Maximum Lift	3.75
Material	Steel
Body Diameter	2.5
Remote Reservoir	Yes
Adjustable Height	Yes
Spring Rate Type	Linear
Spring Color	Black
Adjustable Damping	Yes
Shaft Diameter	0.875
Damping Adjustment Type	Electronic
Service Parts	257337 - 7/8 SHAFT 11.25 OAL, 7.00 TRAVEL
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels	ICON Alloys - 17x8.5" w/ 5.00” Backspace / 6mm Offset
Width	13.00 in
Length	31.00 in
Depth	8.00 in
Weight	71.0000 lb
