ICON VEHICLE DYNAMICS 20-UP FSD FRONT 2.5 DUAL RATE COIL KIT

ICON 2020-2022 Ford F-250/F-350 Super Duty 4WD Diesel, 2.5" Lift, Front, Dual Rate Coil Spring Kit

Product Details

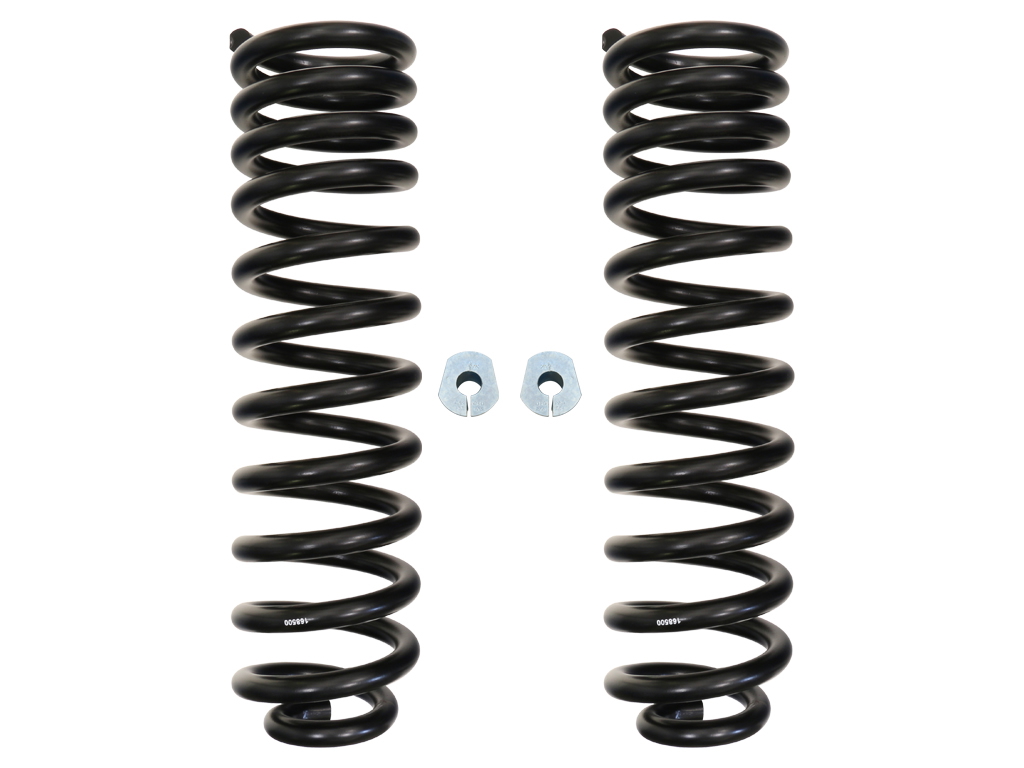

The ICON Vehicle Dynamics 2020-2022 Ford F-250 and F-350 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2020-2022 Ford Super Duty.

2.5" lift height
Dual rate coil springs improve on and off-road ride quality over stock
Dual-stage, semi-gloss powder coat offers excellent corrosion resistance
Caster cam kit included for ideal caster angles with ride height increase
100% bolt-on system makes for an easy install
Lifetime warranty against sagging/breakage

Technical Notes

Factory Wheels & Tires Fitment: Yes
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: Compatible with 4WD only
TECH NOTE: Springs rates optimized for use with trucks with diesel engines
TECH NOTE: Models equipped with Tremor package will have front lift height of 1.5" over stock
TECH NOTE: Not compatible with F-450 or F-550

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	Factory Wheels & Tires Fitment: Yes TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Compatible with 4WD only TECH NOTE: Springs rates optimized for use with trucks with diesel engines TECH NOTE: Models equipped with Tremor package will have front lift height of 1.5" over stock TECH NOTE: Not compatible with F-450 or F-550
UPC	00840103410982
Finish	Powdercoated
Maximum Lift Height	2.5
Front Spring Rate Type	Variable
Spring Color	Black
Add-On Part	61111 - 17-24 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Width	12.00 in
Length	27.00 in
Depth	6.00 in
Weight	65.0000 lb
