ICON 2023 Ford F-250/F-350 Super Duty 4WD Gas, 2.5" Lift, Front, Dual Rate Coil Spring Kit

Product Details

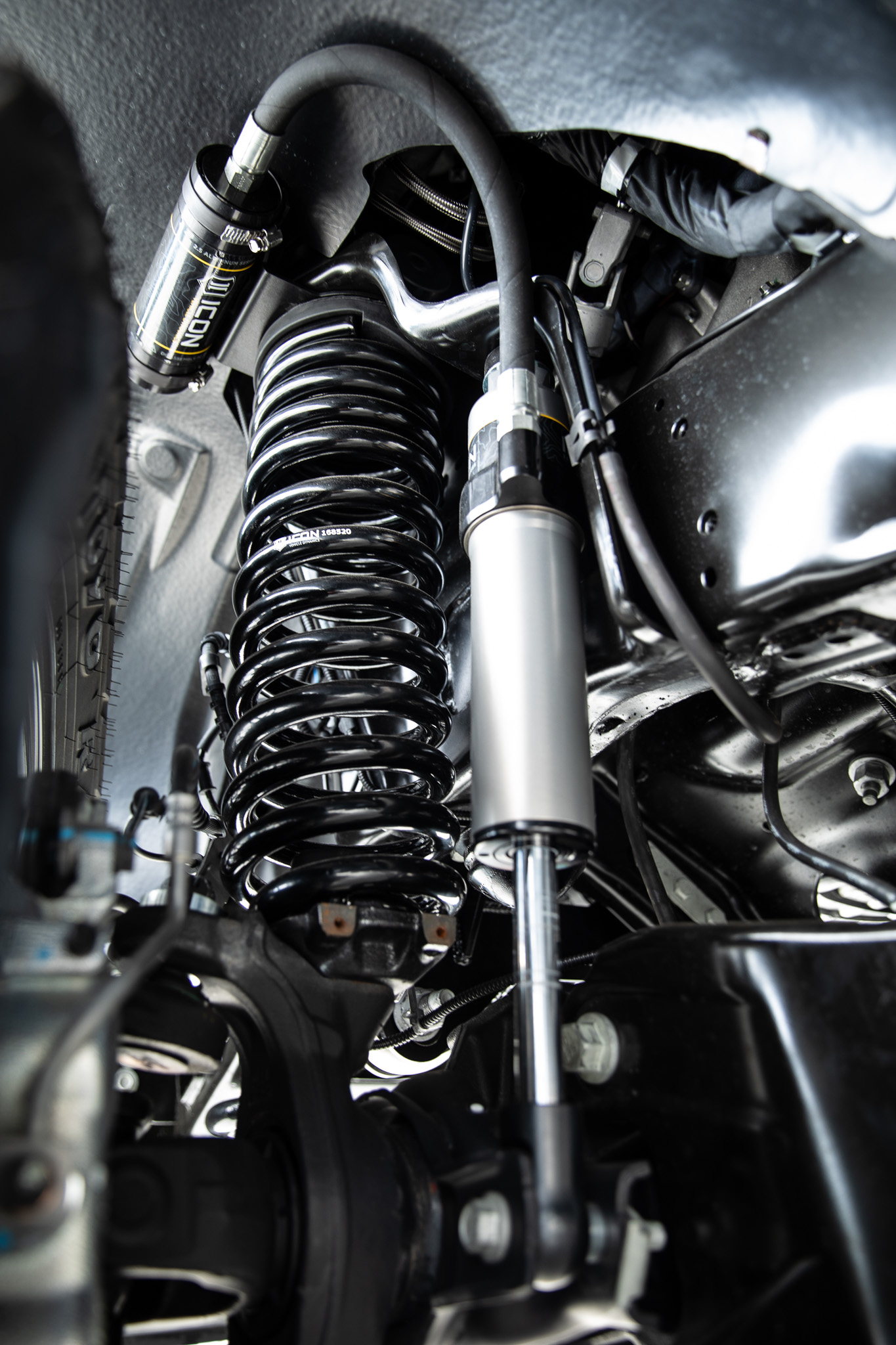

The ICON Vehicle Dynamics 2023 F-250 and F-350 Super Duty 2.5" coil springs are designed for drivers demanding the ultimate in performance and ride quality, while allowing for increased wheel travel (when used with ICON shocks) and the fitment of larger tires. The ICON Ford Super Duty coil springs provide 2.5" of lift height and feature a dual rate design optimized for use with trucks equipped with gasoline engines. The dual rate design allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Caster correction cams are also included to ensure proper caster angle with the new, taller ride height. Like all ICON coil springs, they feature a lifetime guarantee against sagging/breakage to produce confidence in knowing that you have the best suspension products available for the 2023 Super Duty.

2.5" lift height
Dual rate coil springs improve on and off-road ride quality over stock
Dual-stage, semi-gloss powder coat offers excellent corrosion resistance

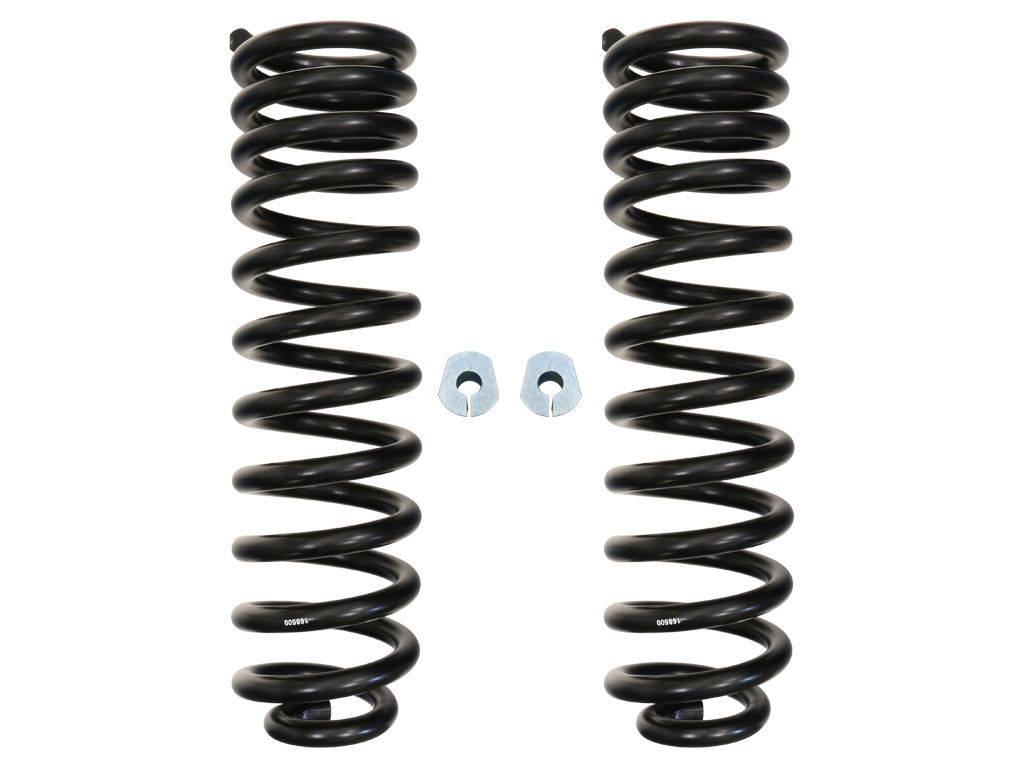

Caster cam kit included for ideal caster angles with ride height increase
100% bolt-on system makes for an easy install
Lifetime warranty against sagging/breakage

Technical Notes

Factory Wheels & Tires Fitment: Yes
TECH NOTE: Compatible with 4WD only
TECH NOTE: Models equipped with Tremor package will have front lift height of 1.5" over stock
TECH NOTE: Not compatible with F-450 or F-550
TECH NOTE: Will not fit 2024 models
TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install)
TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #30: An adjustable track bar may be needed to realign the axle from left to right, or to add additional atrength
APPLICATION NOTE #119: Rare cases require a 2.6 degree alignment cam on one side of vehicle for proper caster split
APPLICATION NOTE #156: Springs are rated for gasoline engines only
APPLICATION NOTE #157: Lift heights based on 4WD crew cab gas

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	Factory Wheels & Tires Fitment: Yes TECH NOTE: Compatible with 4WD only TECH NOTE: Models equipped with Tremor package will have front lift height of 1.5" over stock TECH NOTE: Not compatible with F-450 or F-550 TECH NOTE: Will not fit 2024 models TECH NOTE: Brake line kit (Part # 61111) is optional for end users who do not want to bend the factory steel lines or are looking for a braided stainless upgrade (not necessary for complete install) TECH NOTE: ICON track bar bracket part # 64039 is also recommended to correct bump steer geometry Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.) APPLICATION NOTE #30: An adjustable track bar may be needed to realign the axle from left to right, or to add additional atrength APPLICATION NOTE #119: Rare cases require a 2.6 degree alignment cam on one side of vehicle for proper caster split APPLICATION NOTE #156: Springs are rated for gasoline engines only APPLICATION NOTE #157: Lift heights based on 4WD crew cab gas
UPC	00840103426358
Material	Steel
Finish	Powdercoated
Maximum Lift Height	2.5
Front Spring Rate Type	Progressive Dual Rate
Spring Color	Black
Color	Black
Add-On Part	61111 - 17-24 FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Width	12.00 in
Length	27.00 in
Depth	6.00 in
Weight	65.0000 lb
