ICON VEHICLE DYNAMICS 05-UP FSD RADIUS ARM SYSTEM

ICON 2005-2022 Ford Super Duty 4WD, Radius Arm System

Product Details

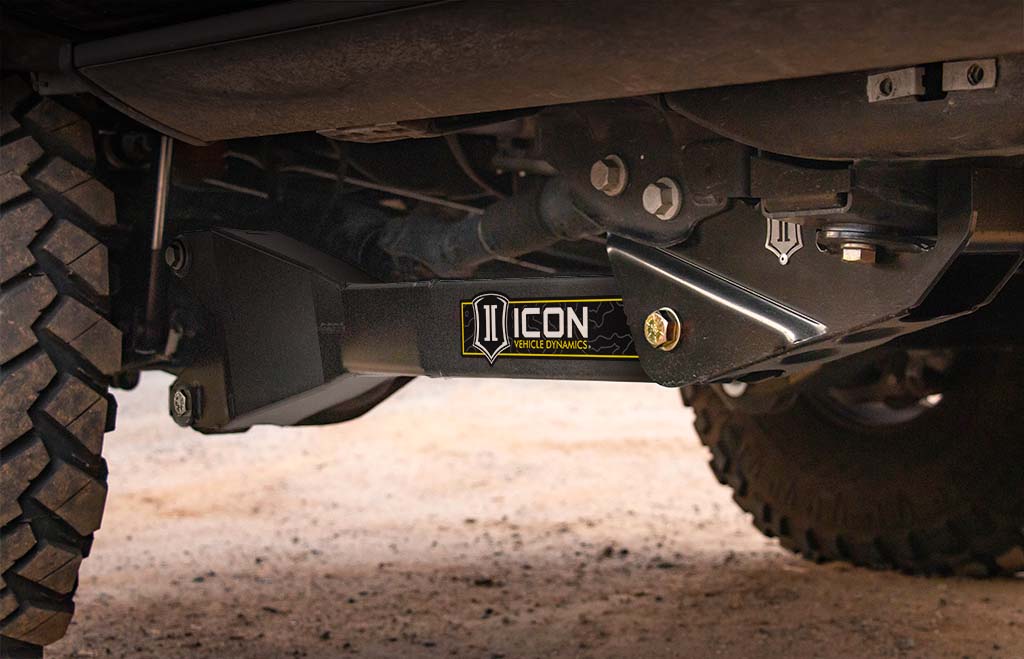

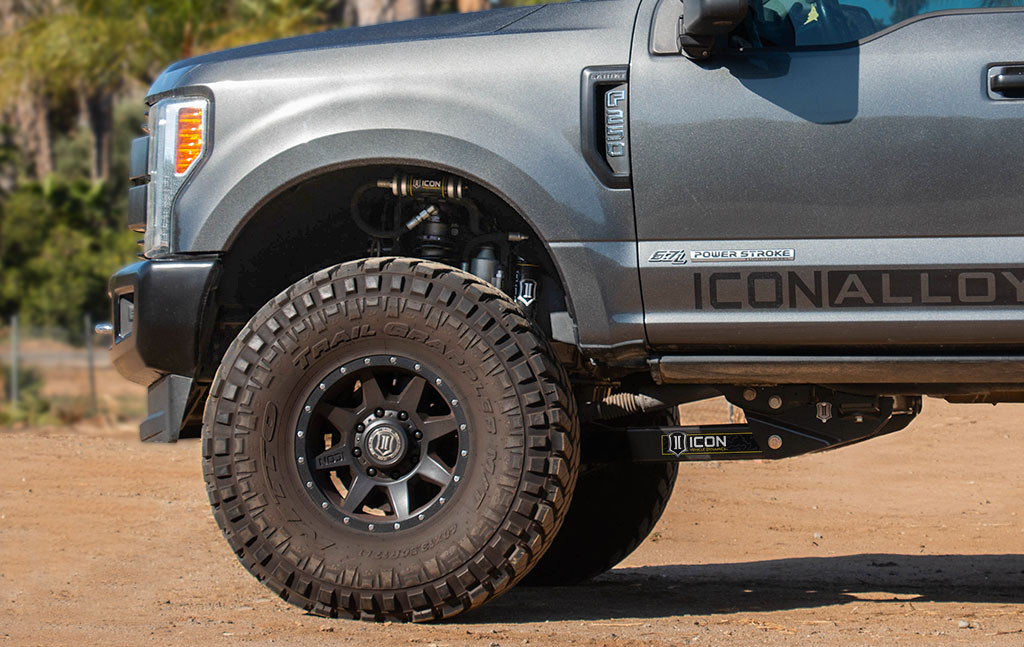

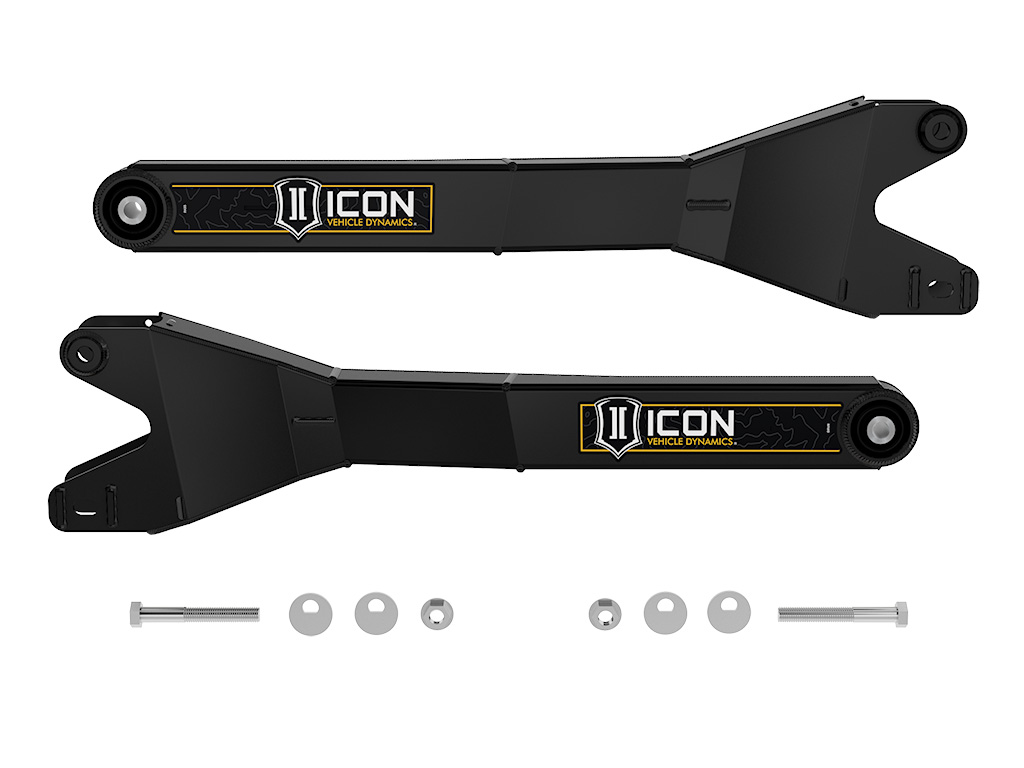

The ICON Vehicle Dynamics Ford 2005-2022 F-250, F-350, and F-450 Super Duty Radius Arm System is designed with adjustable caster cams for use with stock height trucks up to 3” of front lift with the radius arm installed in the factory pivot. When used in conjunction with an ICON radius arm drop bracket system, proper caster can also be maintained for 4” to 7" lifts, including coilover conversion systems. They feature a sealed pivot bushing that minimizes road feedback and ensures a long life and quiet operation. Additionally, their fabricated, fully boxed design ensures strength and utilizes a profile optimized for tire clearance at full steering lock, making a 37” tall tire clear without coming in contact with the radius arm.

Fully boxed design
Built in caster adjustment for optimized return to center
Replaceable sealed pivot bushing provides maintenance free operation
CNC machined and laser cut steel components
Semi-gloss black powder coat finish
Ability to have a 5.5” backspace wheel with 37” tires without contact with the arm at steering lock

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Tires: Up to a 37" x 12.50"
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset
TECH NOTE: Compatible with 0-3" front lift height without need for caster bushings
TECH NOTE: Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # 64040, 64045, or, 64055)

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Tires: Up to a 37" x 12.50" Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.25” Backspace / 6mm Offset TECH NOTE: Compatible with 0-3" front lift height without need for caster bushings TECH NOTE: Radius arm drop brackets required for use with 4-7” lift heights. (ICON part # 64040, 64045, or, 64055)
UPC	00840103411903
Bushing Material	Rubber
Bushing Color	Black
Material	Steel
Bushings Included	Yes
Color	Black
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	Up to a 37" x 12.50"
Recommended Aftermarket Wheels	ICON Alloys - 18x9" w/ 5.25” Backspace / 6mm Offset
Width	13.00 in
Length	40.00 in
Depth	11.00 in
Weight	84.0000 lb
