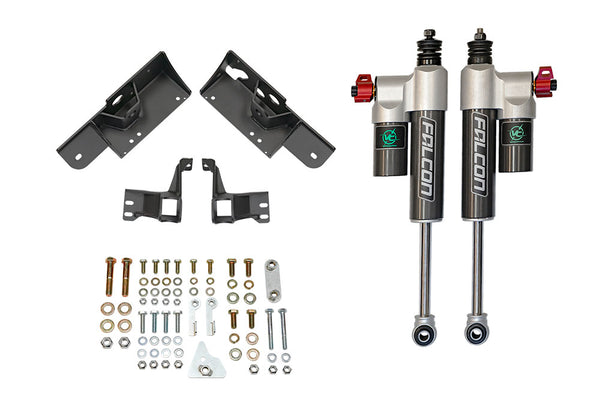

Van Compass Falcon 3.3 Fast Adjust Front Shocks, w/ Mounts, Sprinter 4X4/AWD (2015-Up 2500/3500), Pair

Product Details

4x4 Sprinters are very capable and versatile vehicles, however many owners have now experienced the stiff factory ride over small bumps and extreme swaying on uneven ruts. Van Compass has developed a custom tuned Falcon shock kit to improve the Sprinters handling both on and off the trail. Our custom tuned Falcon shocks smooth out the harshness experienced on washboard roads and sharp, abrupt impacts. The bounce experienced over large bumps is reduced and the side-to-side sway over uneven surfaces is minimized. Each set of Falcon shocks are specifically to your van weight range.Aluminum bodied, 2.315" diameter piggy back reservoir shocks offer a huge range of adjustment. The 3.3 fast adjust knob offer quick and easy compression adjustment when the shock is installed. Position one is the lightest setting, great for blasting down washboard roads or rough city streets. Position 2 is a mid-setting with 8 micro adjustments, a great way to dial in the ride and handling setting for driver preference. Position 3 is the firmest setting, used for occasional heavy loads or when driving conditions require the most control. The shocks are manufactured as left and right pairs. The 3.3 fast adjust knob is placed in a spot that is easy to see and adjust.

10 compression damping settings with the 3.3 fast adjust knob
Controls large and small bumps more effectively than factory shocks
100% bolt on with basic tools
Internal SP2 free bleed adjustment allows for 2 distinct tune profiles
2.3" aluminum body dissipates heat and resists corrosion.
Full 2" Damper piston (238% increase over stock)
3/4" diameter hard chromed shaft resists impact and corrosion.
High pressure nitrogen charge ensures cavitation free operation
Increase in comfort and vehicle control
Enhanced cornering stability
Reduced sway and wind buffeting

Technical Notes

Recommended Wheel Size: 17" x 8.5", +45mm offset
WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned.
NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Van Compass
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
Technical Notes	Recommended Wheel Size: 17" x 8.5", +45mm offset WHEEL FITMENT NOTE: 2023+ AWD vans require fitment of a wheel with 6" backspacing or less. For a 17"x8" wheel, this corresponds with a +38mm offset. Wheels with a greater offset like +52mm, or more backspacing like 6.5", will rub the tire on the shock reservoir when the steering is turned. NOTE: Vans equipped with HD Rear AC Package require extra care when mounting front shocks, refrigerant lines may need to be slightly bent and re-secured.
UPC	810185260690
Width	11.00 in
Length	15.00 in
Depth	7.00 in
Weight	41.0000 lb
