ICON VEHICLE DYNAMICS 07-18 GM 1500 1-2.5" 2.5 VS RR CDCV COILOVER KIT

Product Details

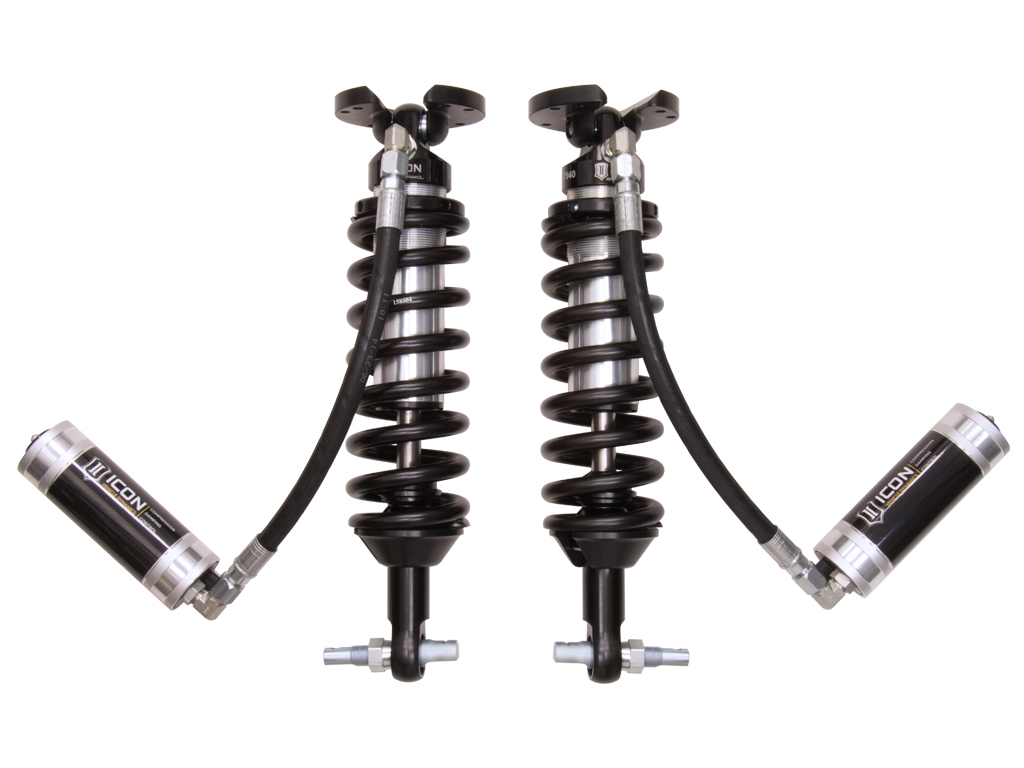

2007-2018 GM 1500 1-2.5" LIFT 2.5 VS REMOTE RESERVOIR CDCV COILOVER KIT

Technical Notes

OEM Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms.
TECH NOTE: Not compatible with models equipped Magnetic Ride Control
TECH NOTE: Not compatible with Hybrid models

Warranty information unavailable

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: ICON Alloys - 17x8.5 with 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9 with 5” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9 with 5” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Installation of ICON Delta Joint upper control arms recommended. Shock length requires trimming of factory droop stop to retain stock upper control arms. TECH NOTE: Not compatible with models equipped Magnetic Ride Control TECH NOTE: Not compatible with Hybrid models
UPC	00840103406008
Material	Steel
Body Diameter	2.5
Remote Reservoir	Yes
Adjustable Height	yes
Spring Color	Black
Adjustable Damping	Yes
Shaft Diameter	0.875
Service Parts	611019 - COILOVER HARDWARE KIT PAIR
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Width	12.00 in
Length	27.00 in
Depth	8.00 in
Weight	50.0000 lb
