ICON VEHICLE DYNAMICS 01-UP GM HD 0-1" REAR 2.5 VS IR PAIR

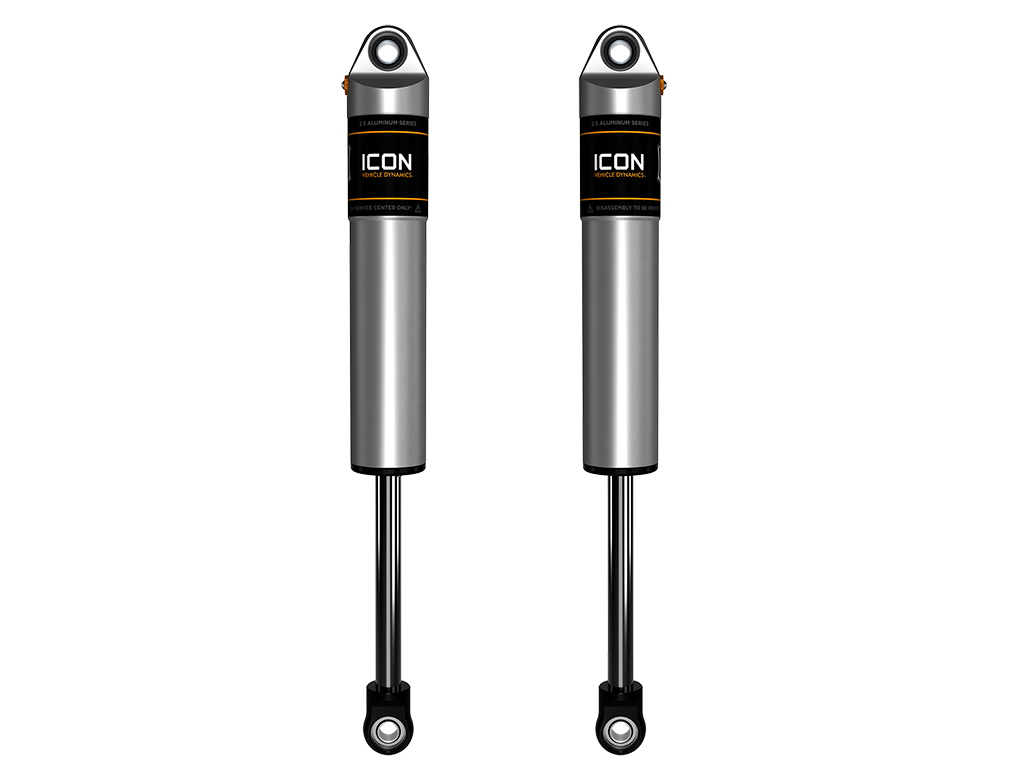

ICON 2001-Up GM 2500/3500 HD, 0-1” Lift, Rear 2.5 VS Shocks, Pair

Product Details

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) shocks.

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
100% Revalveable
Nitrogen charged monotube design with internal reservoir
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
100% Rebuildable

Technical Notes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
UPC	00840103406176
Adjustable	NO
Shaft Diameter	0.875
Cylinder Color	Silver
Shaft Material	Chrome
Cylinder Material	Aluminum
External Reservoir	NO
Tube Outside Diameter	2.5
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Add-On Part	252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
Width	10.00 in
Length	39.00 in
Depth	9.00 in
Weight	20.0000 lb
