ICON VEHICLE DYNAMICS 11-19 GM HD 0-2" FRONT 2.5 VS IR EXT TRAV PAIR

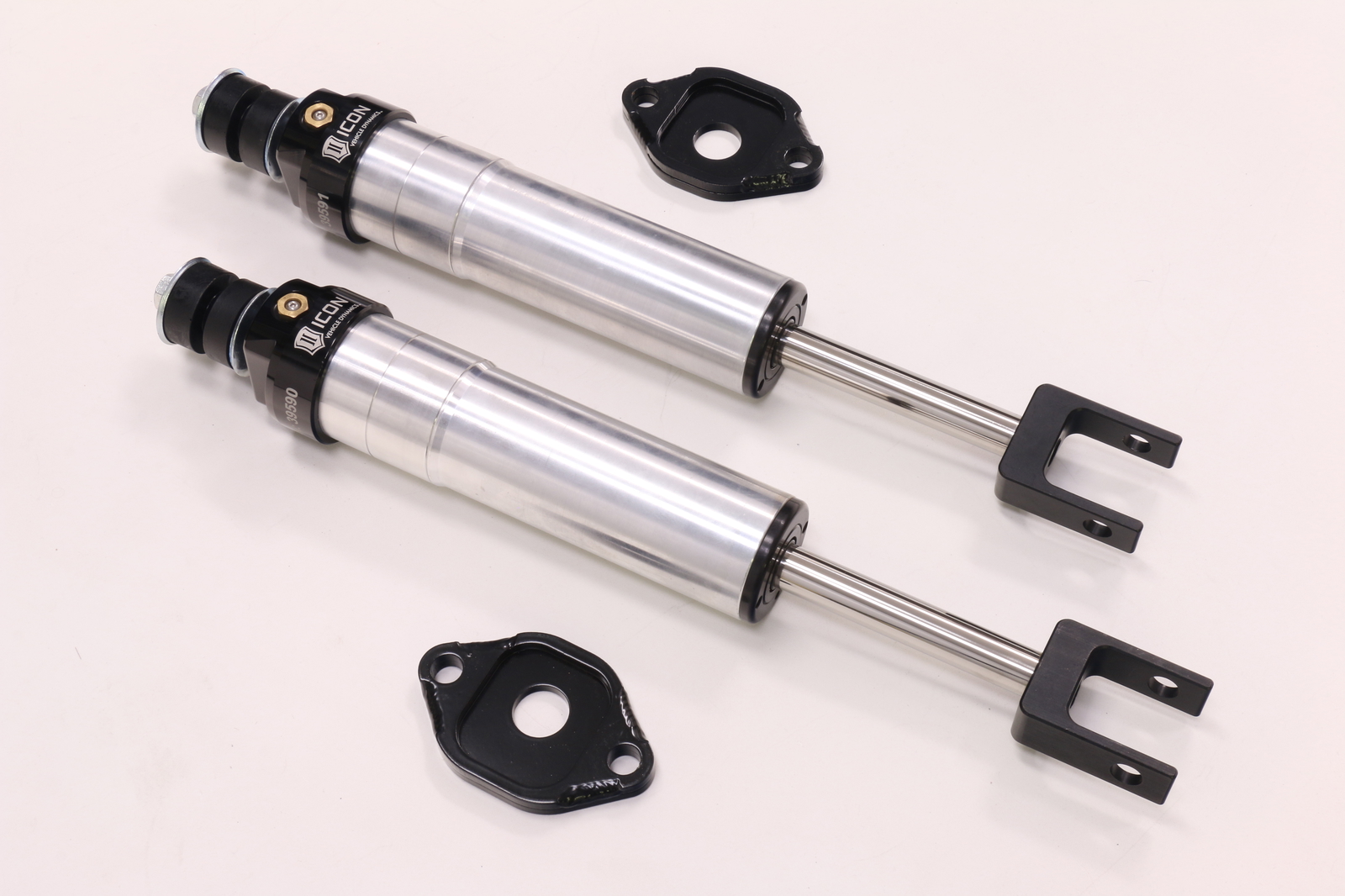

ICON 2011-19 GM 2500/3500 HD 0-2” Lift Front 2.5 VS Extended Travel Shocks, Pair

Product Details

ICON Vehicle Specific (V.S.) 2.5 Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Series shocks are 100% rebuildable and 100% revalveable. The larger diameter and oil volume of ICON 2.5 IR Series shocks provide better ride quality and heat dissipation properties than the standard 2.0 Aluminum Series IR Shocks. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDC Valve) or the Omega Series bypass shocks.

Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
100% Revalveable
Nitrogen charged monotube design with internal reservoir
One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
CAD plated, precision machined 1026 DOM steel shock body for maximum durability and corrosion resistance
Increase in strength and heat dissipation when compared to ICON V.S. 2.0 Series shocks
100% Rebuildable

Technical Notes

TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install
UPC	00840103406183
Adjustable	NO
Shaft Diameter	0.875
Cylinder Color	Silver
Shaft Material	Chrome
Cylinder Material	Steel
External Reservoir	NO
Tube Outside Diameter	2.5
Service Parts	257303 - 7/8 SHAFT 9.25 OAL, 5.00 TRAVEL
Width	12.00 in
Length	27.00 in
Depth	6.00 in
Weight	22.0000 lb
