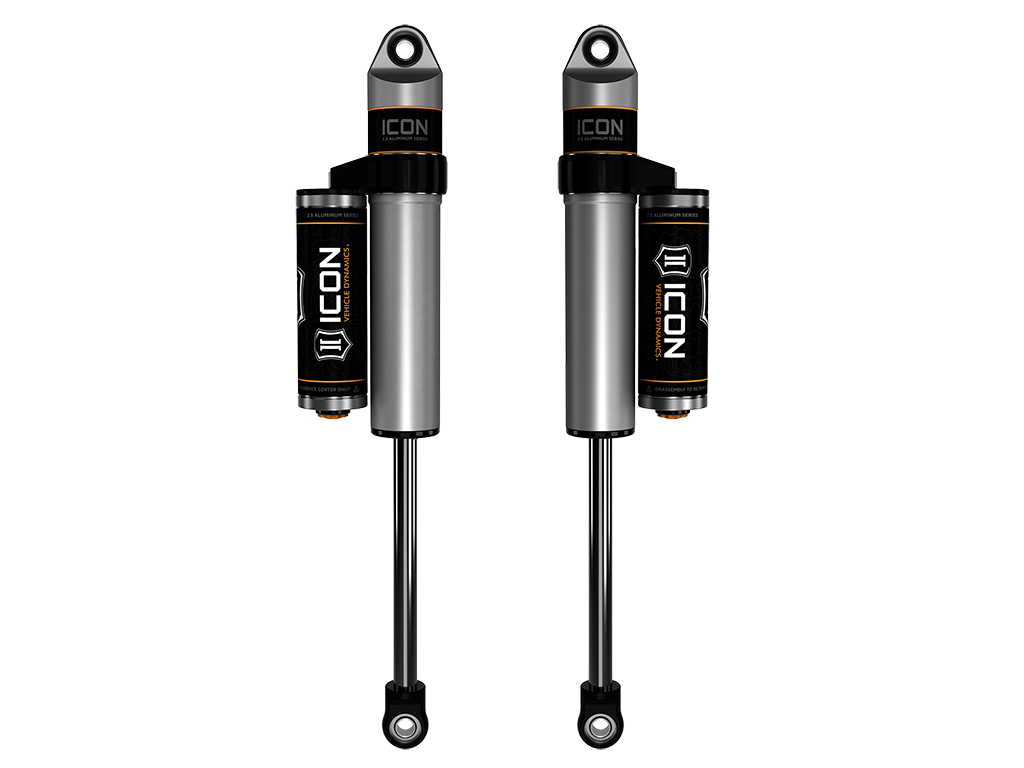

ICON 01-UP GM HD 0-1" REAR 2.5 VS PB / 07-18 GM 1500 4" REAR 2.5 VS PB PAIR

ICON 01-Up GM HD, 0-1" Lift,/07-18 GM 1500, 4" Lift, Rear 2.5 VS PB Shocks, Pair

Product Details

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
100% Rebuildable
100% Revalveable
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish

Technical Notes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
UPC	00840103406244
Adjustable	NO
Shaft Diameter	0.875
Cylinder Color	Silver
Shaft Material	Chrome
Cylinder Material	Aluminum
External Reservoir	Yes
Tube Outside Diameter	2.5
Service Parts	257340 - 7/8 SHAFT 14.25 OAL, 10.00 TRAVEL
Width	15.00 in
Length	39.00 in
Depth	9.00 in
Weight	27.0000 lb
