ICON VEHICLE DYNAMICS 11-16 GM HD 6-8" FRONT 2.5 VS PB CDCV PAIR

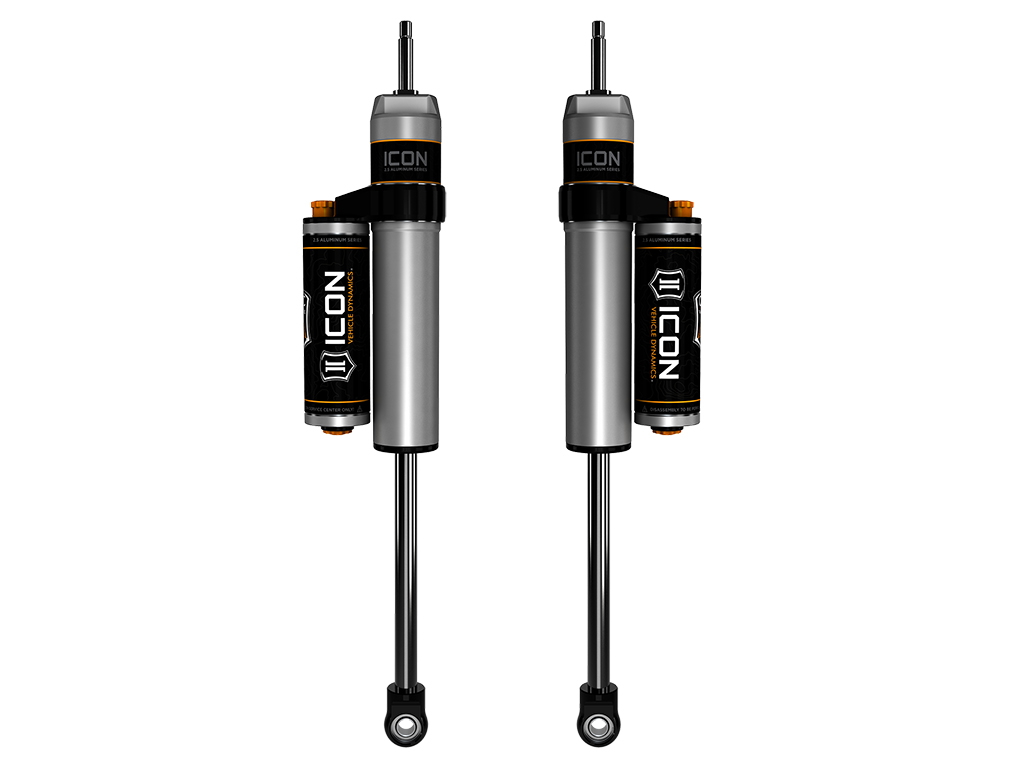

ICON 2011-16 GM 2500/3500 HD, 6-8” Lift, Front 2.5 VS PB/CDCV Shocks, Pair

Product Details

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with piggyback reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components

Technical Notes

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
UPC	00840103406312
Adjustable	Yes
Shaft Diameter	0.875
Cylinder Color	Silver
Shaft Material	Chrome
Cylinder Material	Aluminum
External Reservoir	Yes
Tube Outside Diameter	2.5
Service Parts	611006 - 9/16 HD STEM BUSHING KIT
Width	10.00 in
Length	39.00 in
Depth	9.00 in
Weight	25.0000 lb
