ICON VEHICLE DYNAMICS 11-19 GM HD 0-2" FRONT 2.5 VS RR EXT TRAV PAIR

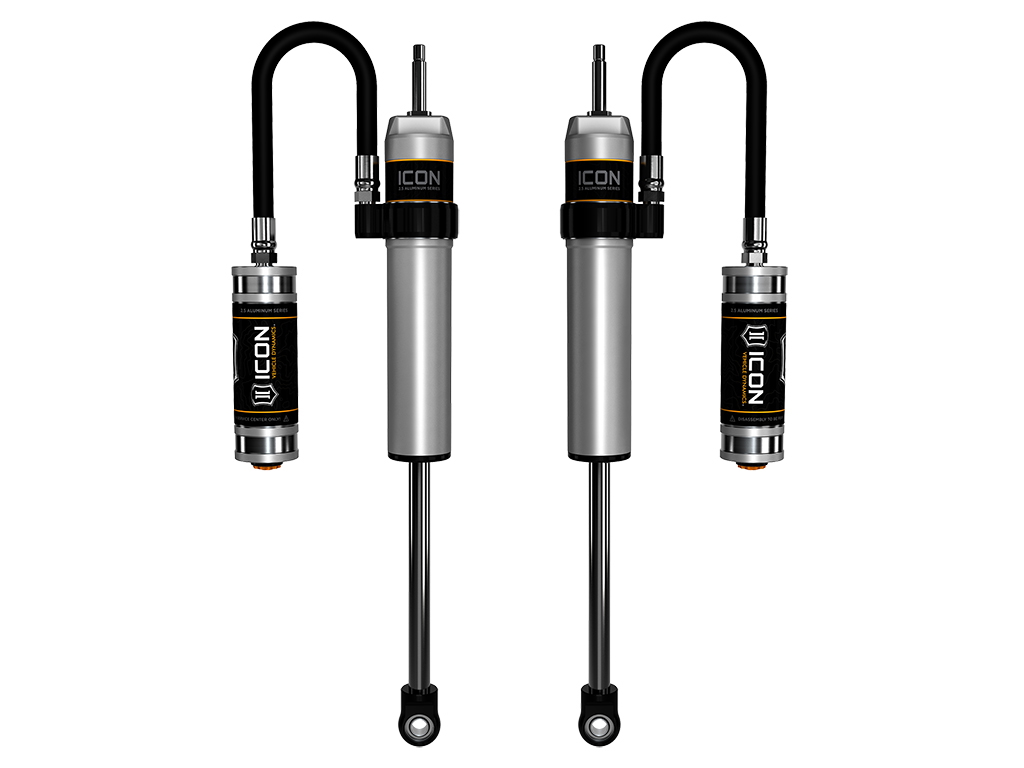

ICON 2011-19 GM 2500/3500 HD, 0-2” Lift, Front Ext Travel 2.5 VS RR Shocks, Pair

Product Details

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON shock absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON’s unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal “Bump Zone” that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
100% Rebuildable
100% Revalveable
All ICON 2.5 Series Piggyback and Remote Reservoir shocks can be upgraded to ICON’s Compression Damping Control Valve (CDCV)
Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
Nitrogen charged monotube design with remote reservoir
One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
7/8” diameter induction hardened, chrome plated shock shaft
Polyurethane bushings and forged steel mounting stems for OE factory type fitment
PTFE lined spherical bearings and application specific mounting hardware
6061 aircraft grade aluminum CNC machined components

Technical Notes

TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Aftermarket upper control arms with high angle ball joint required for install
UPC	00840103406381
Adjustable	NO
Shaft Diameter	0.875
Cylinder Color	Silver
Shaft Material	Chrome
Cylinder Material	Steel
External Reservoir	Yes
Tube Outside Diameter	2.5
Service Parts	252003 - SEAL INSTALL TOOL 2.5/3.0
Add-On Part	252012 - -4 TO -10 HOSE SHIELD KIT
Width	10.00 in
Length	30.00 in
Depth	9.00 in
Weight	27.0000 lb
