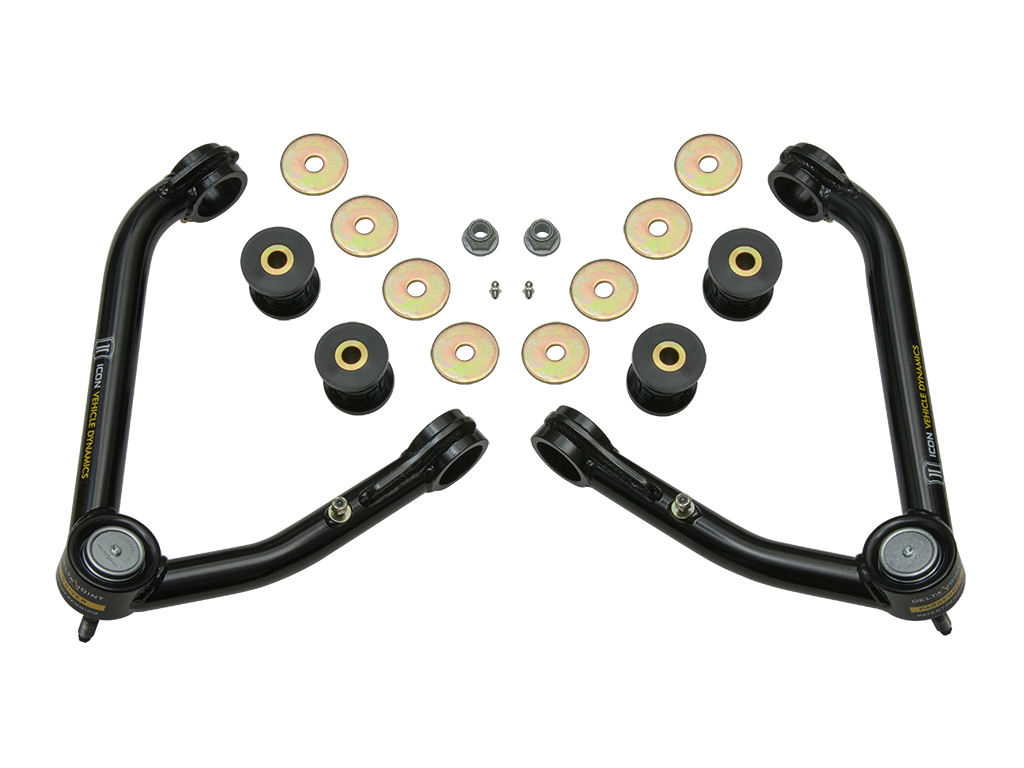

ICON 2007-2016 GM 1500, Tubular Upper Control Arm Kit w/Delta Joint, Small Taper

Product Details

Take the performance of your 2007-2016 GM 1500 truck to new levels with the ICON Vehicle Dynamics Delta Joint tubular upper control arm kit. All ICON tubular upper control arms are constructed from CNC bent 1026 DOM steel tubing and then powder coated to a semi-gloss black finish for maximum strength and corrosion resistance. ICON upper control arms are engineered with built-in caster correction for optimal alignment specifications and confidence inspiring handling. A main benefit of ICON upper control arms is the potential for increased wheel travel when paired with our 2.5 series coilovers, this translates into superior performance and ride quality for your 2007-2016 GM 1500.These upper control arms feature ICON's patented Delta Joint. The Delta Joint is a heavy duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greasable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

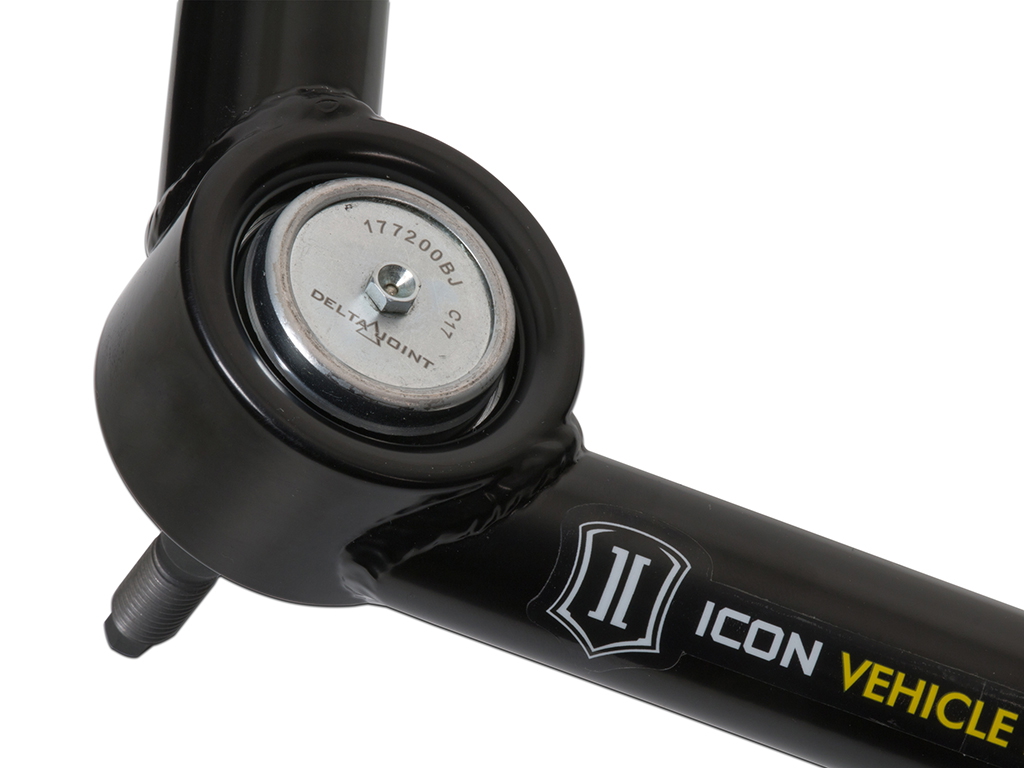

ICON Delta Joint
1026 DOM Steel Construction
CNC Bent Tubing

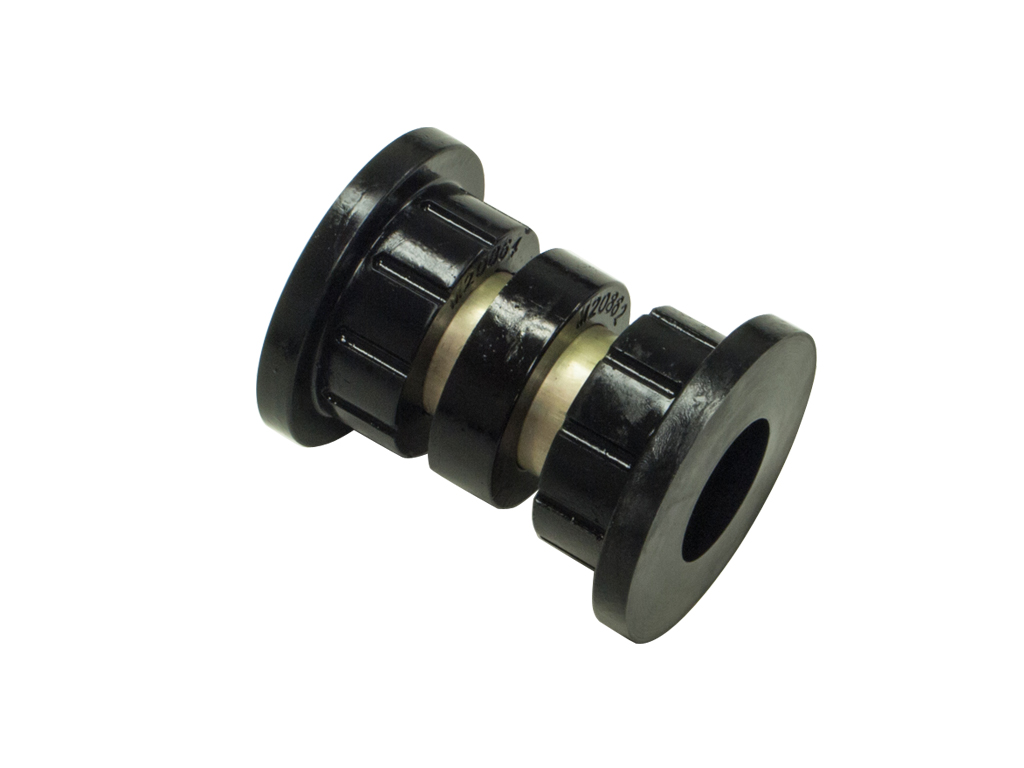

Serviceable Dual Stage Bushings
CNC Machined Bushing Housings and Sleeves
Built-In Caster Correction
Black Semi-Gloss Powder Coat Finish

Technical Notes

OEM Wheels & Tires Fitment: Yes
TECH NOTE: Not recommended for Hybrid models
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
TECH NOTE: Arm geometry is optimized for use with 1-3" of front lift over stock
TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles.
TECH NOTE: Small taper applications can be identified by their forged steel OE front lower control arms
TECH NOTE: Not compatible with models equipped Magnetic Ride Control

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	OEM Wheels & Tires Fitment: Yes TECH NOTE: Not recommended for Hybrid models Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5” Backspace / 0mm Offset Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.) TECH NOTE: Arm geometry is optimized for use with 1-3" of front lift over stock TECH NOTE: Only compatible with OE spindles. DO NOT install in combination with ANY aftermarket spindles. TECH NOTE: Small taper applications can be identified by their forged steel OE front lower control arms TECH NOTE: Not compatible with models equipped Magnetic Ride Control
UPC	00840103406442
Bushing Material	Polyurethane
Bushing Color	Black
Adjustable	No
Material	DOM Steel
Finish	Powdercoated
Bushings Included	Yes
Color	Black
Control Arm Construction	Tubular
Service Parts	614519 - DELTA JOINT INSTALL PRESS ADAPTER TUBE

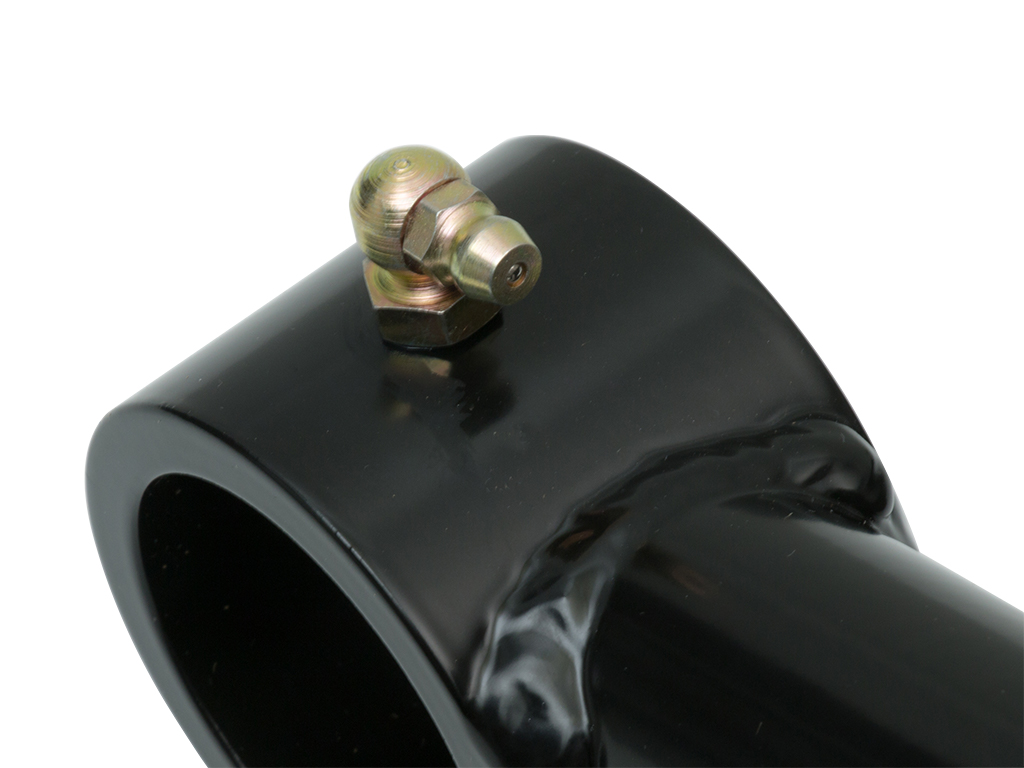

Add-On Part	191013 - NIPPLE GREASING ADAPTER KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Width	12.00 in
Length	16.00 in
Depth	8.00 in
Weight	24.0000 lb
