8017857345DB

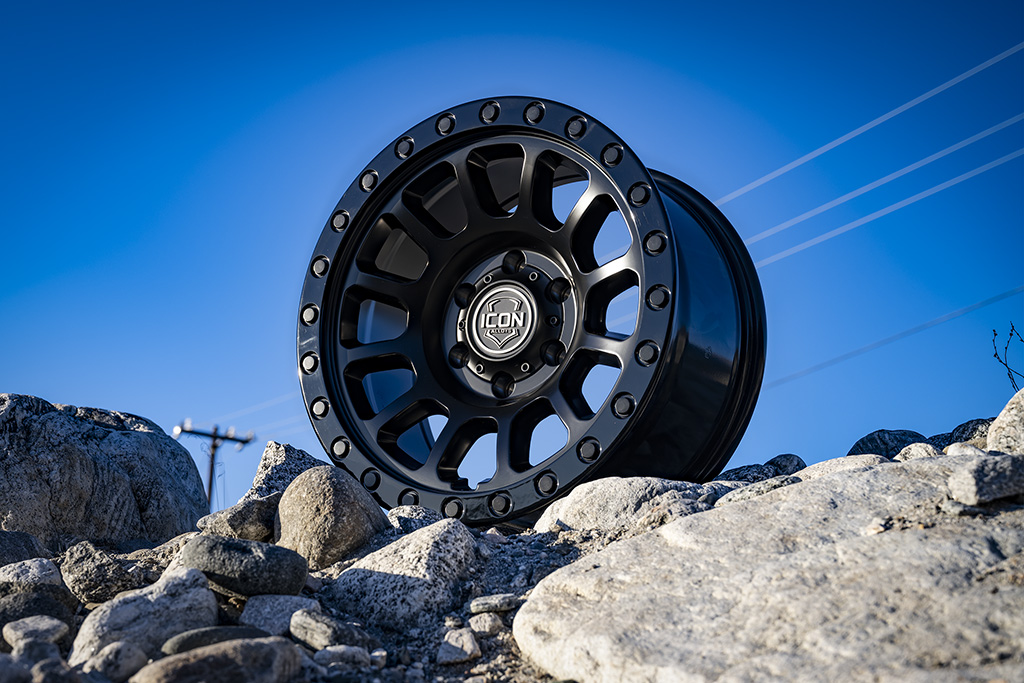

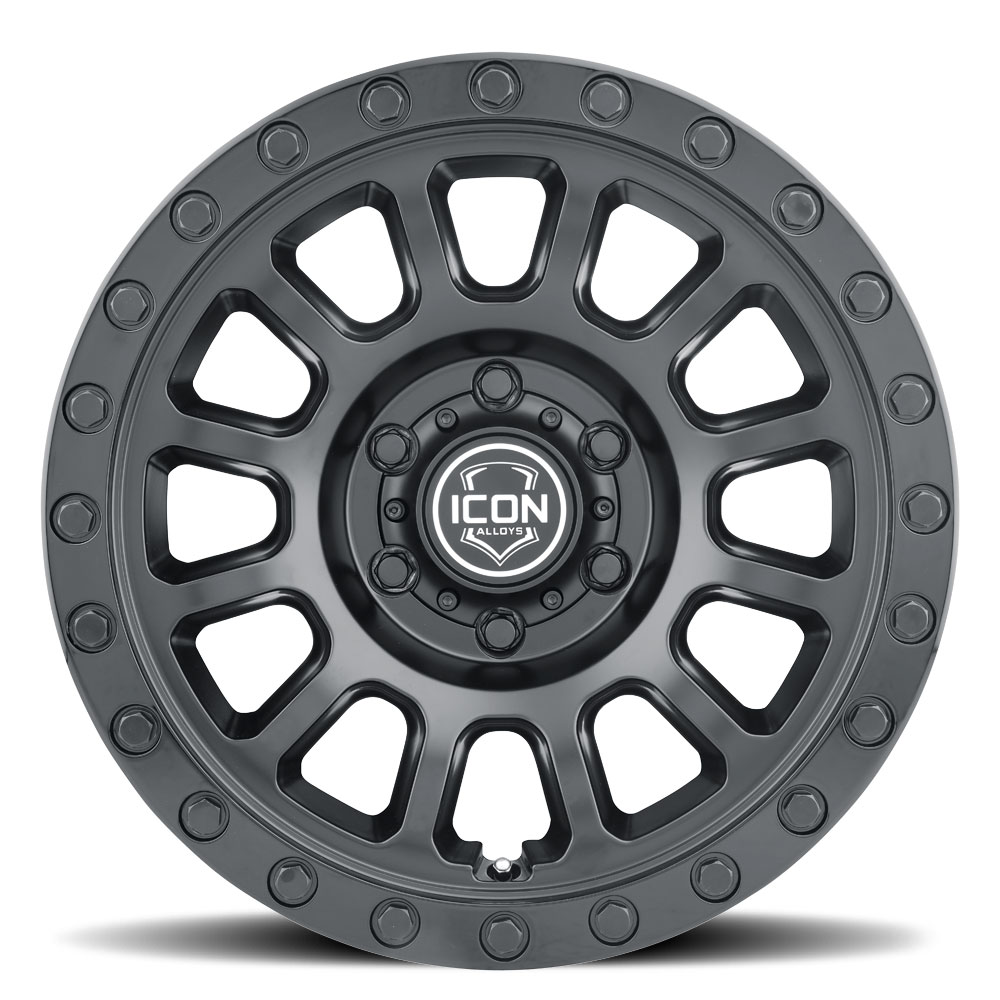

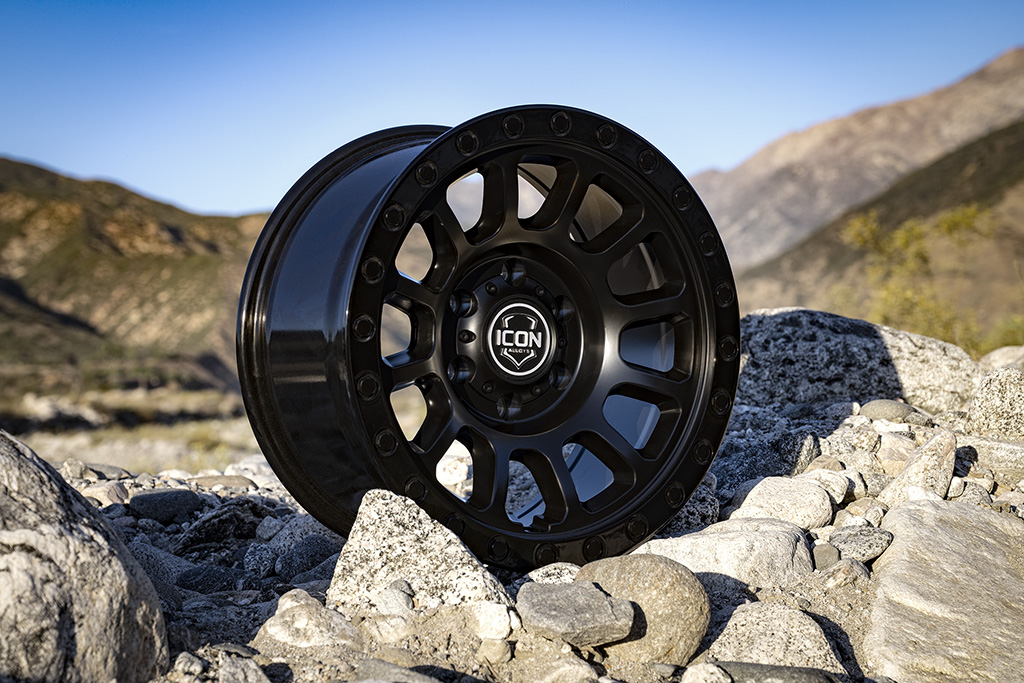

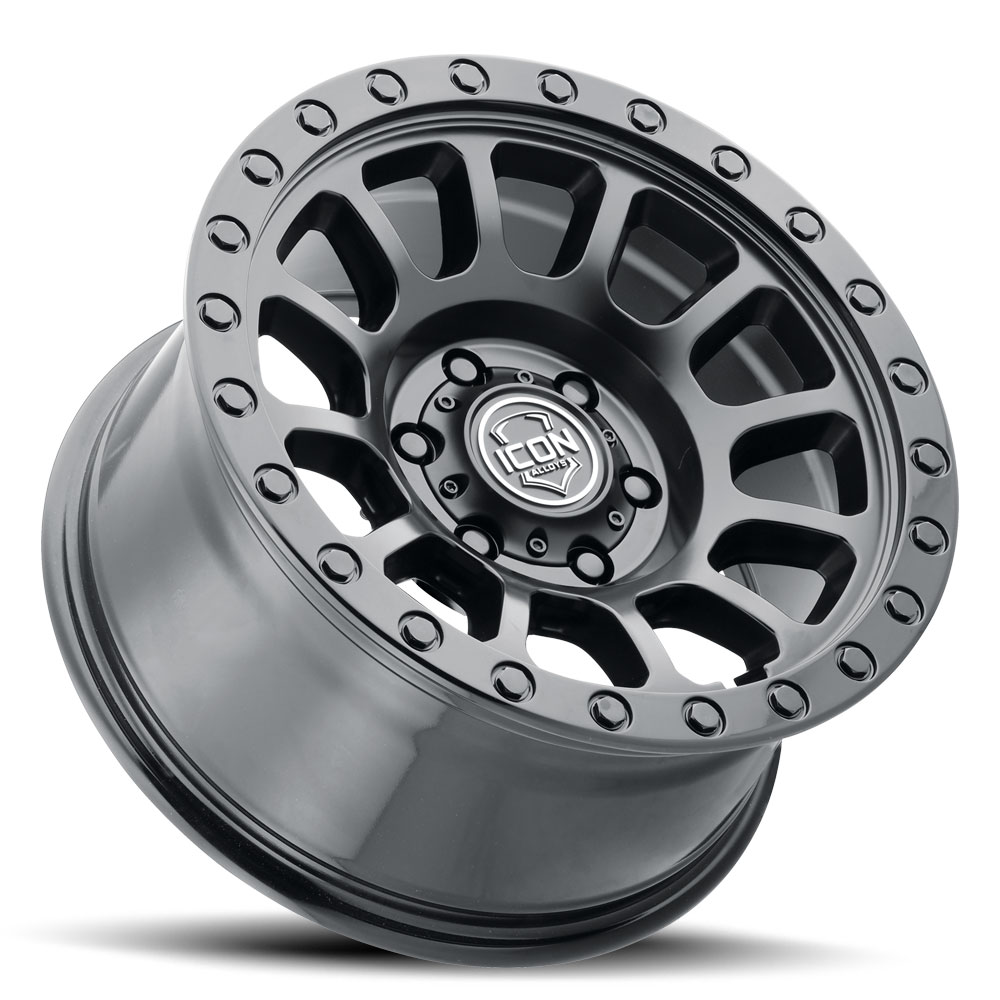

ICON Alloys Hulse, Double Black, 17 x 8.5 / 5 x 5, -6mm Offset, 4.5" BS

Product Details

The ICON Alloys Hulse makes a bold statement with its motorsport inspired styling. Hulse features an aggressive concave profile that looks good in the dirt and great in the street. Twelve deep spokes, thick lip and oversized ring bolts will set your rig apart from the rest. Available in aggressive Double Black or eye-catching Silver Machined finishes with fitments available for 6 & 5 lug applications.Staying true to the ICON Alloys approach, the Hulse has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

Aggressive concave profile with 12-window design
17" X 8.5" in 5-lug & 6-lug bolt patterns
Double black powder coat powder coat finish for sleek looks and corrosion resistance
Application-specific dimensions optimize vehicle dynamics and tire clearance
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Aluminum alloy construction provides strength properties that are well suited for off-road use
2750lbs load rating

Technical Notes

TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
UPC	00840103426365
Material	Aluminum
Finish	Powdercoated
Color	Double Black
Construction	Cast
Backspacing	4.5
Bolt Pattern	5 X 5
Center Cap Included	Yes
Diameter	17
Inside Diameter	71.5
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	2750
Offset	-6
Negative Offset	6
TPMS Compatible	yes
Width	8.5
Wheel Nuts Included	No
TPMS Included	No
Width	20.00 in
Length	20.00 in
Depth	11.00 in
Weight	30.0000 lb
