81000

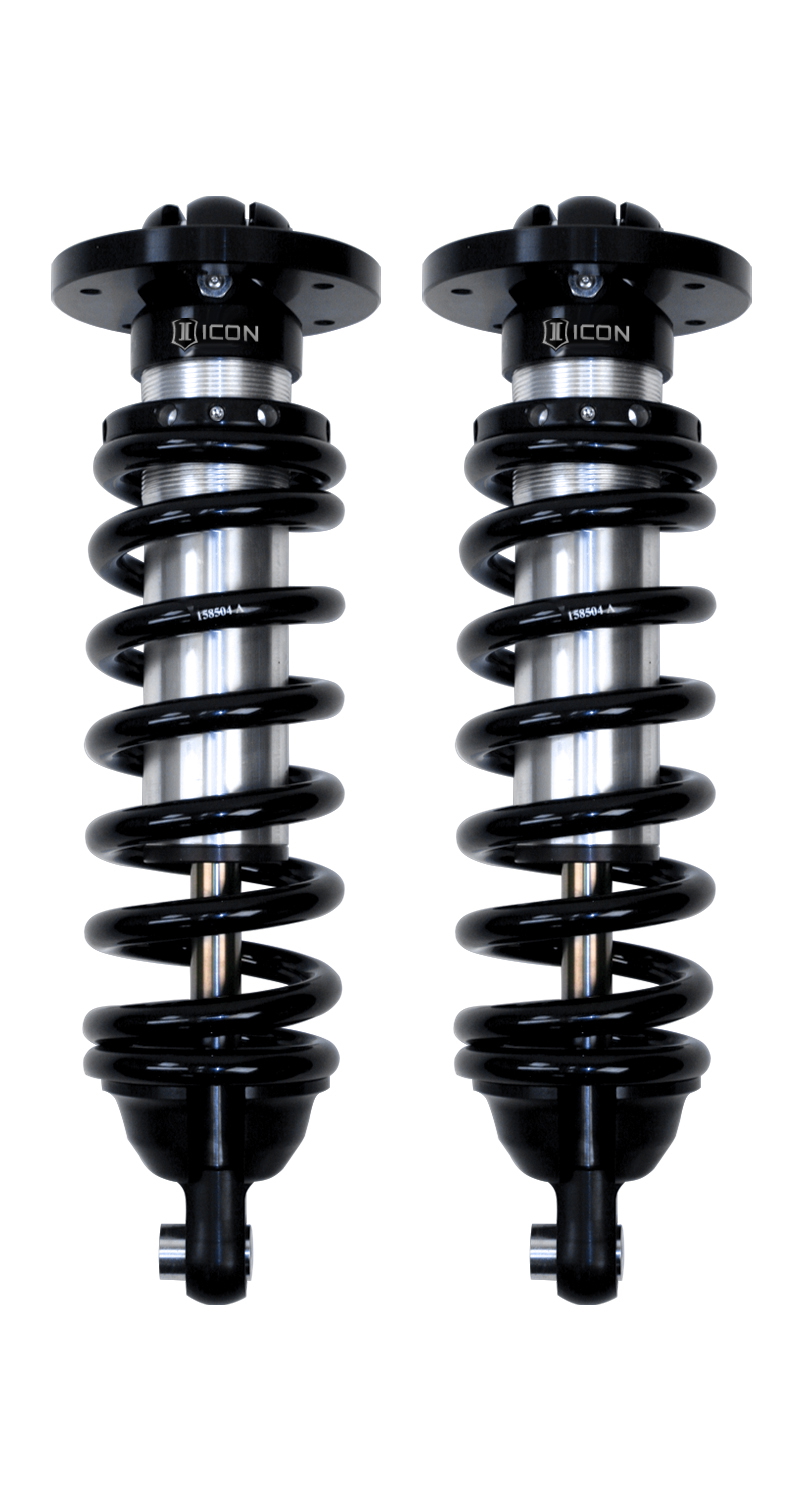

ICON 2004-15 Nissan Titan, 0-3” Lift, 2.5 VS Coilover Kit

Product Details

These 0 - 3 Inch Adjustable Coil-over shocks will increase the handling and ride quality of your Nissan Titan or Armada. They are preset with 2 inches of lift out of the box to level out your vehicle and give clearance of 33 Inch Tall Tires.

Adjustable ride height from 0" - 3"
Race shock piston with flutter stack compression valving
Cad-plated threaded body / Optional Extreme Weather Plating
Billet aluminum upper mount
5/8" PTFE-lined spherical bearing
Completely re-buildable and re-valvable shock
2.5" shock diameter to prevent overheating
Chrome-silicon spring
250 PSI nitrogen-charged internal reservoir

Technical Notes

Factory Wheels & Tires Fitment: Yes
Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)

Warranty Information

Warranty information unavailable

Compatible Make / Model

Nissan Titan (2004-2015)

Specification

Brand	ICON Vehicle Dynamics
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	Factory Wheels & Tires Fitment: Yes Recommended Aftermarket Wheels: 8.5" wide wheel with 5" backspace Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
UPC	00840103406657
Body Diameter	2.5
Remote Reservoir	NO
Adjustable Height	yes
Spring Color	Black
Adjustable Damping	NO
Shaft Diameter	0.875
Service Parts	254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
Add-On Part	198001 - BILLET SPANNER WRENCH KIT
OEM Wheels & Tires Fitment	Yes
Recommended Aftermarket Tires	33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels	ICON Alloys - 20x9" w/ 5” Backspace / 0mm Offset
Width	13.00 in
Length	26.00 in
Depth	7.00 in
Weight	41.0000 lb
