8117858347SM

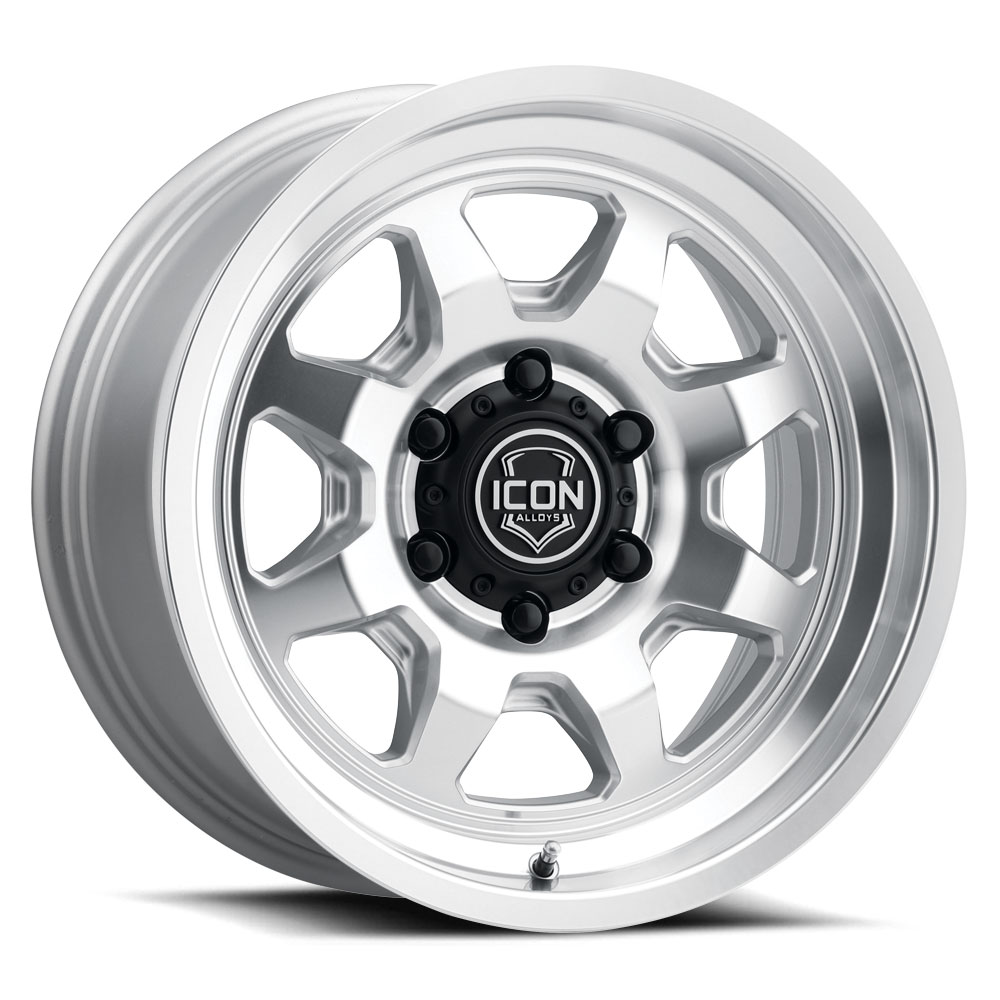

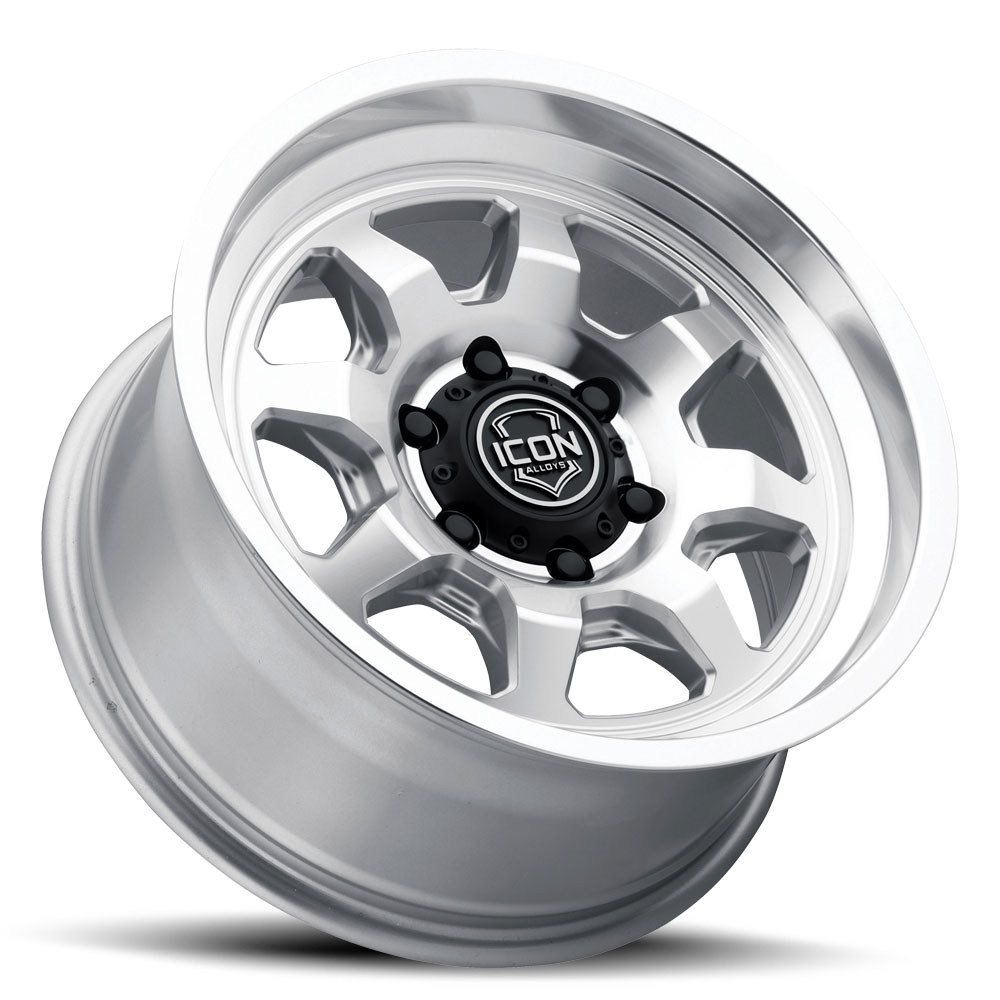

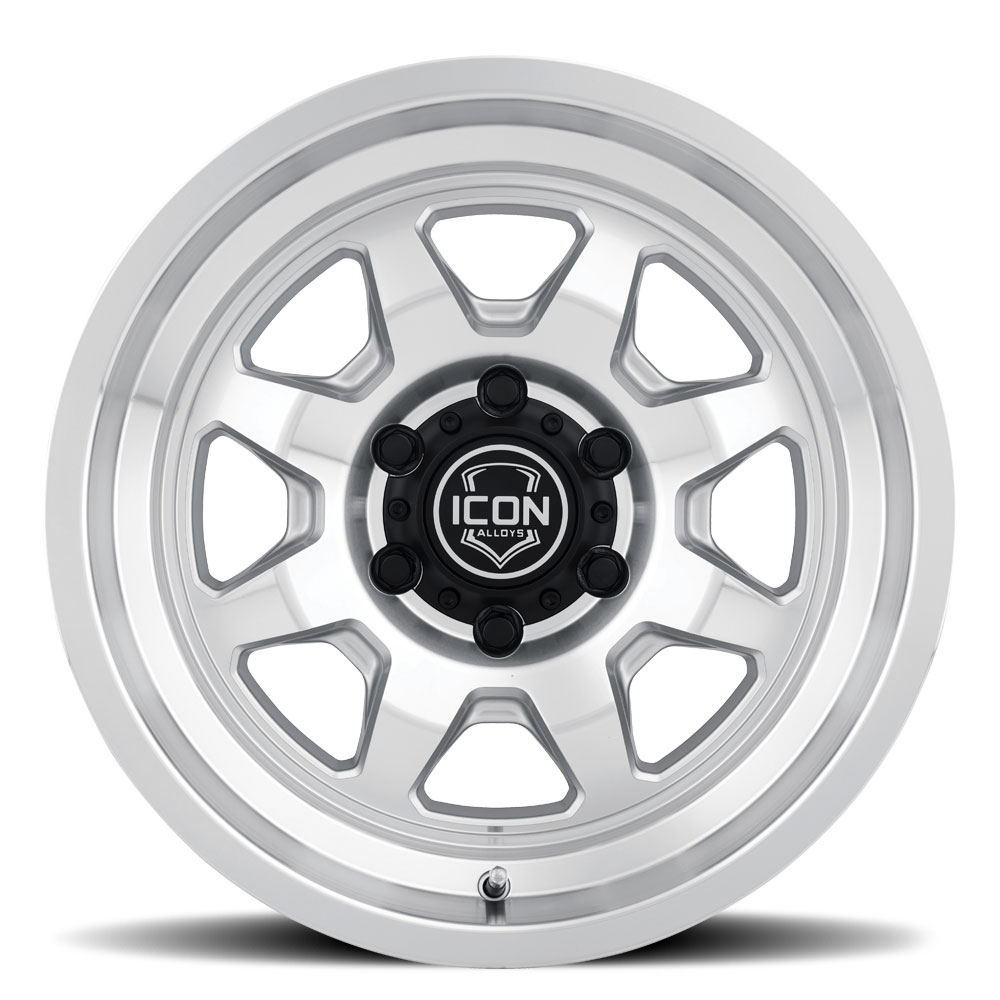

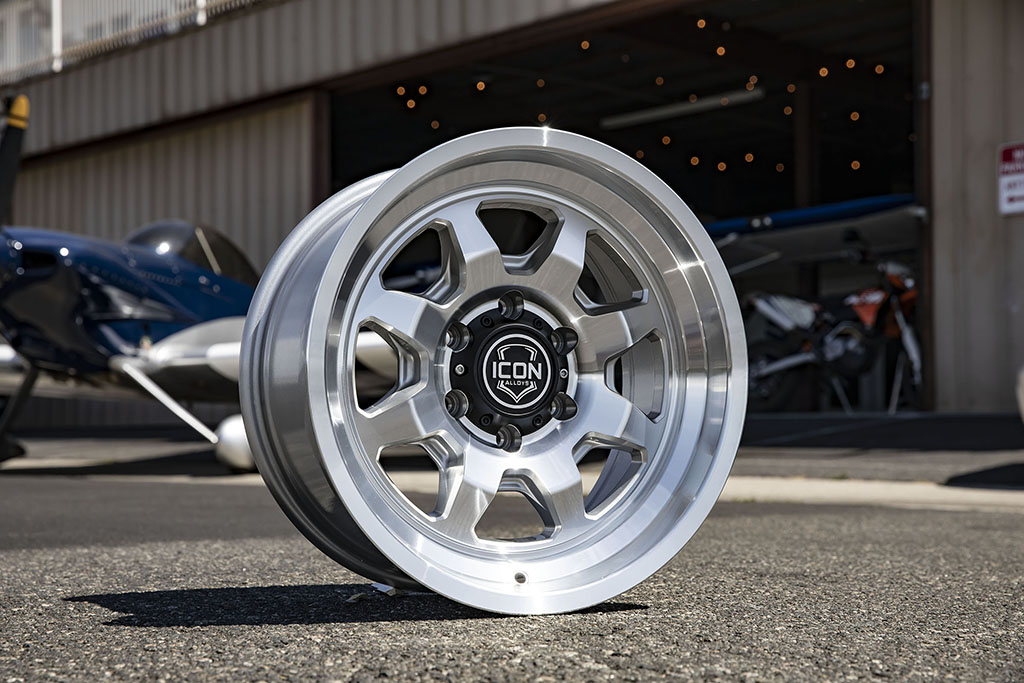

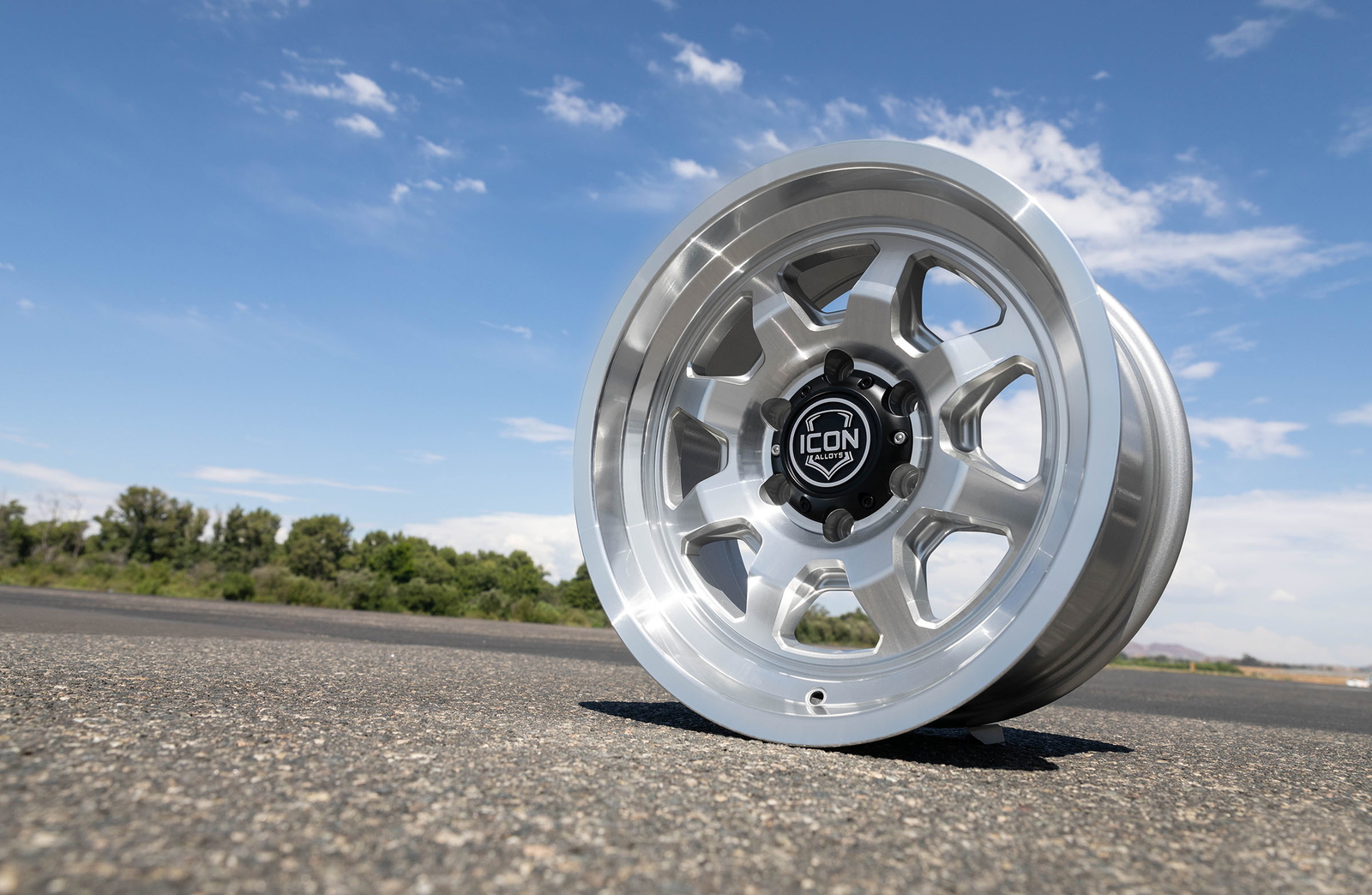

ICON Alloys Nuevo, Silver Machined, 17 x 8.5 / 6 x 5.5, 0mm Offset, 4.75" BS

Product Details

Teeming with offroad pedigree, the Nuevo’s modern take on a classic offroad look means all business. The timeless 8 spokes and deep step lip lend the Nuevo a purposeful look, on or off the trail. A sophisticated Silver Machined as well Satin black are offered in both 5 or 6 lug applications. Available offsets ranging from -6mm through +25 are perfect for making the Nuevo ‘at home’ on your ride.Staying true to the ICON Alloys approach, the Nuevo has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

Classic 8-spoke styling with deep step lip
17" X 8.5" in 5-lug & 6-lug bolt patterns
Silver machined surface with clear powder coat finish for corrosion resistance
Application-specific dimensions optimize vehicle dynamics and tire clearance
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Aluminum alloy construction provides strength properties that are well suited for off-road use
2750lbs load rating

Technical Notes

TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
UPC	00840103426525
Material	Aluminum
Finish	Powdercoated
Color	Sliver Machined
Construction	Cast
Backspacing	4.75
Bolt Pattern	6 X 5.5
Center Cap Included	Yes
Diameter	17
Inside Diameter	106.1
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	2750
TPMS Compatible	yes
Width	8.5
Wheel Nuts Included	No
TPMS Included	No
Width	20.00 in
Length	20.00 in
Depth	11.00 in
Weight	30.0000 lb
