8217858347GM

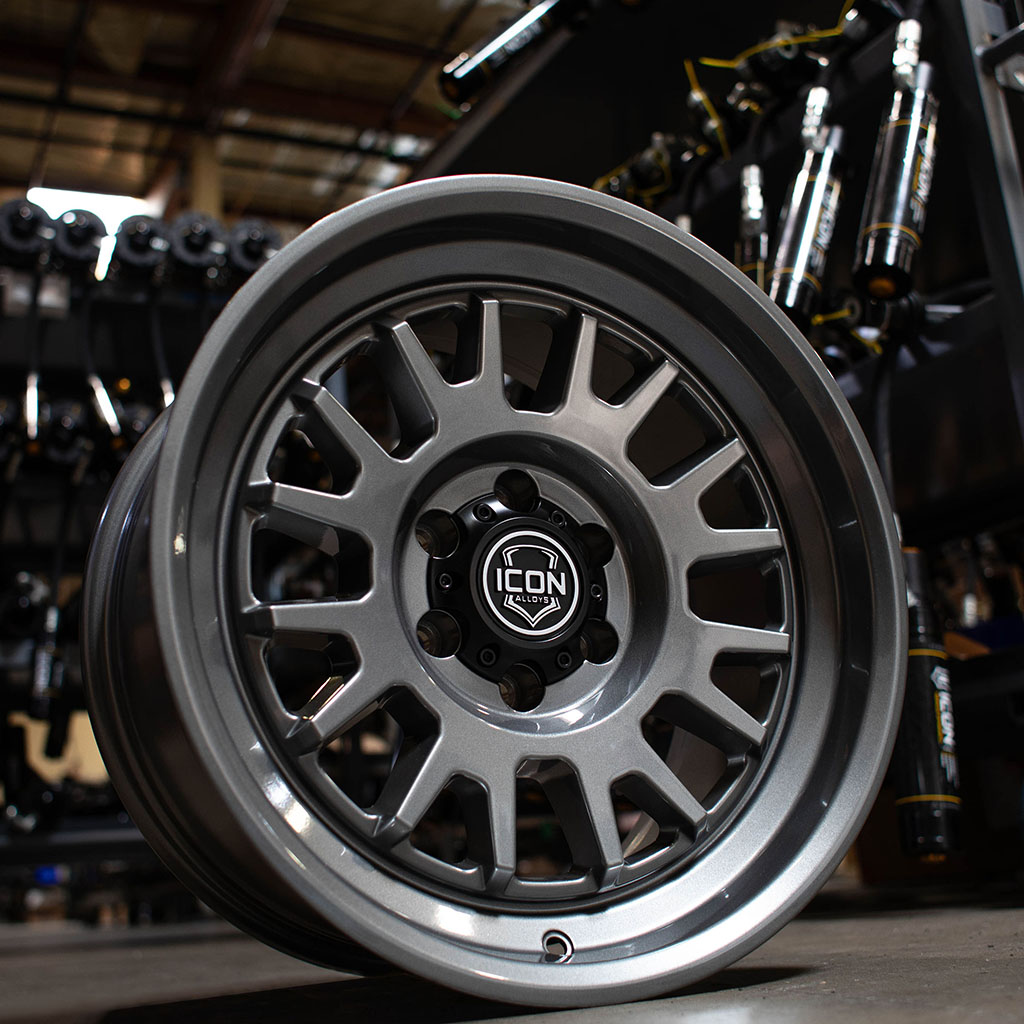

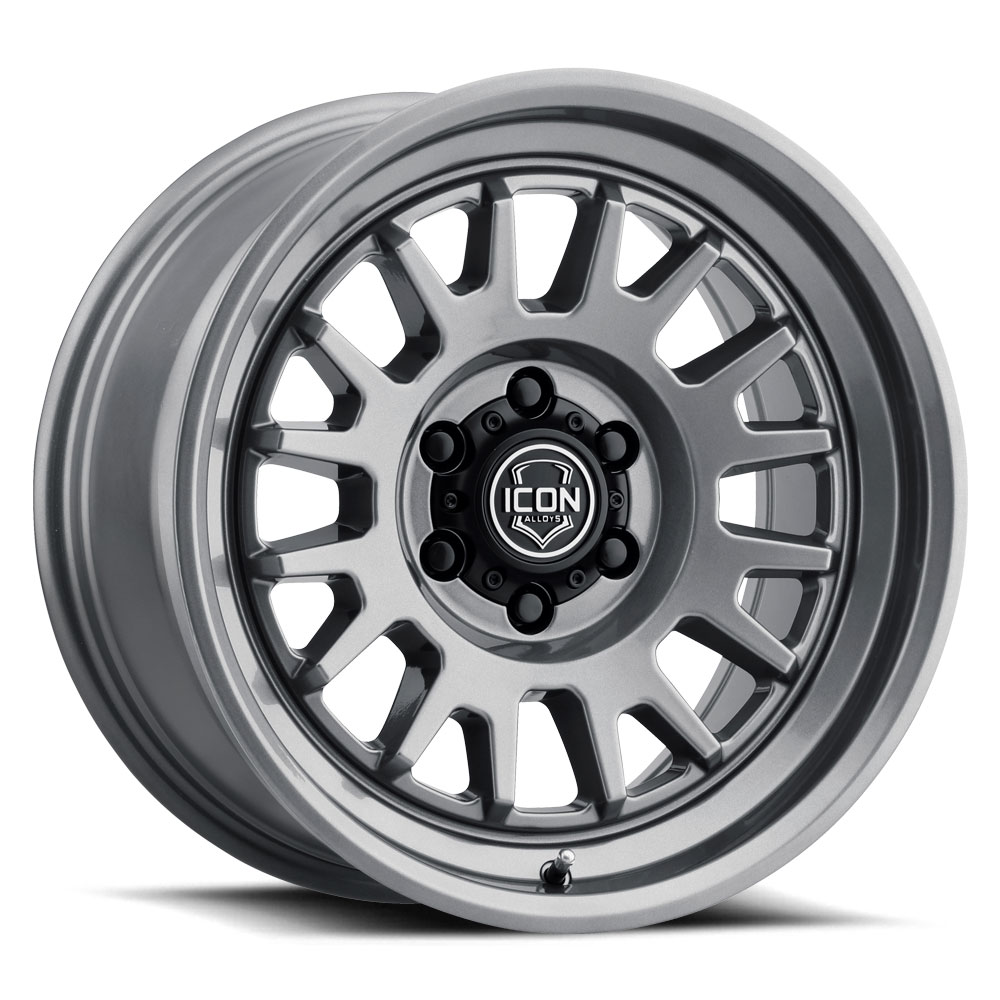

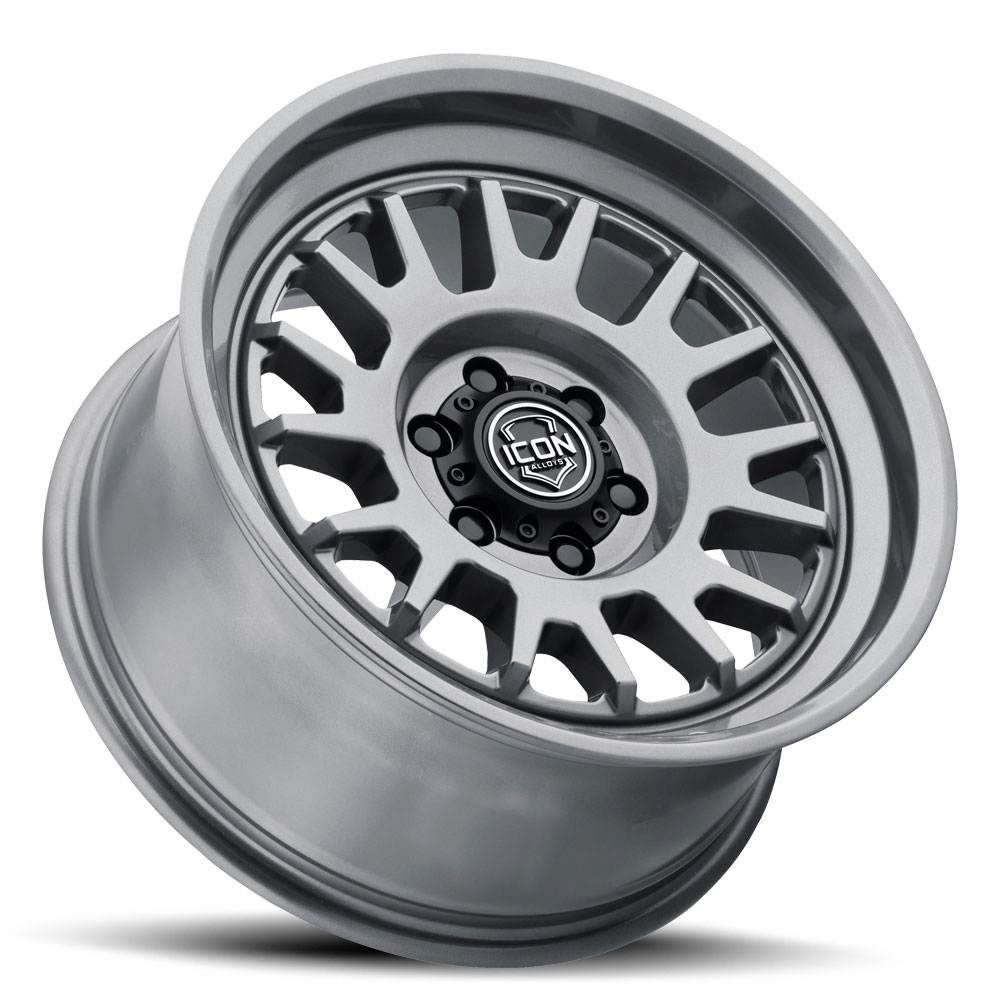

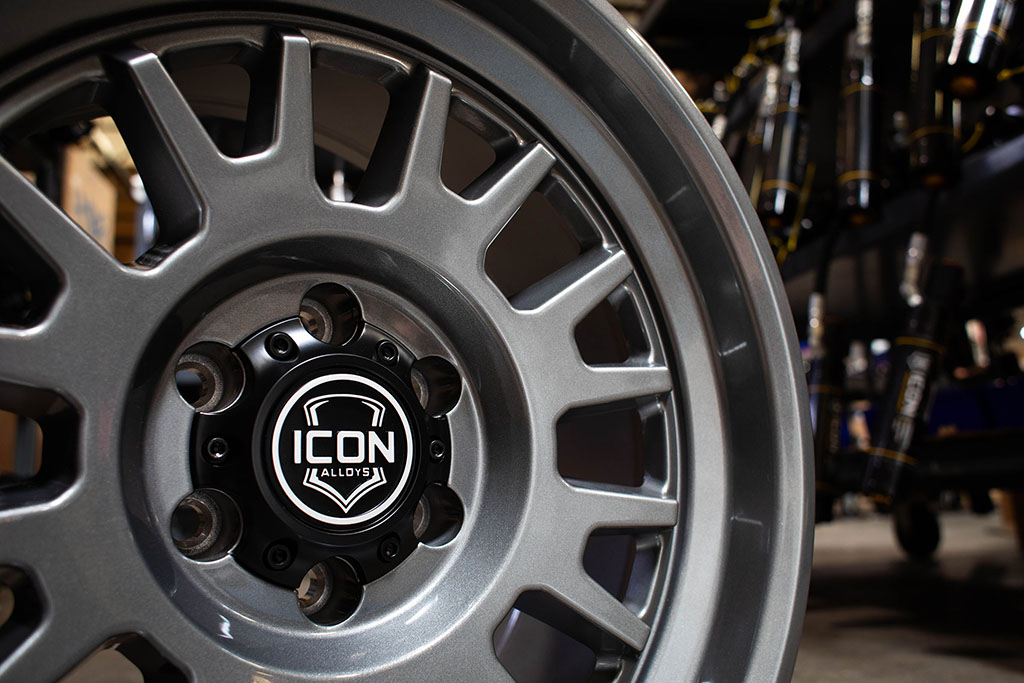

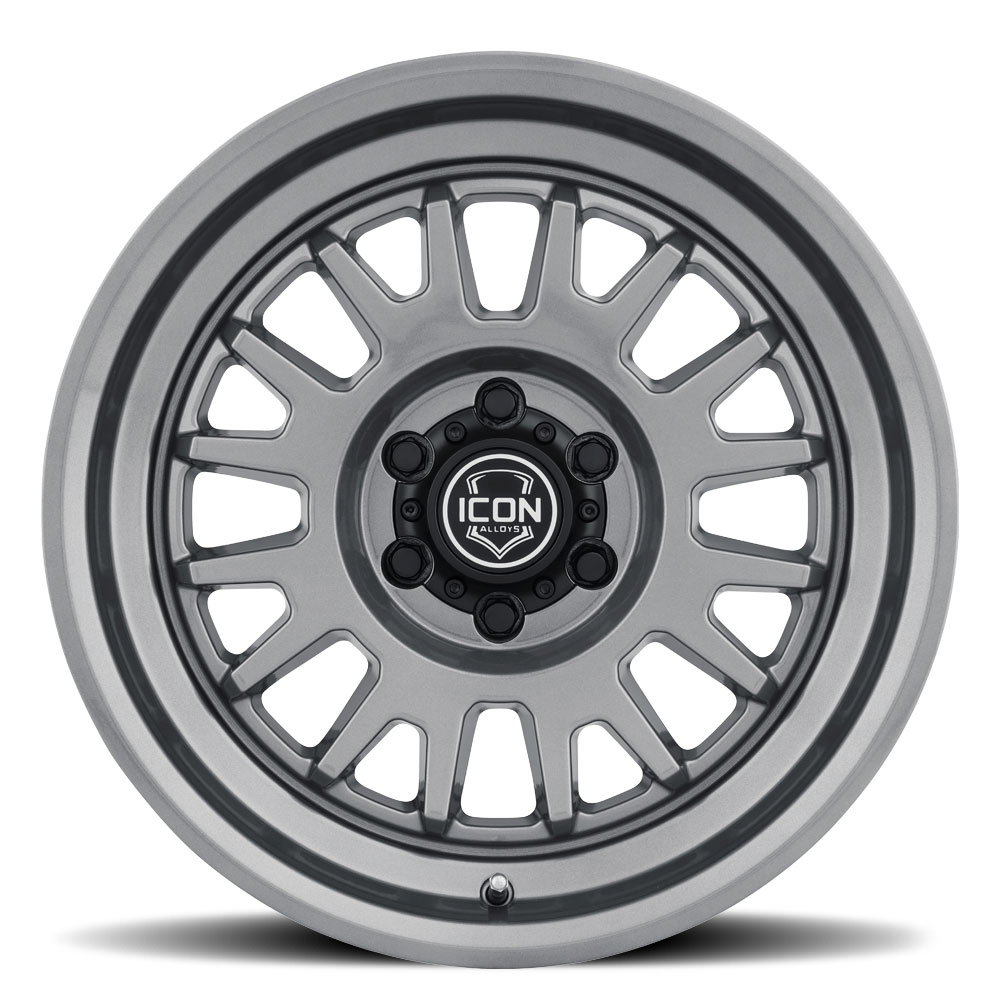

ICON Alloys Anza, Gun Metal, 17 x 8.5 / 6 x 5.5, 0mm Offset, 4.75" BS

Product Details

Taking its name from Southern California's picturesque Anza-Borrego desert, ICON Alloys returns to its roots with the all-new Anza wheel. Featuring a concave profile and deep stepped lip, you will be ready to take on the trails or look good on the streets in unique style.Offered in a 17” diameter, 8.5” width, and multiple offsets, dialing in the Anza for your specific application will be a breeze. Available in the classic Satin Black, a smart Silver Machined, or an aggressive Gloss Gunmetal - there is a finish that has your name on it. Look the part in any situation with the Anza wheel from ICON Alloys.Staying true to the ICON Alloys approach, the Anza has been engineered to maximize caliper clearance and optimize wheel position for un-hindered suspension travel and steering function. Backspace dimensions and wheel offset have been strategically developed to reduce scrub radius, improving all-around handling and ride quality and making a set of these wheels the perfect complement to an ICON Vehicle Dynamics suspension system.

Concave profile with deep stepped lip
17" X 8.5" in 5-lug & 6-lug bolt patterns
Gun metal powder coat finish for sleek looks and corrosion resistance
Application-specific dimensions optimize vehicle dynamics and tire clearance
Reduced unsprung weight and rotating mass improves on and off-road vehicle performance
Aluminum alloy construction provides strength properties that are well suited for off-road use
2750lbs load rating

Technical Notes

TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	ICON Alloys
Prop65 Warning	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes	TECH NOTE: Professional mounting and balancing of an appropriately sized tire prior to installation onto vehicle is recommended.
UPC	00840103426662
Material	Aluminum
Finish	Powdercoated
Color	Gun Metal
Construction	Cast
Backspacing	4.75
Bolt Pattern	6 X 5.5
Center Cap Included	Yes
Diameter	17
Inside Diameter	106.1
Lug Hole Diameter	1.1
Lug Nut Seat Type	Conical
Maximum Load Rating	2750
TPMS Compatible	yes
Width	8.5
Wheel Nuts Included	No
TPMS Included	No
Width	20.00 in
Length	20.00 in
Depth	11.00 in
Weight	30.0000 lb
