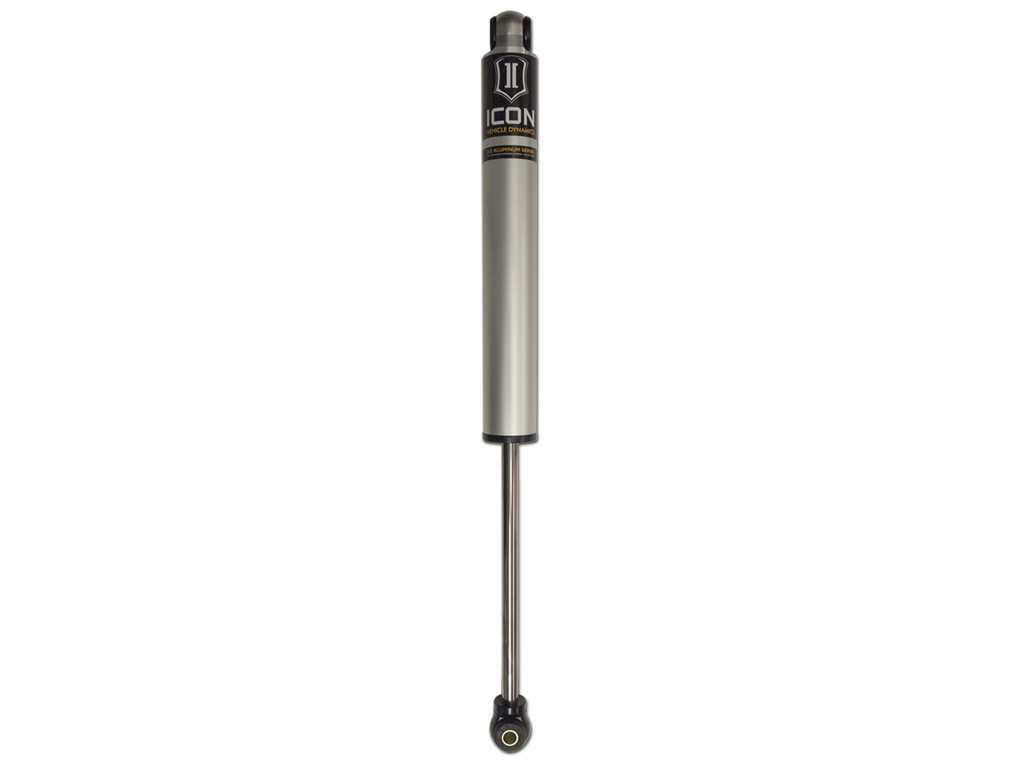

ICON VEHICLE DYNAMICS 09-UP F150 2/4WD 04-08 F150 4WD REAR VS 2.0 IR

Product Details

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

  • Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
  • 100% revalveable
  • Nitrogen charged monotube design with internal reservoir
  • One piece linear/digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
  • 5/8” chrome plated hardened steel shaft resists corrosion and pits
  • 6061 aluminum rod end, top cap, and internals ensure strength and durability
  • Polyurethane bushings, zinc plated sleeves, and forged steel mounting stems for OE factory type fitment
  • 6063 anodized aluminum body and reservoir tubing for superb heat dissipation, excellent corrosion resistance, and high-tech appearance
  • Nitrile rubber top out bumper for noise free operation
  • 100% rebuildable

Technical Notes

  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #129: will not work with factory installed electronically controlled suspension.
  • TECH NOTE: Compatible with 0-1" of rear lift over stock on most F-150 models
  • TECH NOTE: Not compatible with models equipped with BlueCruise
  • TECH NOTE: Will not fit F-150 Raptor

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand ICON Vehicle Dynamics
Prop65 Warning WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Technical Notes
  • APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.
  • APPLICATION NOTE #129: will not work with factory installed electronically controlled suspension.
  • TECH NOTE: Compatible with 0-1" of rear lift over stock on most F-150 models
  • TECH NOTE: Not compatible with models equipped with BlueCruise
  • TECH NOTE: Will not fit F-150 Raptor
UPC 00840103407302
Bushing Material Polyurethane
Bushing Color Black
Material Aluminum
Finish Anodized
Body Diameter 2
Remote Reservoir NO
Color Gray
Adjustable Damping No
Shaft Diameter 0.625
Cylinder Color Gray
Shaft Material Chrome
Cylinder Material Aluminum
External Reservoir No
Service Parts 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Add-On Part 614700 - 2.0 SHOCK BOOT KIT (EACH)
Width 3.00 in
Length 40.00 in
Depth 3.00 in
Weight 4.0000 lb
Brand: ICON Vehicle Dynamics

ICON 2009-2023 Ford F150 2/4WD & 04-08 F150 4WD, Rear 2.0 VS Shock

96518

55 in stock

$199.45
