CR60-3X1104-L

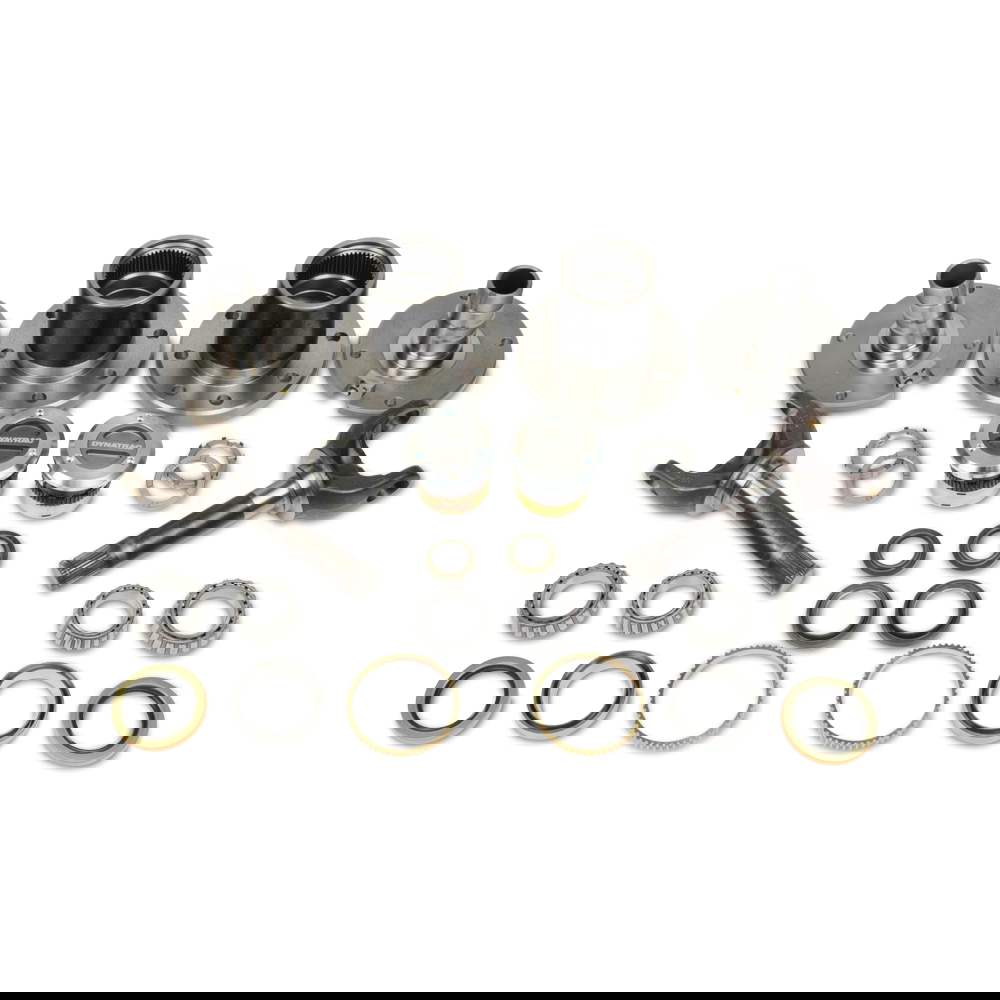

Dynatrac Free-Spin Kit, 2012-2019 Ram 2500/3500, w/DynaLoc Hubs

Product Details

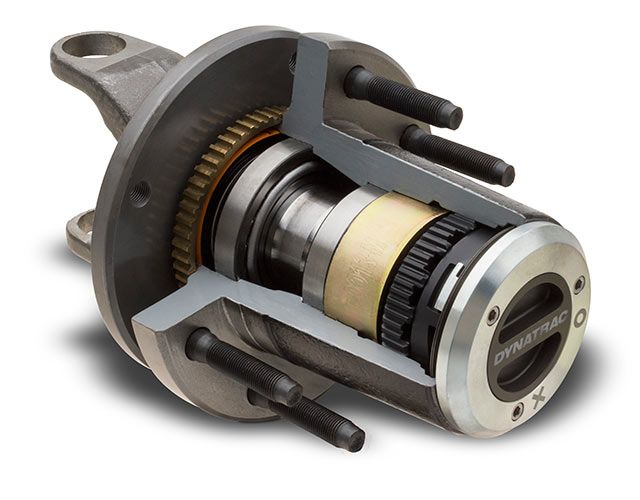

The Dynatrac Free-Spin Heavy-Duty Hub Conversion Kit for 2012-2019 Ram 2500 and 3500 trucks is designed to replace the factory unit bearings with fixed spindles for superior strength and smooth performance. Factory unit bearings are not serviceable, can’t be inspected, and are a known failure point. Kit also includes Dynatrac’s innovative DynaLoc locking hubs that deliver improved locking function, are three times stronger than other locking hubs, and their shorter profile affords better clearance, reducing the chance of hub impact damage.

For 2012-2019 Ram 2500 and 3500
Replaces failure-prone factory unit bearings
35-spline, 1.50-inch outer shafts
Features DynaLoc locking hubs for maximum performance
Strong heat-treated chromoly spindles
Easy to maintain for longer service life
Top-quality bearings reduce wear and increase fuel economy

Technical Notes

Trucks with dual rear wheels will require the use of a special dually wheel adapter; part number AA4DDT. These can be purchased through Arrowcraft (248-280-0210) and have been made to work specifically with Dynatrac’s Free-Spin Kit… Also, this Dynatrac Free-Spin kit will not fit with most 2014-2019 factory Ram wheels. Please click here to download a fitment notification for more information. The issue is the wheels are closed and do not have a removable center cap which is required to allow the hub snout to pass through. The customer must have a wheel with a center-hole or removable center cap. Dynatrac does not recommend modifying any part of the wheel. This will decrease the strength of the wheel and can lead to catastrophic failure. Dynatrac has confirmed the fitment of the following wheels: Ram Power Wagon, 2010-2012 Factory Ram wheels, AEV Ram wheels, BMF Ram wheels.

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Dynatrac
Technical Notes	Trucks with dual rear wheels will require the use of a special dually wheel adapter; part number AA4DDT. These can be purchased through Arrowcraft (248-280-0210) and have been made to work specifically with Dynatrac’s Free-Spin Kit… Also, this Dynatrac Free-Spin kit will not fit with most 2014-2019 factory Ram wheels. Please click here to download a fitment notification for more information. The issue is the wheels are closed and do not have a removable center cap which is required to allow the hub snout to pass through. The customer must have a wheel with a center-hole or removable center cap. Dynatrac does not recommend modifying any part of the wheel. This will decrease the strength of the wheel and can lead to catastrophic failure. Dynatrac has confirmed the fitment of the following wheels: Ram Power Wagon, 2010-2012 Factory Ram wheels, AEV Ram wheels, BMF Ram wheels.
UPC	883584138815
Width	20.00 in
Length	16.00 in
Depth	20.00 in
Weight	100.0000 lb
