CS-D3-BC-CS-1419-D-R2

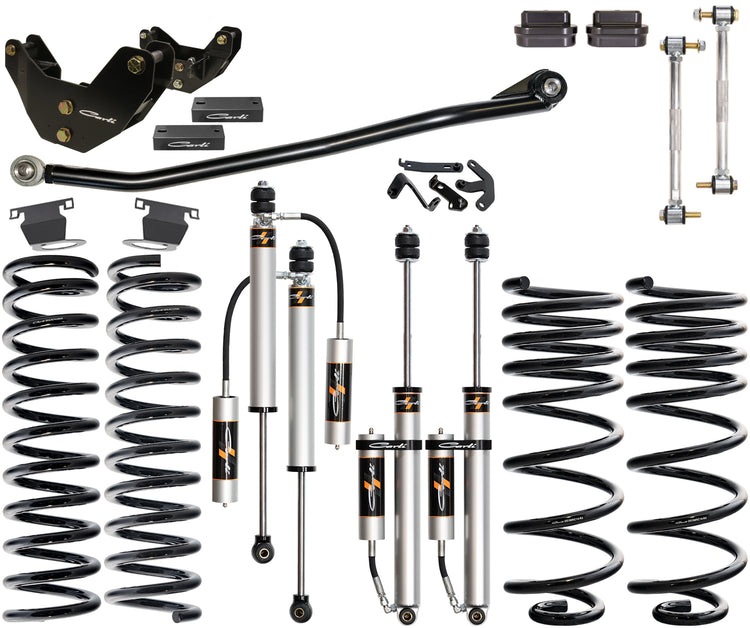

CARLI 14-23 RAM 2500 4X4 DIESEL 3.25" LIFT BACKCOUNTRY SYSTEM R2 COILS

Product Details

The Backcountry System is made for those seeking the best ride on and off-road without breaking the bank; You’re no longer limited to the highway while gravel roads become dull as you can drive them at speed with one hand on the wheel.

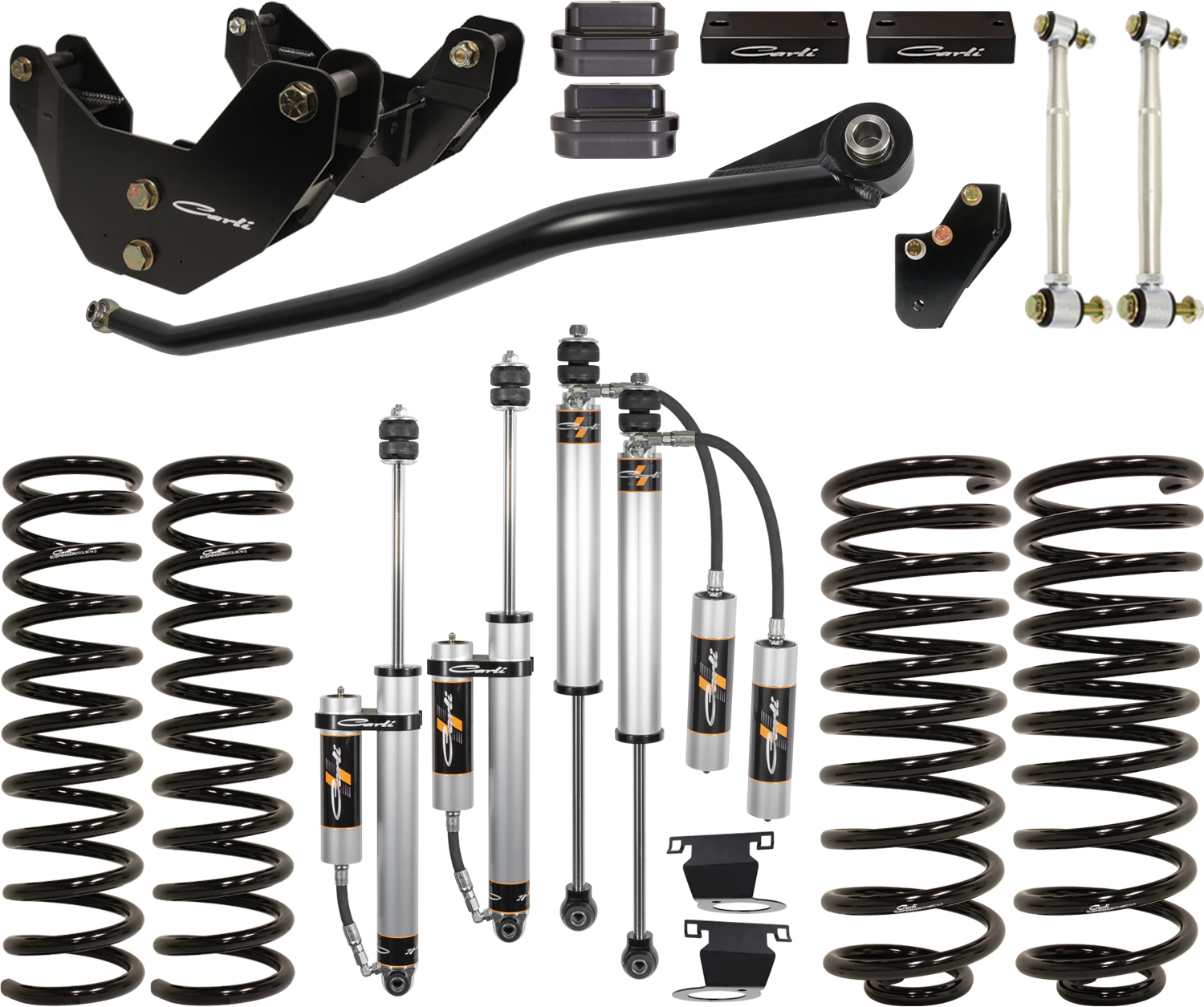

System includes multi rate front coils, rear HD coils, front and rear shock package, radius arm drop brackets, adjustable track bar, front and rear bump stop drops, rear sway bar end links and rear track bar drop.
Increases wheel travel to 9.6" front and 11" rear.
Allows for fitment of 37" tires.
Not compatible with factory rear air ride trucks.
Requires but does not include sway bar option.
Included HD rear coil springs provide 2" of rear lift, giving the truck a slight rake when unloaded and maintain factory payload. Ideal for overlanding setups, tool boxes, ect.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419
Radius Arms: CS-DFRA-14
Steering Stabilizer - High mount: CS-DHMSS-14
Steering Stabilizer - Low mount: CS-DLMSS-14
Ball Joints: CS-DBJP-14
Front Diff Guard: CS-DFDG-14

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 2500 (2014-2023)

Specification

Brand	Carli Suspension
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419 Radius Arms: CS-DFRA-14 Steering Stabilizer - High mount: CS-DHMSS-14 Steering Stabilizer - Low mount: CS-DLMSS-14 Ball Joints: CS-DBJP-14 Front Diff Guard: CS-DFDG-14
UPC	883584152873
ProxyNumber	15287
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	245.0000 lb
