CS-D3-COM-CS-1419-D

CARLI 14-23 RAM 2500 4X4 DIESEL 3.25" LIFT COMMUTER SYSTEM

Product Details

The Commuter 2.0 system is designed for the customer seeking the best on-road ride quality on a budget. Improve the ride of your daily driver with this entry level system built for comfort while keeping your wallet in mind.

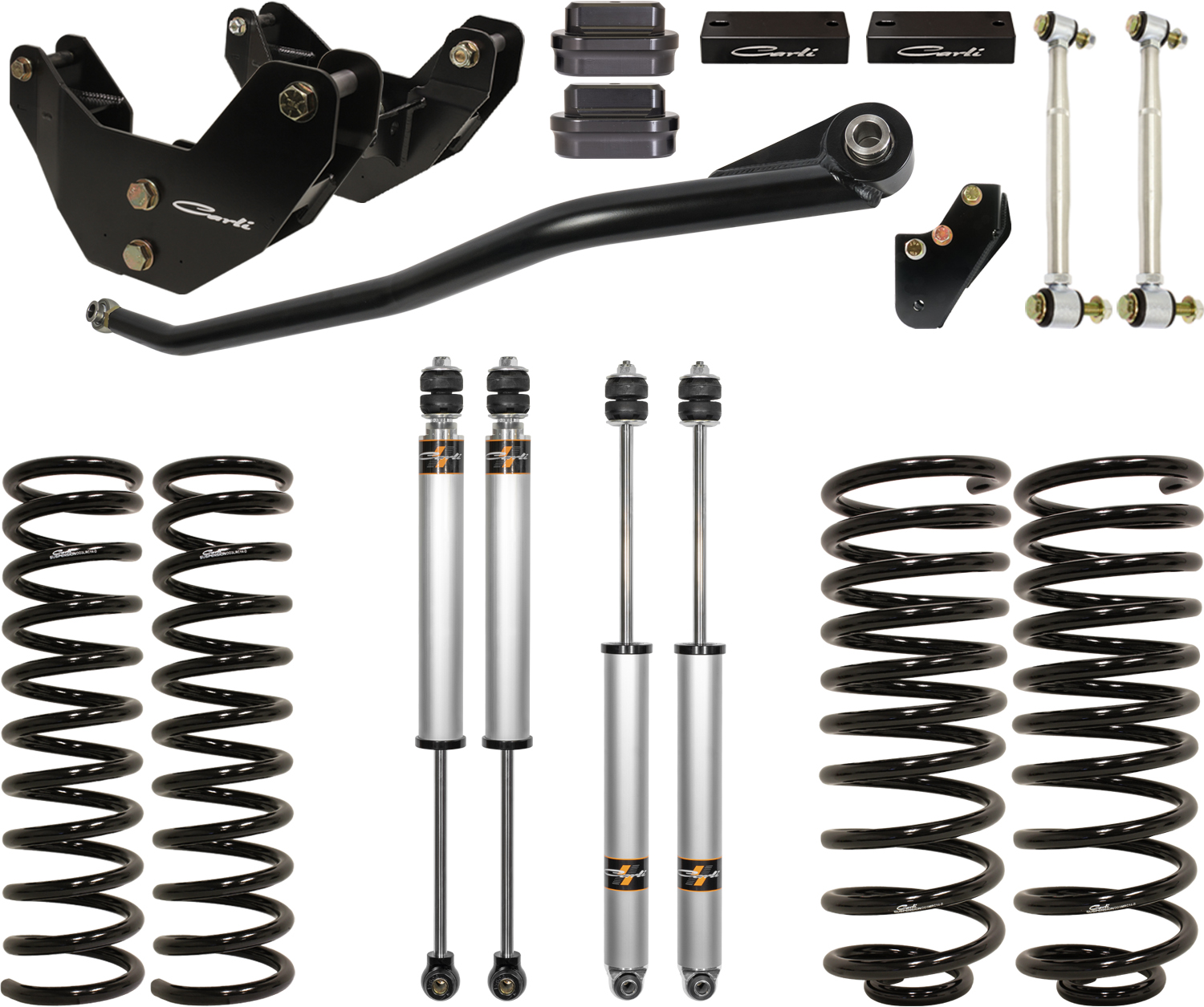

System includes multi rate front and rear coils, front and rear shock package, radius arm drop brackets, adjustable track bar, front and rear bump stop drops, rear sway bar end links and rear track bar drop.
Increases wheel travel to 10" front and 11" rear.
Allows for fitment of 37" tires.
Not compatible with factory rear air ride trucks.
Requires but does not include sway bar option.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419
Radius Arms: CS-DFRA-14
Steering Stabilizer - High mount: CS-DHMSS-14
Steering Stabilizer - Low mount: CS-DLMSS-14
Ball Joints: CS-DBJP-14
Front Diff Guard: CS-DFDG-14

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 2500 (2014-2023)

Specification

Brand	Carli Suspension
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419 Radius Arms: CS-DFRA-14 Steering Stabilizer - High mount: CS-DHMSS-14 Steering Stabilizer - Low mount: CS-DLMSS-14 Ball Joints: CS-DBJP-14 Front Diff Guard: CS-DFDG-14
UPC	883584152842
ProxyNumber	15284
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	229.0000 lb
