CS-DD30-6-03-D

Carli Dominator 3.0 System, Base, 6” Lift, 2003-09 Ram 2500/3500, Diesel

Product Details

Carli Dominator: The ultimate no compromise, utilitarian suspension system. Carli King 3.0” shocks, custom-tuned and ready for any obstacles. This system can handle the toughest of terrain while still getting you around town in comfort.

The Carli 6" Dominator system utilizes Carli-tuned King 3.0 shocks paired with a fabricated radius arm system that provides fantastic on-road ride and superior off road performance.

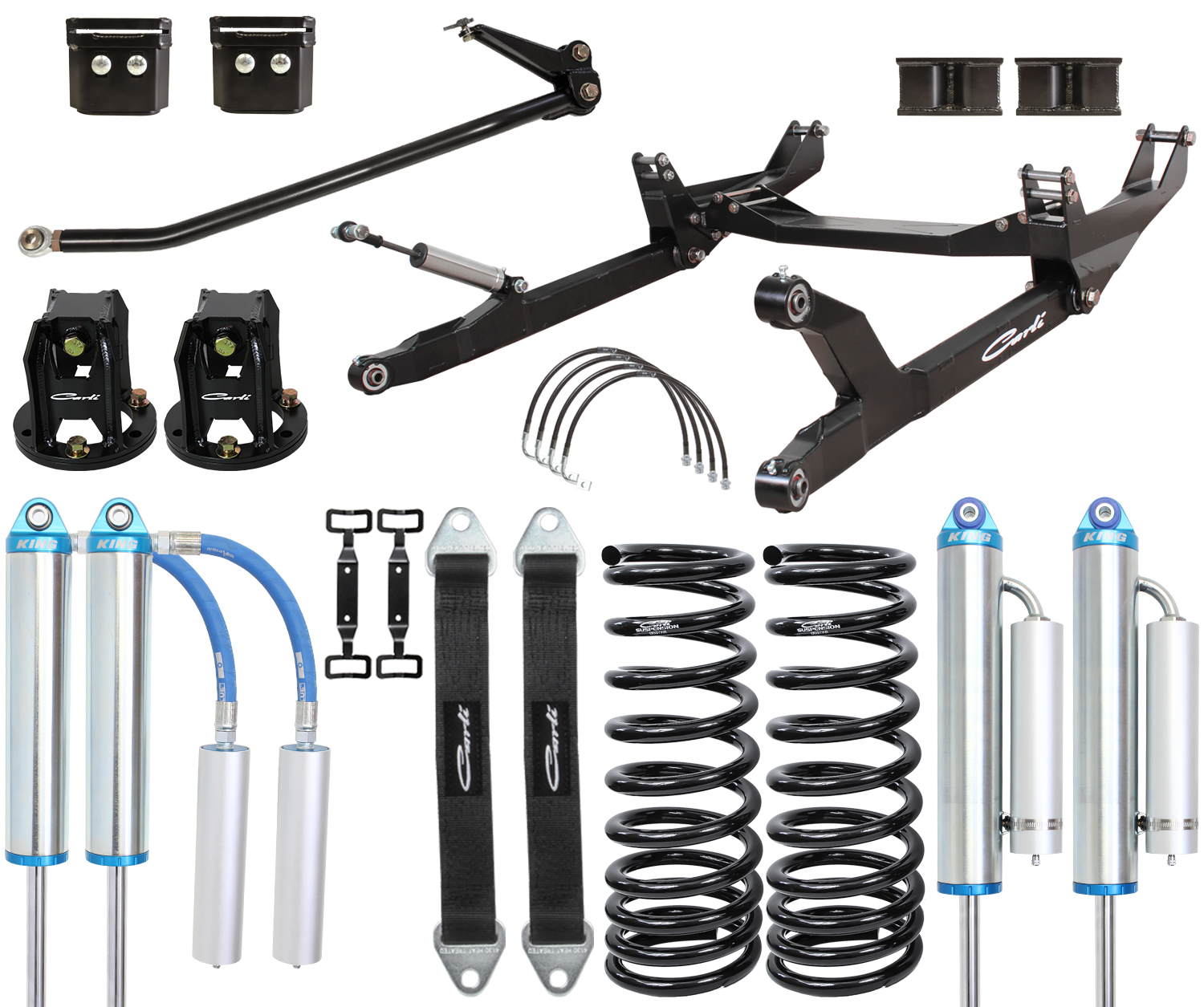

System includes multi rate front springs, front and rear shock package, fabricated radius arm system, fabricated shock towers, brake lines, adjustable track bar, front and rear bump drops and track bar drop bracket.
Included rear crossmember gussett requires welding.
Allows for 12" of front suspension travel and 12.5" rear.
Requires but does not include rear leaf spring option and sway bar option.

Technical Notes

Optional Parts to support this system:
Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
Carrier Bearing Drop: CS-CARRIERDROP-D
Axle Truss: CS-AAMTRUSS
Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
Pittman Arm: FTS-93012,
Leaf Spring Options: CS-DFSP-6-10-D
Rear Shock Mount - Driver: CS-DRSMD
Rear Shock Mount - Passenger: CS-DRSMP
Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
Airbag Spacer: CS-AIRBAGSPCR
Hydro Bump Kit - Front: CS-DHYDRO-F-6

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Optional Parts to support this system: Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T Carrier Bearing Drop: CS-CARRIERDROP-D Axle Truss: CS-AAMTRUSS Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10, Pittman Arm: FTS-93012, Leaf Spring Options: CS-DFSP-6-10-D Rear Shock Mount - Driver: CS-DRSMD Rear Shock Mount - Passenger: CS-DRSMP Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D Airbag Spacer: CS-AIRBAGSPCR Hydro Bump Kit - Front: CS-DHYDRO-F-6
UPC	883584146681
ProxyNumber	14668
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	461.0000 lb
