CS-DPER25-03-D

Carli Performance 2.5 Leveling, 3” Lift, 03-09 Ram 2500/3500, Diesel, Long Arm

Product Details

The Pintop Long Arm is the ultimate system from which every ram owner could benefit. Much more off road capability while still gaining on-road ride and a huge increase in articulation and travel.

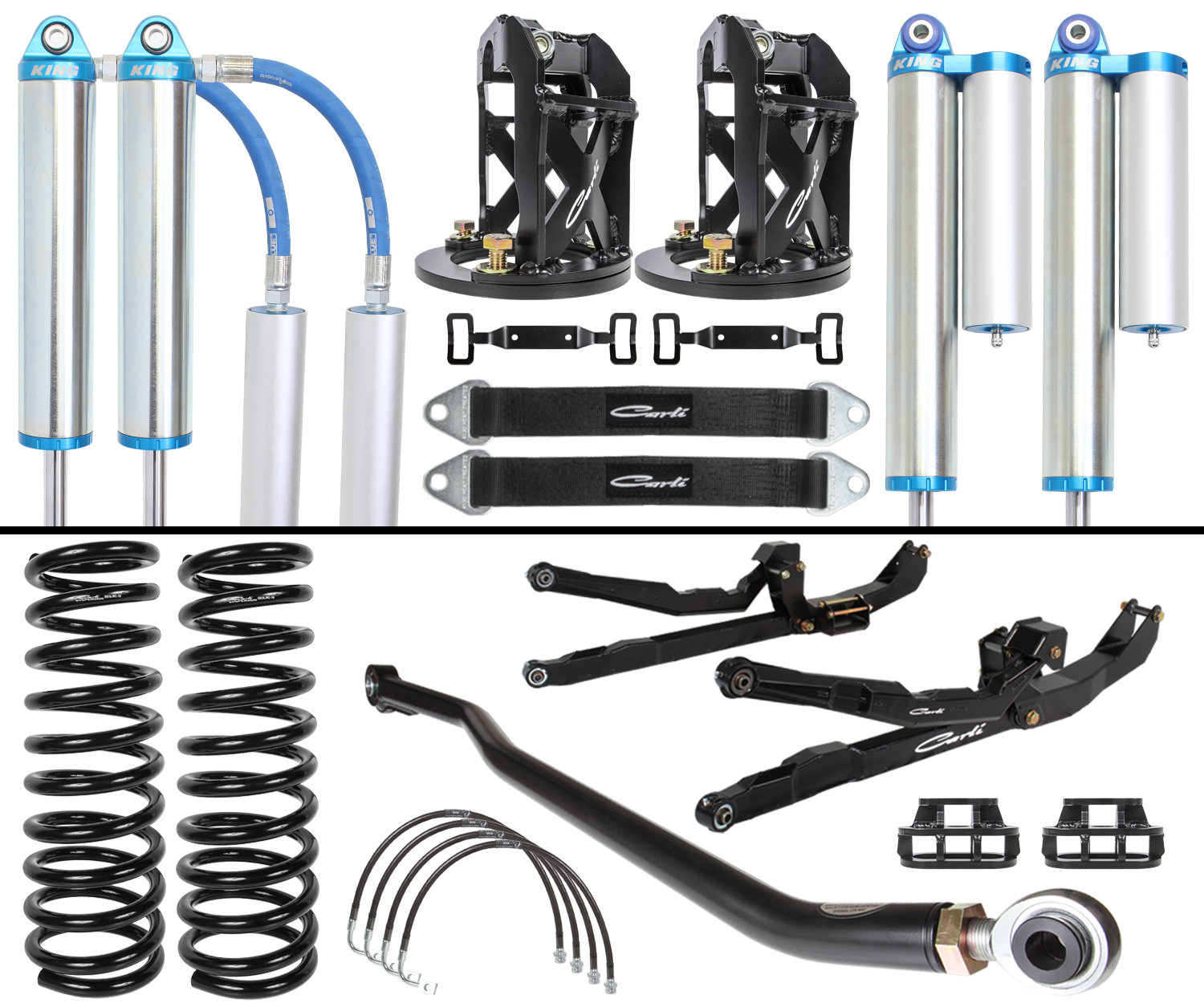

System Includes front and rear shock package, long arm system, front bump drops, braided brake lines, multi rate coil springs, fabricated shock towers, and adjustable track bar.
The Fabricated long arm system included in this kit is capable of 14+ inches of travel and are 50% longer than factory cotrol armsand feature fully serviceable joints resulting in zero-bind articulation
Truck wil sit 2.5-3" higher (year/cab coniguration dependent) and wheel travel will be increased by a whopping 70%.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
This system requires Torsion Sway Bar and Full Progressive Leaf Springs to properly function.

Technical Notes

Optional Parts to support this system:
Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
Carrier Bearing Drop: CS-CARRIERDROP-D
Axle Truss: CS-AAMTRUSS
Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
Pittman Arm: FTS-93012,
Leaf Spring Options: CS-DFSP-6-10-D
Rear Shock Mount - Driver: CS-DRSMD
Rear Shock Mount - Passenger: CS-DRSMP
Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
Airbag Spacer: CS-AIRBAGSPCR
Hydro Bump Kit - Front: CS-DHYDRO-F-6

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Optional Parts to support this system: Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T Carrier Bearing Drop: CS-CARRIERDROP-D Axle Truss: CS-AAMTRUSS Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10, Pittman Arm: FTS-93012, Leaf Spring Options: CS-DFSP-6-10-D Rear Shock Mount - Driver: CS-DRSMD Rear Shock Mount - Passenger: CS-DRSMP Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D Airbag Spacer: CS-AIRBAGSPCR Hydro Bump Kit - Front: CS-DHYDRO-F-6
UPC	883584150619
ProxyNumber	15061
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	409.0000 lb
