CS-DPT25-03-D

Carli Pintop 2.5 Leveling System, Base, 3” Lift, 2003-09 Ram 2500/3500, Diesel

Product Details

Carli Pintop Systems provide a moderate lift and the added confidence of larger diameter shocks. They are a perfect blend of a comfortable on-road ride with all the harsh edges rounded and confident light- to medium-duty off-roading. The system features Carli-specific, blueprinted, King 2.5 shocks on all four corners. With a 2.5-inch diameter shock body these Pintop shocks delver 55% more piston surface area than a 2.0-inch shock. Carli engineers have designed a custom piston to produce proper base flow rates and optimize performance in robust ¾-ton and one-ton platforms. The Carli-spec shocks also feature shafts machined and polished from a solid piece of 17-4 stainless. The system delivers a dramatic increase is travel and the included adjustable track bar adds stability countering the sloppiness that can lead to Death Wobble. The truck will sit higher in the front for a level look and have more wheel travel thanks to the lighter rate Carli coil springs.

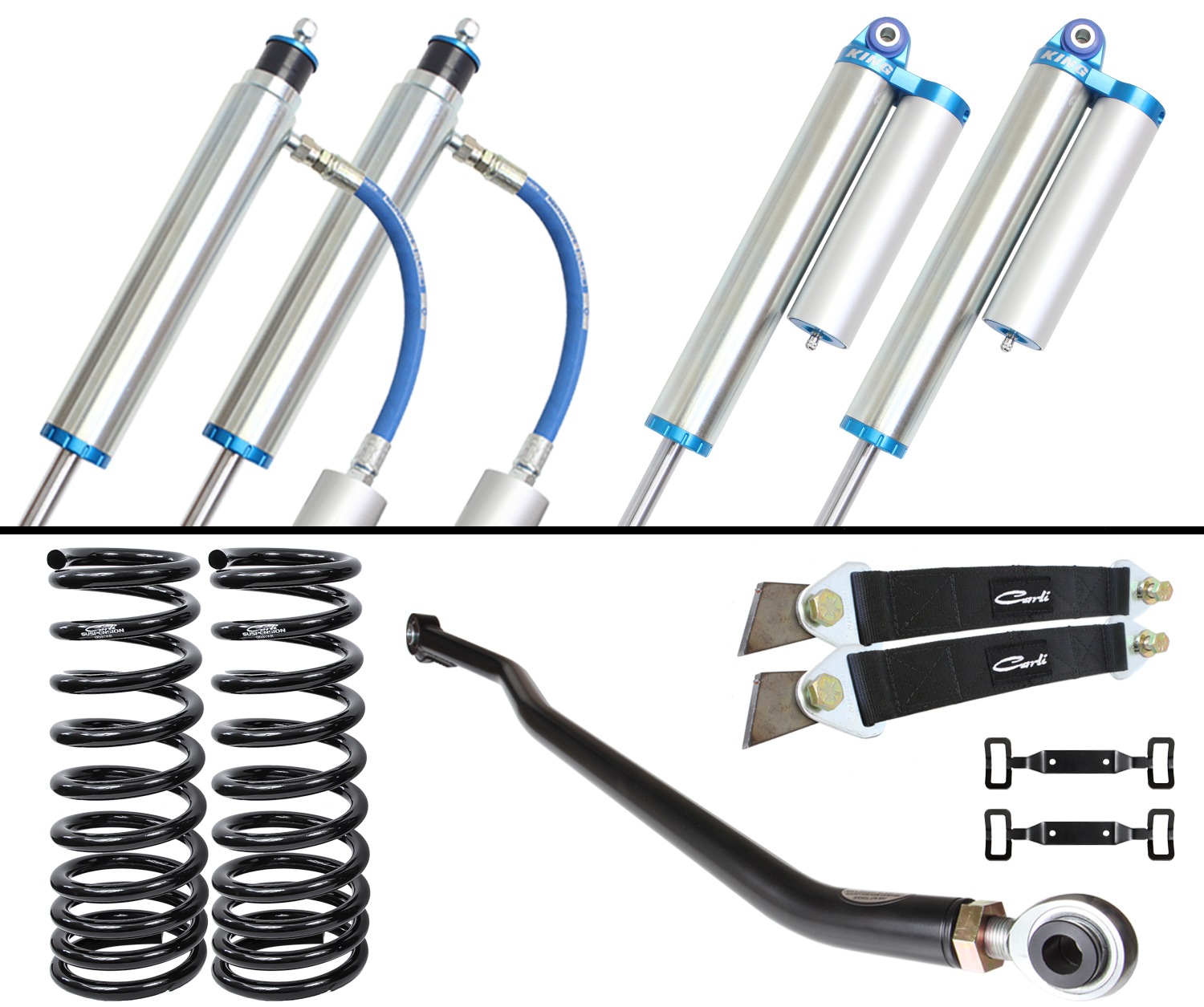

System includes Multi-rate front coil springs, front and rear shock package, and adjustable track bar.
Truck wil sit 2.5-3" higher (year/cab coniguration dependent) and wheel travel will be increased by 50% thanks to the taller, lighter rate coil springs.
Fits up to 37" tires with ease for a more aggresize appearance and better offroad performance.
Requires but does not include leaf spring option and sway bar option.

Technical Notes

Optional Parts to support this system:
Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
Carrier Bearing Drop: CS-CARRIERDROP-D
Axle Truss: CS-AAMTRUSS
Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
Pittman Arm: FTS-93012,
Leaf Spring Options: CS-DFSP-6-10-D
Rear Shock Mount - Driver: CS-DRSMD
Rear Shock Mount - Passenger: CS-DRSMP
Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
Airbag Spacer: CS-AIRBAGSPCR
Hydro Bump Kit - Front: CS-DHYDRO-F-6

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Optional Parts to support this system: Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T Carrier Bearing Drop: CS-CARRIERDROP-D Axle Truss: CS-AAMTRUSS Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10, Pittman Arm: FTS-93012, Leaf Spring Options: CS-DFSP-6-10-D Rear Shock Mount - Driver: CS-DRSMD Rear Shock Mount - Passenger: CS-DRSMP Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D Airbag Spacer: CS-AIRBAGSPCR Hydro Bump Kit - Front: CS-DHYDRO-F-6
UPC	883584150787
ProxyNumber	15078
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	173.0000 lb
