CS-DPT25-19-H

Carli Pintop 2.5 Leveling System, Base, 3” Lift, 2019-22 Ram 2500, Gas

Product Details

Carli's most popular system, The pintop kit boasts Remote Reservoir King 2.5" shocks. Designed and tuned in house for the customer looking for substantial on and offroad performance improvement.

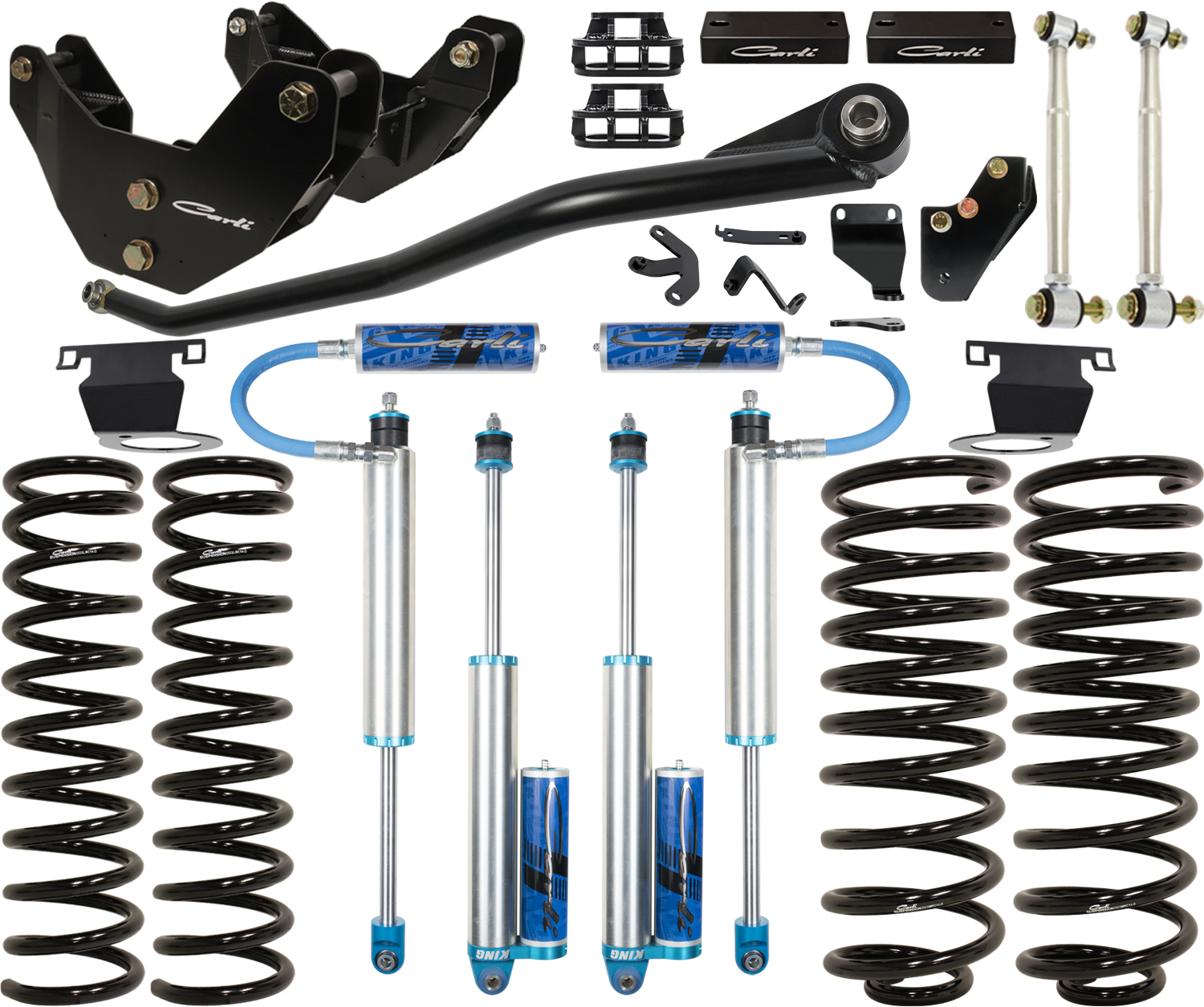

System includes multi rate front and rear coils, front and rear shock package, radius arm drop brackets, adjustable track bar, front and rear bump stop drops, rear sway bar end links and rear track bar drop.
Increases wheel travel to 9.3" front and 11" rear.
Allows for fitment of 37" tires.
Not compatible with factory rear air ride trucks.
Requires but does not include rear lift option and sway bar option.

Technical Notes

Required and Optional Parts to support this system:
Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419
Radius Arms: CS-DFRA-14
Steering Stabilizer - High mount: CS-DHMSS-14
Steering Stabilizer - Low mount: CS-DLMSS-14
Ball Joints: CS-DBJP-14
Front Diff Guard: CS-DFDG-14

Warranty Information

Warranty information unavailable

Compatible Make / Model

Ram 2500 (2019-2024)

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Required and Optional Parts to support this system: Sway Bar Options (REQUIRED): CS-DSBD-14 or CS-DTSB3-1419 Radius Arms: CS-DFRA-14 Steering Stabilizer - High mount: CS-DHMSS-14 Steering Stabilizer - Low mount: CS-DLMSS-14 Ball Joints: CS-DBJP-14 Front Diff Guard: CS-DFDG-14
UPC	883584147848
ProxyNumber	14784
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	270.0000 lb
