CS-DPT25-6-03-D

Carli Pintop 2.5 System, Base, 6” Lift, 2003-09 Ram 2500/3500, Diesel, 4x4

Product Details

Carli's most popular system but double the size. The 6" pintop kit boasts Remote Reservoir King 2.5" shocks designed and tuned in house for the customer looking for substantial on and offroad performance in a 6" format.

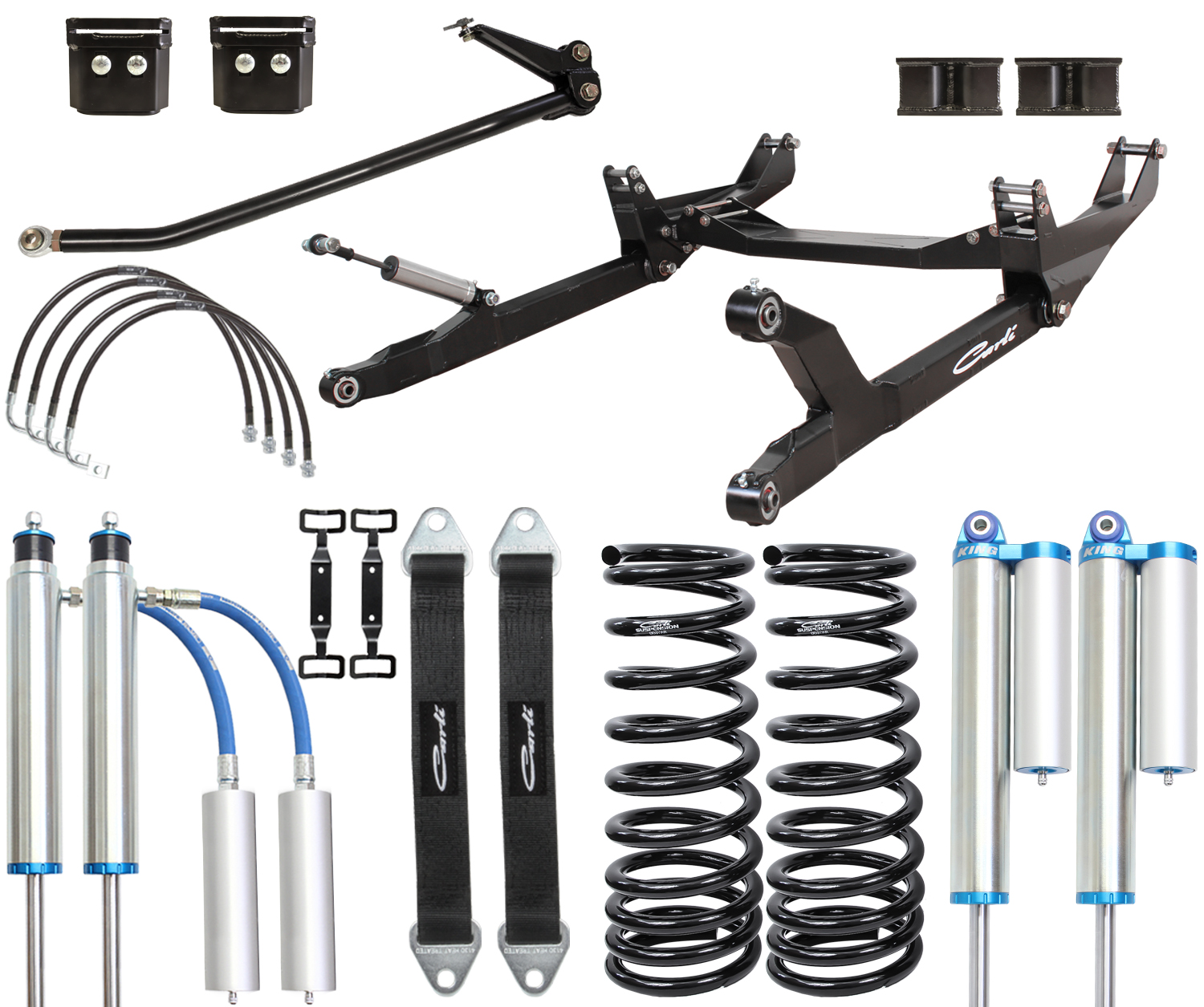

System includes multi rate front springs, front and rear shock package, fabricated radius arm system, fabricated shock towers, brake lines, adjustable track bar, front and rear bump drops and track bar drop bracket.
Allows for 12" of front suspension travel and 13" rear.
Allows for fitment of 37" tires.
Requires but does not include rear leaf spring option and sway bar option.

Technical Notes

Optional Parts to support this system:
Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T
Carrier Bearing Drop: CS-CARRIERDROP-D
Axle Truss: CS-AAMTRUSS
Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10,
Pittman Arm: FTS-93012,
Leaf Spring Options: CS-DFSP-6-10-D
Rear Shock Mount - Driver: CS-DRSMD
Rear Shock Mount - Passenger: CS-DRSMP
Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D
Airbag Spacer: CS-AIRBAGSPCR
Hydro Bump Kit - Front: CS-DHYDRO-F-6

Warranty Information

Warranty information unavailable

Compatible Make / Model

Specification

Brand	Carli Suspension
Prop65 Warning	WARNING: This product can expose you to chemicals including arsenic, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Technical Notes	Optional Parts to support this system: Steering Stabilizer: CS-DSSOSK-T or CS-DHMSS-03-T or CS-DLMSS-T Carrier Bearing Drop: CS-CARRIERDROP-D Axle Truss: CS-AAMTRUSS Sway Bar Options: CS-DTSB6-03 or CS-DEL6-12 or CS-DEL6-10, Pittman Arm: FTS-93012, Leaf Spring Options: CS-DFSP-6-10-D Rear Shock Mount - Driver: CS-DRSMD Rear Shock Mount - Passenger: CS-DRSMP Long Travel Bags: CS-DLTB-03-4.0 or CS-DLTB-12-D Airbag Spacer: CS-AIRBAGSPCR Hydro Bump Kit - Front: CS-DHYDRO-F-6
UPC	883584151074
ProxyNumber	15107
Width	13.00 in
Length	12.00 in
Depth	37.00 in
Weight	394.0000 lb
